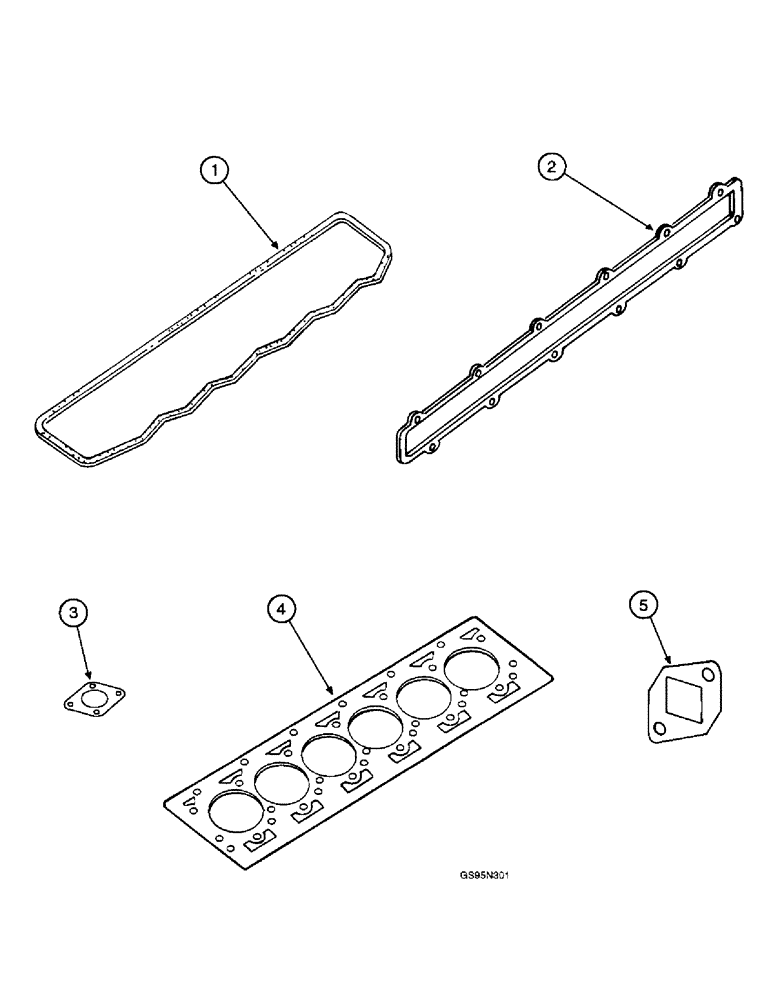

Запчасти Case IH D-358 (6-022) - BASIC ENGINE, SHORT BLOCK ENGINE, SERVICE KITS

3218326R92

ENGINE

- basic, used with 886 tractors, no longer available

1шт.

3228100R91

ENGINE ASSEMBLY

ENGINE - basic, used with 1400 cotton harvesters, consists of all engine parts except alternator-generator, fan belt, fan blade, muffler and exhaust pipe, no longer available

1шт.

3228110R91

ENGINE ASSEMBLY

ENGINE - basic, used with 1420 combines with engine serial numbers prior to 65000, no longer available

1шт.

3228420R92

ENGINE ASSEMBLY

ENGINE - basic, used with 1420 combines with engine serial numbers 65000 and above, Consists of all engine parts except alternator-generator, fan belt, fan blades, muffler and exhaust pipe, no longer available

1шт.

3228210R91

ENGINE - basic, used with 786 tractors, no longer available

1шт.

3228350R92

ENGINE

- basic, used with 3288 tractors, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe, no longer available

1шт.

3228360R92

ENGINE ASSEMBLY

ENGINE - basic, used with 3088 tractors, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe, no longer available

1шт.

3144506R93

SKELETON ENGINE

ENGINE - block, short, consists of: camshaft, connecting rods and bearings, crankcase, crankshaft and bearings, sleeves, pistons, pins and rings, valve tappets

1шт.

3136801R99

GASKET KIT,Cylinder Head

KIT - cylinder head gasket, Includes: O-Ring, Ring, Ref. 1 - 5 & Valve Stem Seal Kit

1шт.

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

6шт.

3053133R1

SEALING RING,M8 x 11.5 x 1

RING - gasket, vent screw, packing

12шт.

1

3138688R2

GASKET

- valve housing cover

1шт.

2

3055399R2

MANIFOLD GASKET,1.5mm Thk

- intake manifold

1шт.

3055306R3

GASKET,1.5mm Thk

- manifold, water collecting pipe

6шт.

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

- disc-valve housing cover

4шт.

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING - packing

6шт.

3

3059672R2

GASKET

- water outlet, thermostat

1шт.

3132143R2

GASKET,1mm Thk

- flange, water outlet, thermostat

1шт.

4

3228019R2

CYLINDER HEAD GASKET

GASKET - cylinder head

1шт.

5

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

6шт.

3218399R91

GASKET KIT

KIT - valve stem seal

2шт.

3144657R91

PACKAGE

KIT - fuel feed line, used with 886 tractors and 1400 cotton harvesters, Includes: Parts Listed Below

1шт.

NSS

NOT SOLD SEPARAT

TUBE - fuel feed line, order kit 3144657R91

1шт.

NSS

NOT SOLD SEPARAT

HOSE - fuel feed line, order kit 3144657R91

1шт.

NSS

NOT SOLD SEPARAT

CLAMP - fuel feed line, order kit 3144657R91

1шт.

NSS

NOT SOLD SEPARAT

CLIP - fuel feed line, order kit 3144657R91

1шт.

NSS

NOT SOLD SEPARAT

PLATE - fuel feed line, order kit 3144657R91

1шт.

NSS

NOT SOLD SEPARAT

BOLT - fuel feed line, order kit 3144657R91

1шт.

NSS

NOT SOLD SEPARAT

RING - fuel feed line, order kit 3144657R91

1шт.
