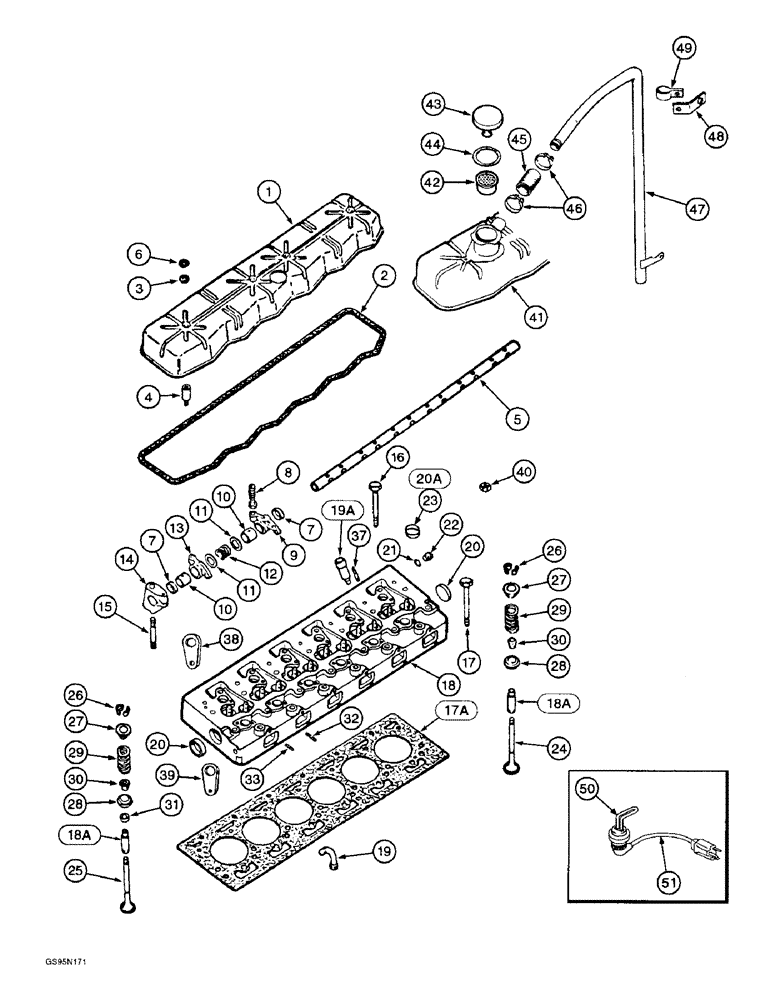

Запчасти Case IH D-358 (6-018) - CYLINDER HEAD AND RELATED PARTS / ENGINE BLOCK HEATER

1

3132840R91

COVER

- valve housing, used with all machines except 3088 and 3288 tractors

1шт.

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch (Replaces bolt 187953)

4шт.

2

3138688R2

GASKET

- valve housing cover (Replaces gasket 3055186R1)

1шт.

3

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

- valve housing cover bolt

4шт.

4

3132764R1

ADAPTER

- valve housing cover, used only with cylinder heads 3055050R1, 3055050R2, 3055656R1 and 3055656R2

4шт.

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch (Replaces screw 426444)

4шт.

5

3055071R31

SHAFT

- rocker arm

1шт.

933565R1

PLUG,M14, Conical

- cup, expansion

2шт.

6

3138637R1

CUP WASHER

WASHER - valve housing cover (Replaces washer 3055579R1)

4шт.

7

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

- spacer, distance

11шт.

8

3132137R1

ADJUSTMENT SCREW

Rocker arm

12шт.

9

NSS

NOT SOLD SEPARAT

ARM - intake rocker, order kit 3132292R92

6шт.

Caution - for use only where piston protrusion is less than .022 inch.

1шт.

10

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

- rocker arm, used only with arms having bushings

12шт.

11

3055669R1

THRUST WASHER

- thrust, rocker arm

12шт.

12

3055075R2

SPRING

- rocker arm

6шт.

13

NSS

NOT SOLD SEPARAT

ARM - exhaust rocker, order kit 3132292R92

6шт.

14

3055077R6

SUPPORT

BRACKET - rocker arm shaft

7шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

7шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch (Replaces bolt 179822)

7шт.

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch (Replaces bolt 179894)

7шт.

15

3055220R1

STUD,1/2" - 20 x 3.18"

- rocker shaft bracket, order bolt 413-524 above

7шт.

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF (Replaces nut 103028)

7шт.

16

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

- hex, 9/16 NC x 5 inch (Replaces bolt 3132804R2)

12шт.

17

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

BOLT - hex, 9/16 NC x 5-3/4 inch (Replaces bolt 3132705R2)

14шт.

17a

3228019R2

CYLINDER HEAD GASKET

GASKET - cylinder head (Replaces gaskets 3144182R2)

1шт.

17a

247989A1

GASKET KIT

KIT - cylinder head gasket, 0.25 mm thinner than standard head gasket, includes service bulletin

1шт.

Caution - for use only where piston protrusion is less than .022 inch.

1шт.

3055655R95

HEAD

ASSEMBLY - cylinder, used with 826, 2826, 786, 886, 3088 and 3288 tractors, 1420 combines with engine serial numbers prior to 65000, Includes: Ref. 18 - 20A

1шт.

3055368R98

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, used with 1400 cotton pickers, 1420 combines with engine serial number 65000 and after, Includes: Ref. 18 - 20A

1шт.

18

NSS

NOT SOLD SEPARAT

HEAD - cylinder, order head assembly

1шт.

18a

129322A1

GUIDE

- valve stem (Replaces guide 3055022R2)

12шт.

19

3055224R11

CINTRE

PIPE - cooling

6шт.

19a

3055344R1

SLEEVE

INSERT - nozzle holder, used with head assembly 3055655R95

6шт.

19a

3132025R1

INSERT

- nozzle holder, used with head assembly 3055368R98

6шт.

20

934003R1

PLUG,M52, Conical

- expansion, 2.05 inch, engine serial number 018259 and above

2шт.

20

933574R1

PLUG,M50, Conical

- expansion, 1.97 inch, engine serial numbers prior to 018259

2шт.

20a

30591R1

PLUG,M25, Tapered

- cup, expansion 25 mm, used only with cylinder heads 3055050R3 and 3055656R3 (Replaces plug 933537R1)

6шт.

21

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

- Packing, Used with 826 and 2826 tractors M10 x 13.5 x 1

1шт.

21

718743R1

SEALING RING,M10 x 16 x 1

Ring, Packing (0.394 x 0.630 x 0.039"), Used with all except 826 and 2826 tractors M10 x 16 x 1

1шт.

3132292R92

ROCKER

KIT - rocker arm, Includes: Ref. 13

1шт.

22

934259R1

PLUG,Hex, M10 x 1

Filler and drain (Replaces plug 933127R1) Hex, M10 x 1

1шт.

23

933573R1

PLUG,M32, Tapered

- expansion, 32 mm (Replaces plug 933750R1)

6шт.

23

934804R1

PLUG,M34, Conical

- expansion 34 mm, used only with cylinder heads 3055050R1, 3055050R2, 3055656R1 and 3055656R2

1шт.

24

3055055R2

OVERSIZE INLET VALVE

VALVE - intake

6шт.

25

3055056R2

STD EXHAUST VALVE

VALVE - exhaust (Replaces valve 3059459R1)

6шт.

26

3055057R91

ROCKER ARM COTTER

LOCK - valve spring

24шт.

27

3055058R2

SPRING CUP

CAP - valve spring retainer

12шт.

28

3055059R91

CAP

ROTATOR - valve

12шт.

29

3055060R1

SPRING

- valve, used with 826, 2826, 786, 886, 3088 and 3288 tractors

12шт.

29

3136000R1

VALVE SPRING

SPRING - valve, used with 1400 cotton harvesters, 1420 combines

12шт.

30

3218399R91

GASKET KIT

KIT - valve stem seal

2шт.

3132420R1

SLEEVE

- valve stem, no longer available

1шт.

31

3132361R1

INSERT

- exhaust valve seat, 0.15 mm oversize

6шт.

31

3132362R1

VALVE SEAT

INSERT - exhaust valve seat, 0.40 mm oversize

6шт.

32

3228189R1

STUD

- exhaust manifold (Replaces stud 3055663R1)

12шт.

33

3055221R1

STUD

- water collecting pipe, used only with cylinder heads 3055050R1, 3055656R1 and 3055656R2

12шт.

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF (Replaces nut 103025)

12шт.

37

3055412R1

STUD

- nozzler holder

12шт.

38

3055369R1

PLATE

SHACKLE - engine mounting, right-hand

1шт.

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

(Replaces bolt 271604) Hex, 3/4"-10 x 1 1/8", G5

1шт.

39

3055370R1

STIRRUP

SHACKLE - engine mounting, front

1шт.

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

(Replaces bolt 271604) Hex, 3/4"-10 x 1 1/8", G5

1шт.

41

3228107R1

LID

COVER - valve housing, used with 3088 and 3288 tractors

1шт.

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch (Replaces bolt 187953)

4шт.

42

3136336R1

FILTER

INSERT - strainer, breather, used with 3088 and 3288 tractors

1шт.

43

3136337R91

COVER

CAP - oil fill, breather, used with 3088 and 3288 tractors

1шт.

44

3136338R1

GASKET,45mm ID x 68mm OD x 2.3mm Thk

- breather cap, used with 3088 and 3288 tractors

1шт.

45

3132186R1

HOSE,25.00 mm ID x 60.00 mm

- Breather, Connecting, Used with 3088 and 3288 tractors 25.00 mm ID x 60.00 mm

1шт.

46

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Used with 3088 and 3288 tractors (Replaces clamps 3144978R1 and 755023R91) #24, 1.06/2.00 Type F Worm

2шт.

47

3228434R1

BREATHER

TUBE - breather, used with 3088 and 3288 tractors

1шт.

48

3228436R1

STAY

SUPPORT - breather tube, used with 3088 and 3288 tractors

1шт.

49

3228112R1

CLAMP

- breather tube, used with 3088 and 3288 tractors

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

1шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

1шт.

179900

BOLT,Hex, 9/16" - 12 x 3/4", Gr 5

- hex, 9/16 NC x 3/4 inch

1шт.

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, (Replaces washer 103324) 9/16"

1шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

1шт.

50

130085C91

PACKAGE

HEATER - engine block, 115 volt, used with 826, 886, 3088 and 3288 tractors; 1400 cotton harvesters

1шт.

51

A44813

CABLE EXTENSION

CABLE - engine block heater, 12 inch (305 mm) long (Replaces cable 71150C1)

1шт.

A44813 is 1ft. long. For 6ft. long cord, order J905113 or 196466A1. 4/12/02 CJK-TSG

1шт.

829-1410

NUT,M10 x 1.5, Cl 10.9

Adjusting, Rocker Arm M10, Cl 10

12шт.
