Запчасти Case IH D-358 (6-016) - CAMSHAFT AND RELATED PARTS

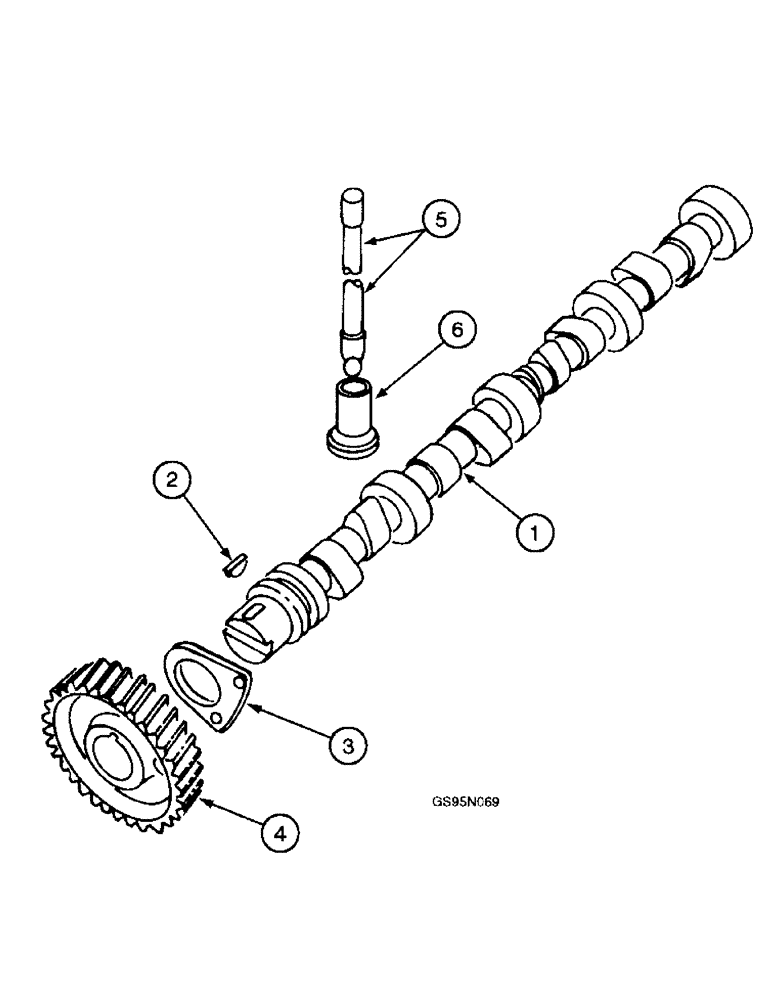

Схема запчастей Case IH D-358 - (6-016) - CAMSHAFT AND RELATED PARTS
4
5
6
1
3
2

Артикул

Название

Примечание

Количество

1

3228253R1

CAMSHAFT

- engine (Replaces camshaft 3055047R1)

1шт.

2

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

(No. 807) (Replaces keys 112139 and 124551) #A, 1/4" x 7/8", HT

1шт.

3

3218896R1

PLATE

- thrust, camshaft, no longer available, order plate 3055051R2

1шт.

3

3055051R2

PLATE

- camshaft thrust

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

2шт.

4

3055176R1

PINION

GEAR - camshaft, 66 teeth

1шт.

5

3144341R1

PUSH ROD

ROD - valve push (Replaces push rod 3055054R92)

12шт.

6

3055052R1

TAPPET

- valve

12шт.

Выбрано товаров: 9
