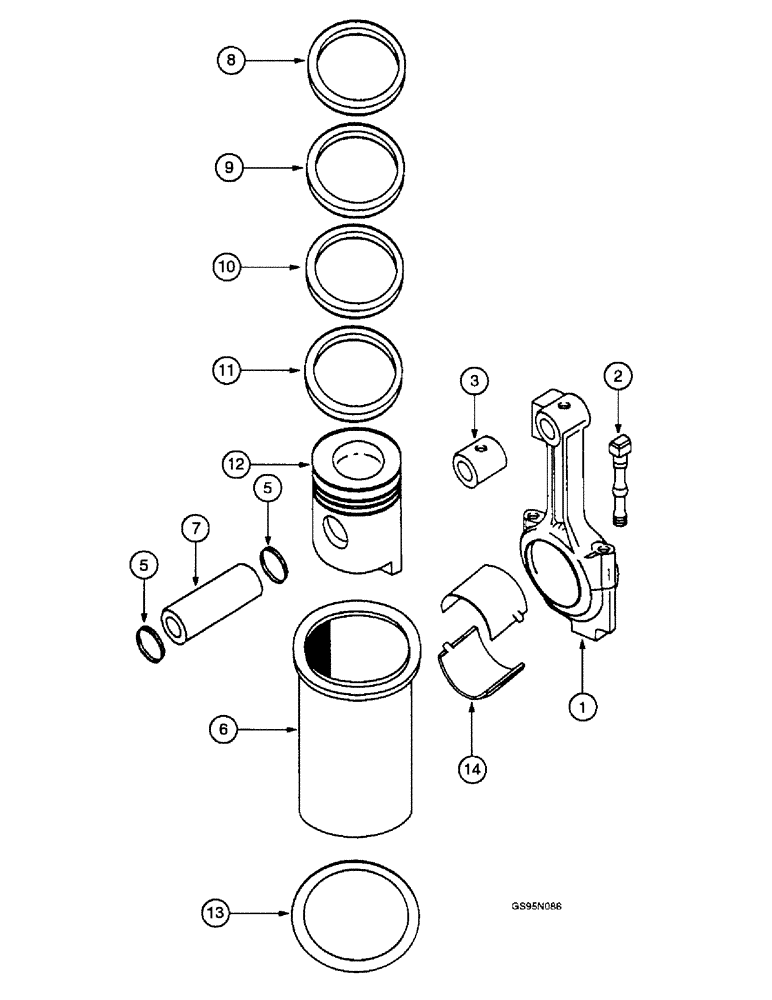

Запчасти Case IH D-358 (6-014) - CONNECTING RODS, PISTONS AND SLEEVES

1

1967032C1

CONNECTING ROD

ROD ASSEMBLY - connecting (Replaces rod assembly 3055030R24), Includes: Ref. 2 & 3

6шт.

2

3055033R11

BOLT

- Connecting rod, includes nut, No longer available, Order bolt 3055033R1 and nut 3055034R1

2шт.

3

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

- piston pin

1шт.

3139591R96

PISTON & RINGS KIT

PISTON ASSEMBLY - engine, 15:1 compression ratio, marked with number 3139593R1, 3-ring piston with keystone shaped top ring groove, for 3088 tractors with engine s/n prior to 121248, 3288 tractors with engine s/n prior to 111091, Includes: Ref. 5 - 12

6шт.

When servicing an engine that has four piston rings, all piston assemblies must be replaced with piston assembly 3139591R96.

1шт.

1806470C91

SLEEVE ASSY

PISTON ASSEMBLY - engine, 16:1 compression ratio, marked with number 1806094C1, for 3088 tractors with engine serial number 121248 and after, 3288 tractors with engine serial number 111091 and after, Includes: Ref. 5 - 12

6шт.

5

800-2136

SNAP RING,M36, Ext

RING - piston pin retaining (Replaces rings 3228245R1 and 933327R1)

2шт.

6

3139592R4

SLEEVE CYLINDER

SLEEVE - cylinder

1шт.

7

3055217R2

PISTON PIN

PIN - piston

1шт.

3138670R92

PISTON RING SET

KIT - piston ring, chrome, use with pistons having 4 ring grooves

1шт.

3139594R91

PISTON RING

KIT - piston ring, chrome, use with 3 ring pistons with keystone shaped top ring groove, does not include item 10

1шт.

8

NSS

NOT SOLD SEPARAT

RING - piston compression, first, order kit

1шт.

9

NSS

NOT SOLD SEPARAT

RING - piston compression, second, order kit

1шт.

10

NSS

NOT SOLD SEPARAT

RING - piston compression, third, order kit

1шт.

11

NSS

NOT SOLD SEPARAT

RING - oil expander, order kit

1шт.

12

NSS

NOT SOLD SEPARAT

PISTON - order piston assembly

1шт.

13

3228348R1

RING,4.75mm Thk x 109.16mm ID

- cylinder sleeve packing, 109.16 mm ID x 4.75 mm thick, black with four golden stripes, used with all machines except 886 tractors having engine serial numbers prior to 52400 and 786 tractors (Replaces ring 3055021R2 and 3218603R1)

6шт.

13

3228344R1

SEALING RING,5mm Thk x 110mm ID

RING - cylinder sleeve, 110 mm ID x 5 mm thick, black with four red stripes, used with 886 tractors having engine serial numbers prior to 52400, 786 tractors

6шт.

14

3055351R91

BEARING ASSY

BEARING - connecting rod, standard, two halves, for crankshaft assembly 3059962R93

6шт.

14

3132101R91

BEARING SET

BEARING - connecting rod, standard, two halves, for crankshaft assembly 3136036R95

6шт.

14

3056834R11

BEARING ASSY

BEARING - connecting rod, 0.25 mm undersize, two halves, for crankshaft assembly 3059891R93

6шт.

14

3136203R11

BEARING ASSY

BEARING - connecting rod, 0.25 mm undersize, two halves, for crankshaft assembly 3136203R93

6шт.

14

3056879R11

BEARING ASSY

BEARING - connecting rod, 0.50 mm undersize, two halves, for crankshaft assembly 3059893R93

6шт.

14

3055781R11

BEARING ASSY

- connecting rod, 0.75 mm undersize, two halves, for crankshaft assembly 3059895R93

6шт.

3218538R1

SHIM

- cylinder sleeve, 0.05 mm thick

1шт.

3218539R1

SHIM

- cylinder sleeve, 0.1 mm thick

1шт.

3218540R1

SHIM,112.06mm ID x 118.6mm OD x 0.25mm Thk

- cylinder sleeve, 0.25 mm thick

1шт.

3218541R1

SHIM

- cylinder sleeve, 0.50 mm thick

1шт.

3218542R1

SHIM

- cylinder sleeve, 0.8 mm thick

1шт.
