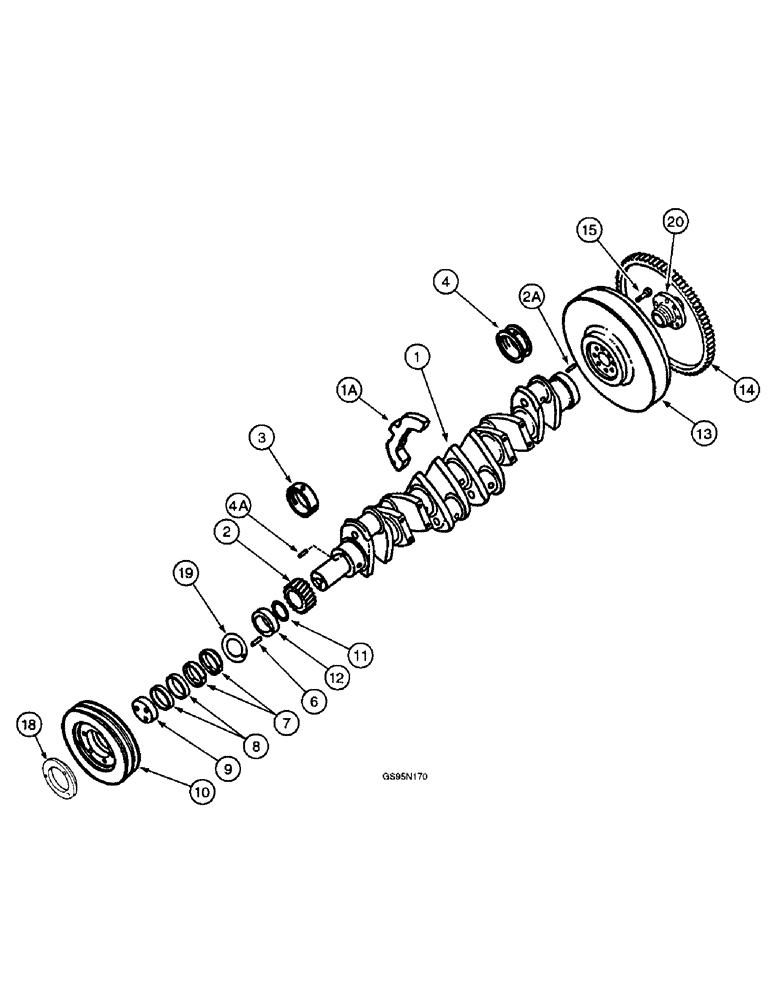

Запчасти Case IH D-358 (6-010) - CRANKSHAFT, FLYWHEEL AND BEARINGS
№
Артикул
Название
Примечание
Количество
3136036R95
CRANKSHAFT BEARING
ASSEMBLY - standard (Replaces crankshaft assembly 3059962R93), Includes: Ref. 1 - 4A & Connecting Rod Bearing
1шт.
1
NSS
NOT SOLD SEPARAT
CRANKSHAFT - standard, order crankshaft assembly 3136036R95
1шт.
3132101R91
BEARING SET
BEARING - connecting rod
6шт.
3136201R93
CRANKSHAFT
ASSEMBLY - 0.25 mm undersize, no longer available (Replaces crankshaft assembly 3059891R93), Includes: Ref. 1 - 4A & Connecting Rod Bearing
1шт.
1
NSS
NOT SOLD SEPARAT
CRANKSHAFT - 0.25 mm undersize, order crankshaft assembly 3136201R93
1шт.
3136203R11
BEARING ASSY
BEARING - connecting rod, weight
6шт.
3136327R93
CRANKSHAFT
ASSEMBLY - 0.50 mm undersize, no longer available (Replaces crankshaft assembly 3059893R93), Includes: Ref. 1 - 4A & Connecting Rod Bearing
1шт.
1
NSS
NOT SOLD SEPARAT
CRANKSHAFT - 0.50 mm undersize, order crankshaft assembly 3136327R93
1шт.
3136329R11
BEARING ASSY
BEARING - connecting rod, weight
6шт.
1a
NSS
NOT SOLD SEPARAT
WEIGHT - crankshaft balance, order crankshaft assembly
12шт.
2
3055028R1
PINION
GEAR - crankshaft pinion, 33 teeth
1шт.
2
60883H
RING GEAR
126 TEETH, OD 15.9"
1шт.
2a
37-2614
DOWEL,3/8" x 7/8"
PIN - dowel, 3/8 x 7/8 inch
1шт.
3055149R2
BOLT,Pan HD, 7/16" - 20 x 2-3/16", Cl 10.9
SCREW - balance weight
24шт.
3
3055130R21
CRANKSHAFT BEARING
BEARING - crankshaft main, two halves, standard
6шт.
3
3056832R21
BEARING ASSY
BEARING - crankshaft main, two halves, .010 undersize
6шт.
3
3056877R21
BEARING ASSY
BEARING - crankshaft main, two halves, 0.50 mm undersize
6шт.
3
3055779R21
BEARING ASSY
- crankshaft main, two halves, 0.75 mm undersize
6шт.
4
3055129R21
CRANKSHAFT BEARING
BEARING - crankshaft flange main, two halves, standard
6шт.
4
3056820R11
BEARING ASSY
BEARING - crankshaft flange main, two halves, 0.25 mm undersize
6шт.
4
3056875R11
BEARING ASSY
BEARING - crankshaft flange main, two halves, 0.50 mm undersize
6шт.
4
3055776R11
BEARING ASSY
BEARING - crankshaft flange main, two halves, 0.75 mm undersize
1шт.
4a
838-5410
LOCK PIN,M4 x 10, Slotted
PIN - roll, 4 x 10 mm (Replaces pin 932169R1)
1шт.
6
932681R1
DOWEL,4mm OD x 24mm L
Pin M4 x 24, Oval
1шт.
Part of Service Kit, P/N 3228133R93
1шт.
7
3055152R91
RING
ELEMENT - spring tightener, two used on all machines except 886 tractors, three used on 886 tractors
1шт.
8
3055153R1
SPACER,56.64mm ID x 61.72mm OD x 10.16mm L
- pressure, two used on all machines except 886 tractors, one used on 886 tractors
1шт.
9
3055154R1
WASHER
- pressure (Replaces washer 3139161R1)
1шт.
870325R1
BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8
SCREW - hex, 7/16 NC x 1-3/8 inch (Replaces screw 308464R1)
3шт.
10
3132270R95
PULLEY
- dampener, used with 826 and 2826 tractors
1шт.
10
3228202R92
SHOCK ABSORBER
PULLEY - dampener, used with 786, 886, 3088 and 3288 tractors
1шт.
10
3139162R92
GROOVED PULLEY
PULLEY - dampener, used with 1400 cotton harvesters and 1420 combines
1шт.
11
713778R1
O-RING,3mm Thk x 55mm ID
- crankshaft
1шт.
Part of Service Kit, P/N 3228133R93
1шт.
12
NSS
NOT SOLD SEPARAT
RING - distance, order kit 3228133R93
1шт.
Part of Service Kit, P/N 3228133R93
1шт.
13
3055980R11
FLYWHEEL
ASSEMBLY - used with 826, 2826, 786, 886, 3088 and 3288 tractors, Includes: Ref. 14
1шт.
13
3228091R91
FLYWHEEL
ASSEMBLY - used with 1400 cotton harvesters, no longer available, Includes: Ref. 14
1шт.
13
3228113R91
FLYWHEEL
ASSEMBLY - engine, used with 1420 combines, Includes: Ref. 14
1шт.
14
341604R1
GEAR
- ring, used with 826, 2826, 786, 886, 3088 and 3288 tractors
1шт.
14
690252C1
GEAR
- ring, used with 1420 combines
1шт.
If you lay this ring gear down with the chamfer side of tooth facing up, the chamfer should be on the right side of the tooth. Some dealers are calling in saying the chamfer should be on the left side of tooth, if so the correct part number is 34160R1.
1шт.
14
3218637R1
CROWN WHEEL
GEAR - ring, used with 1400 cotton harvesters
1шт.
15
3055577R2
WHEEL BOLT
BOLT - flywheel, used with 826, 2826, 786, 886, 3088 and 3288 tractors
7шт.
15
3055156R2
BOLT,1/2" - 20 x 33.5mm
- flywheel, used with 1400 cotton harvesters
7шт.
15
3218037R1
BOLT,Hex, 1/2" - 20 x 58.5mm
- Flyweel, Used with 1420 combines
7шт.
16
37-2614
DOWEL,3/8" x 7/8"
PIN - dowel, 3/8 x 7/8 inch, not shown
1шт.
18
3144349R1
RING
- clamping, used with 1400 cotton harvesters and 1420 combines
1шт.
414-516
BOLT,Hex, 5/16" - 24 x 1", Gr 5
- hex, 5/16 NF x 1 inch (Replaces bolt 181339)
3шт.
19
3144752R1
SPACER
- used with 826 and 2826 tractors, no longer available
1шт.
19
3218437R1
WASHER,55.5mm ID x 79.5mm OD x 3mm Thk
SPACER - used with 786, 886, 3088 and 3288 tractors
1шт.
20
3218342R1
DISC
HUB - driving shaft, no longer available
1шт.
3228133R93
SEAL KIT
KIT - service, crankshaft front oil seal (Replaces kits 3144751R92 and 3136724R94), Includes: ref. nos. 6, 11 and 12
1шт.
Выбрано товаров: 54
