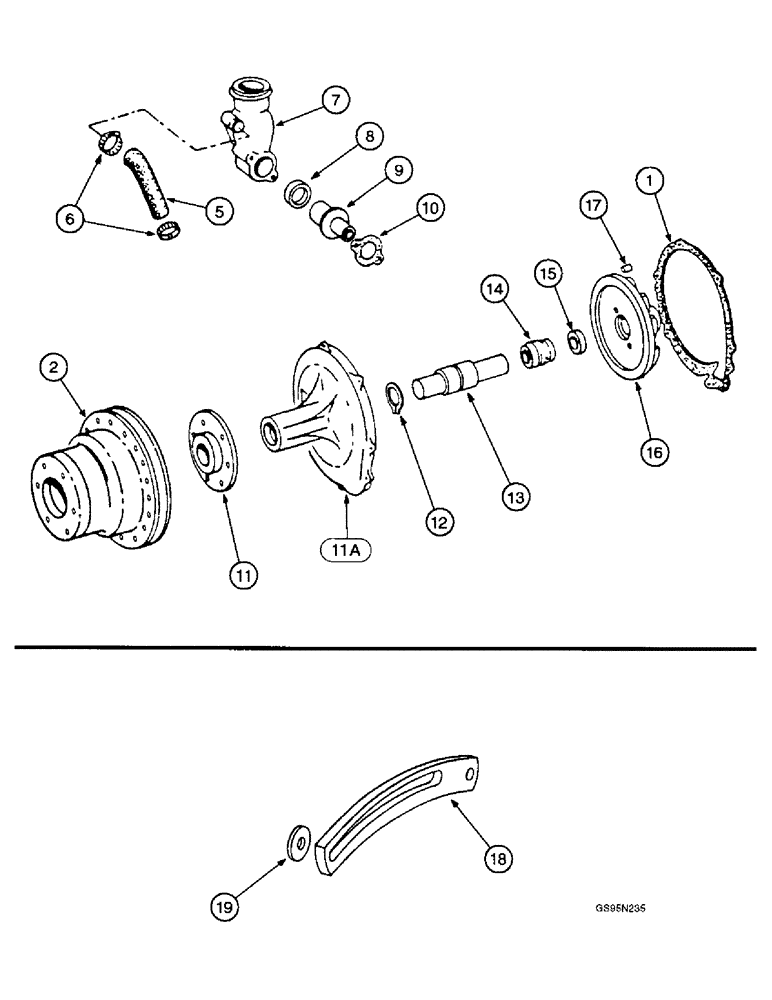

Запчасти Case IH D-312 (9A-46) - THERMOSTAT AND WATER PUMP / ALTERNATOR-GENERATOR MOUNTING

673623C92

PUMP, WATER

HOUSING ASSEMBLY - water pump (Replaces housing assembly 677415C93), Includes: Ref. 11 - 17

1шт.

749909C91

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

1928145C1

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

1

675808C2

GASKET,0.79mm Thk

water pump housing

1шт.

2

673788C1

PULLEY

water pump

1шт.

329-106

NUT,3/8"-16, G8

(Replaces nut 25522R1)

2шт.

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

(Replaces bolt 24842R1)

2шт.

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

(Replaces bolt 24844R1)

2шт.

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

(Replaces bolt 140483H)

4шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

8шт.

5

672242C2

HOSE

Thermostat By-Pass Housing

1шт.

6

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Thermostat by-pass housing hose

2шт.

7

689061C1

HOUSING

Tthermostat (Replaces housing 675810C2)

1шт.

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

(Replaces bolt 277232R1)

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

2шт.

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

(Replaces plug 444660)

1шт.

8

615175C91

SEAL

Thermostat

1шт.

9

684739C1

THERMOSTAT

Coolant, 190 degrees Fahrenheit, interchangeable with 687018C2

1шт.

10

1342836C1

GASKET

Thermostat housing (Replaces gasket 675384C1)

1шт.

11

675033C1

HUB

Pulley, water pump

1шт.

11a

675806C3

HOUSING

Bearing, water pump

1шт.

12

100-21187

SNAP RING,1.875", Int, #187

(Replaces ring 272842R1)

1шт.

13

627785C91

BEARING ASSY,47.63mm OD x 177.8mm L

SHAFT - pump, includes bearing

1шт.

687161C92

KIT

KIT - water pump seal (Replaces kits 687366C91 and 701331C93), Includes: Ref. 14 & 15

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - water pump, order water pump seal kit 687161C92

1шт.

15

NSS

NOT SOLD SEPARAT

SEAT - water pump, order water pump seal kit 687161C92

1шт.

16

677414C1

IMPELLER

Water pump

1шт.

17

680481C1

PIN

Dowel, 1/4 x 5/8 inch

2шт.

18

532418R1

BRACE

Alternator-generator

1шт.

537326R1

BOLT

Hex, special, 5/16 NC x 1-1/2 inch

1шт.

492-11031

LOCK WASHER,5/16"

(Replaces washer 103320)

1шт.

28588R1

WASHER

Flat, 11/32 x 11/16 x 3/64 inch (Replaces washers 120393 and 27309R1)

1шт.

425-105

NUT,5/16"-18, G5

1шт.

19

280185R1

SPACER

Alternator-generator brace

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 179839)

1шт.

92-11038

LOCK WASHER,3/8"

(Replaces washer 103321)

1шт.
