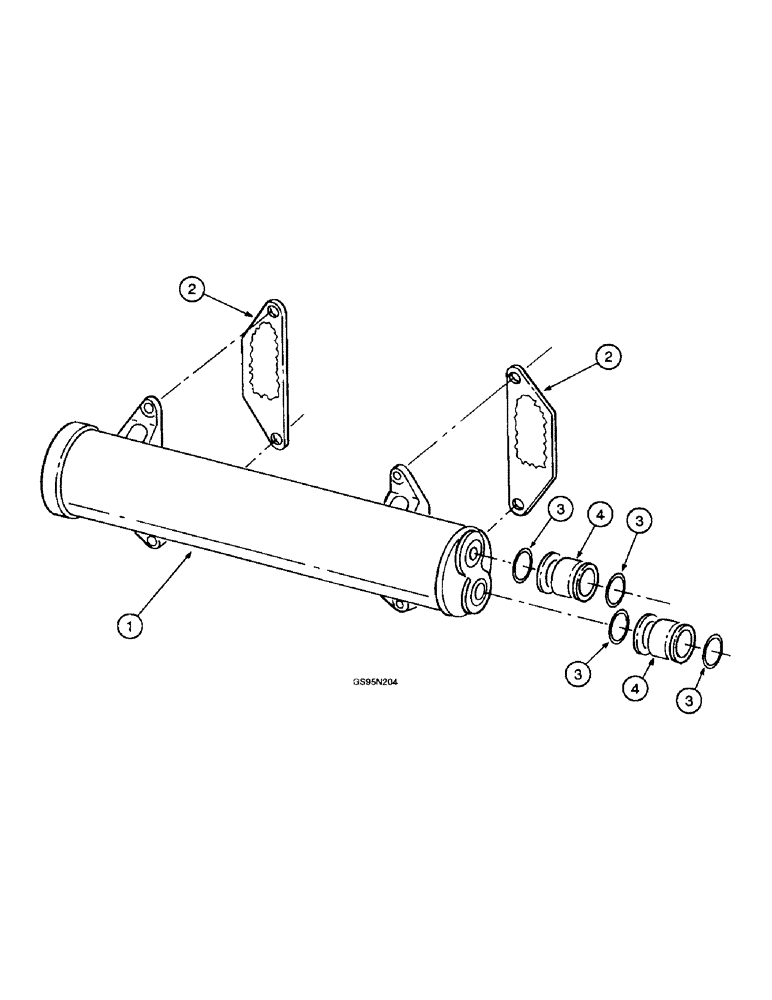

Запчасти Case IH D-312 (9A-42) - OIL COOLER AND CONNECTIONS

1

735259C91

REMAN-OIL COOLER

COOLER - oil, remanufactured, component parts do not apply to the remanufactured assembly

1шт.

1

1938221C1

CORE-OIL COOLER

RETURN NUMBER - use this part number to return cooler core for credit when using a remanufactured assembly

1шт.

1

1810216C2

COOLER ASSY.

COOLER - oil, new (Replaces cooler 677091C92)(See Note)

1шт.

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

(Replaces bolt 140483H) Hex, 3/8"-16 x 1 1/4", G8, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 115093) 3/8"

4шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

2

675513C1

OIL SEAL

SEAL - oil cooler mounting, used with cooler 677091C92

2шт.

3

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

(Replaces O-ring 252483R1) -218, 70 Duro, 1.234" ID x .139" Thk

4шт.

4

677109C1

TUBE

- cooler to front cover, used with cooler 677091C92

2шт.
