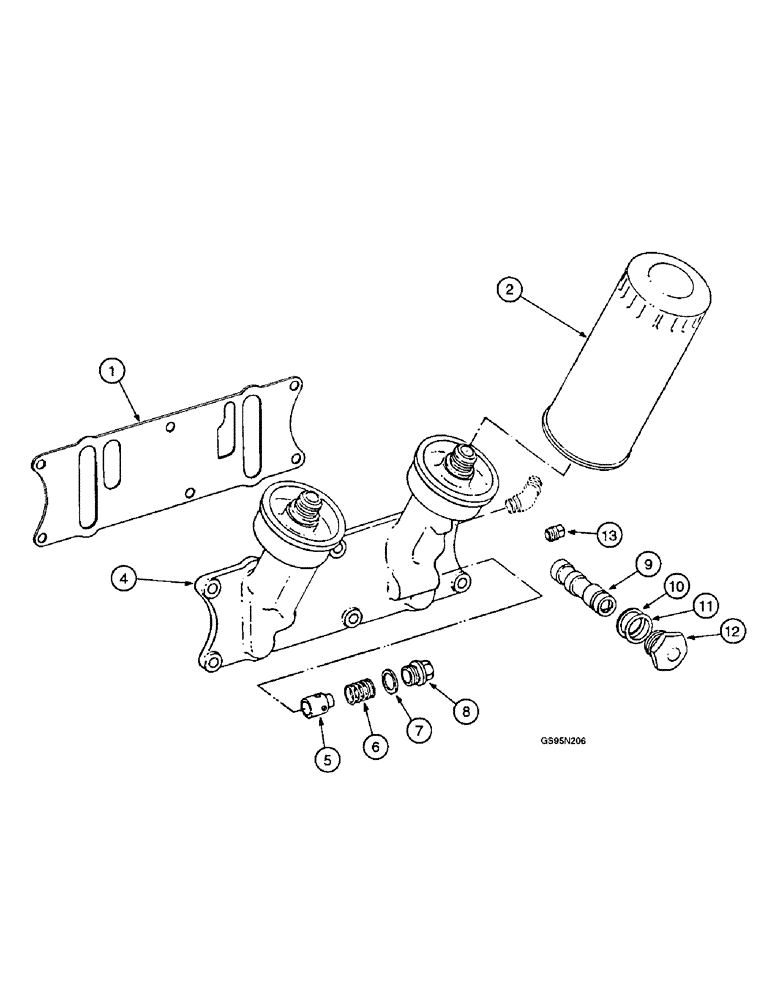

Запчасти Case IH D-312 (9A-38) - LUBRICATING OIL FILTER

1

675398C2

GASKET

- oil filter base

1шт.

2

A184775

ENGINE OIL FILTER

FILTER ASSEMBLY - lubricating oil, 8 inch high (Replaces filter assembly 675616C91)

2шт.

4

675358C1

BASE

- lubricating oil filter

1шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex prevailing torque, 3/8 NC x 1-1/8 inch, grade 8

6шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

6шт.

5

601917C1

VALVE

- base

1шт.

6

676137C1

SPRING

- valve

1шт.

7

676136C1

GASKET

- valve plug

1шт.

8

676135C1

PLUG

- plug

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - oil pressure regulating, order kit 680237C93

1шт.

10

261624R1

GASKET

- regulator valve cap

1шт.

11

349055R2

RING

O-RING - 13/16 x 1 x 3/32 inch

1шт.

12

675395C1

CAP

- pressure regulating valve

1шт.

13

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 444655)

1шт.

680237C93

ASSEMBLY

KIT - oil pressure regulating valve, Includes: Ref. 9 - 11

1шт.
