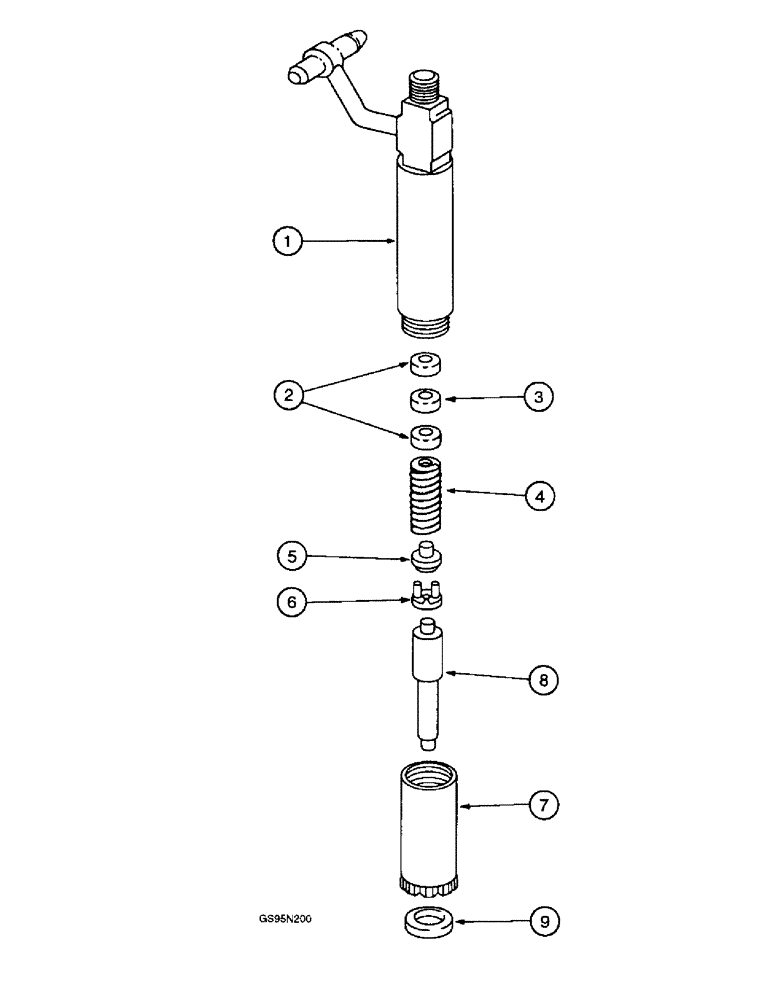

Запчасти Case IH D-312 (9A-36) - INJECTION NOZZLE

675960C91

NOZZLE INJECTION

NOZZLE ASSEMBLY - injection, new, no longer available, order remanufactured nozzle 631570C91, Includes: Ref. 1 - 9

1шт.

631570C91

REMAN-FUEL INJECTOR

NOZZLE ASSEMBLY - injection, remanufactured, component parts do not apply to the remanufactured assembly

1шт.

1934147C1

CORE-FUEL INJECTOR

RETURN NUMBER - use this part number to return nozzle for credit when using a remanufactured assembly

1шт.

1

680413C1

BODY

BODY - nozzle holder

1шт.

2

680414C1

SPACER

SPACER - nozzle

2шт.

3

680415C1

SPACER

SPACER - spring adjusting, 0.002 inch

1шт.

3

680416C1

SPACER

SPACER - spring adjusting, 0.007 inch

1шт.

3

680418C1

SPACER

SPACER - spring adjusting, 0.010 inch

1шт.

3

680419C1

SPACER

SPACER - spring adjusting, 0.025 inch

1шт.

3

680420C1

SPACER

SPACER - spring adjusting, 0.375 inch

1шт.

3

680421C1

SPACER

SPACER - spring adjusting, 0.028 inch

1шт.

3

680422C1

SPACER

SPACER - spring adjusting, 0.030 inch

1шт.

3

680423C1

SPACER

SPACER - spring adjusting, 0.035 inch

1шт.

4

680424C1

SPRING

SPRING - pressure adjusting

1шт.

5

680433C1

GUIDE

GUIDE - spring seat

1шт.

6

A44862

VALVE

SPACER - valve stop (Replaces spacer 680434C1)

1шт.

7

680435C1

NUT

NUT - nozzle cap

1шт.

8

673598C1

NOZZLE INJECTION

TIP - nozzle

1шт.

9

1342829C1

GASKET

GASKET - nozzle, injector (Replaces gasket 675477C1)

1шт.
