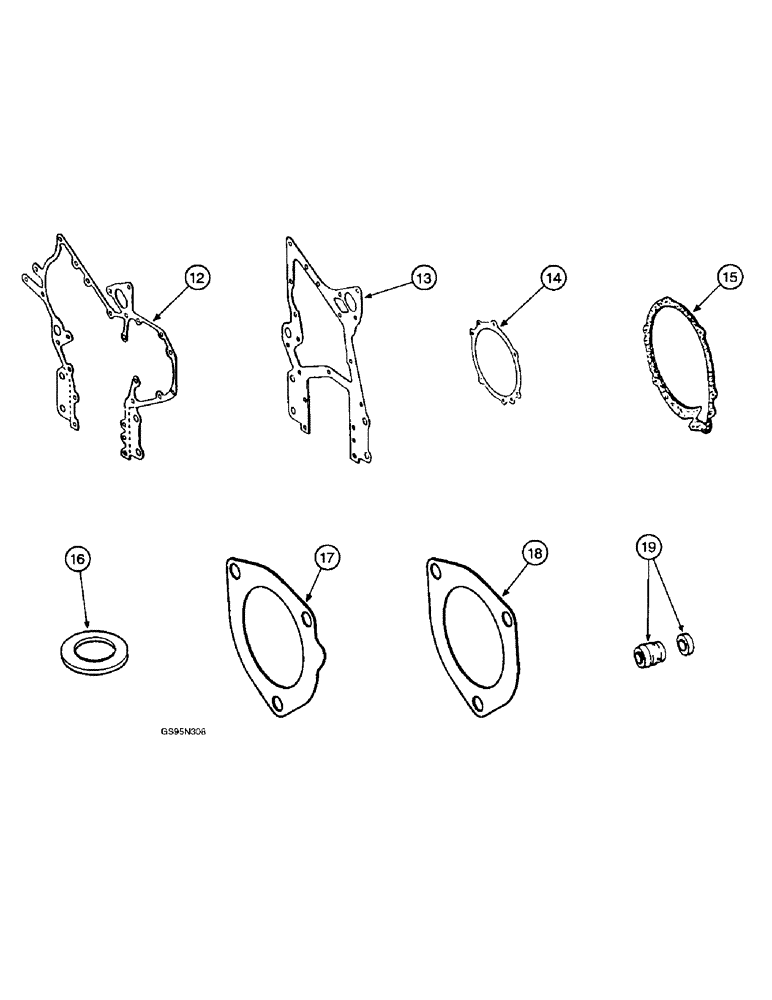

Запчасти Case IH D-312 (9A-18) - SERVICE KITS

680084C97

GASKET KIT

KIT - crankcase gasket, front cover, Includes: Parts Listed Below

1шт.

12

675813C2

GASKET,0.79mm Thk

- crankcase front cover

1шт.

13

675812C2

GASKET

- crankcase front plate

1шт.

683791C1

GASKET

- crankcase front plate

1шт.

14

675816C2

GASKET,0.79mm Thk

- injection pump access cover

1шт.

671821C2

GASKET

- lubrication oil pump inlet

1шт.

671825C4

GASKET

- oil pan, 300 series engines

1шт.

671827C4

OIL PAN GASKET SET

- oil pan, 400 series engines

1шт.

673396C2

GASKET

- water inlet elbow

1шт.

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Oil cooler tube -218, 70 Duro, 1.234" ID x .139" Thk

4шт.

675860C1

RING

O-RING - oil pump housing

2шт.

15

675808C2

GASKET,0.79mm Thk

- water pump housing

1шт.

676988C1

GASKET

- water pump bearing housing

1шт.

677082C3

GASKET

- front cover

1шт.

674754C1

GASKET

GASKET - injection pump mounting

1шт.

678334C91

PACKAGE

KIT - injection pump service parts, no longer available, order components, Includes: Parts Listed Below

1шт.

681299C1

RETAINER

BAIL - hand primer

1шт.

681291C93

SCREW

CAPSULE - low idle (Replaces capsule 681291C91)

1шт.

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- fuel inlet, at hydraulic head, street, 90 degree, 1/4 inch PT x female PT (Replaces elbow 674724C1)

1шт.

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

ADAPTER - primary pump inlet and outlet, compression, 3/8 tube OD x 1/4 inch PT (Replaces connector 606819C1)

1шт.

16

1342829C1

GASKET

- nozzle holder (Replaces gasket 675477C1)

1шт.

674754C1

GASKET

GASKET - injection pump mounting

1шт.

674807C1

GASKET

- screw, lower

1шт.

257161R1

GASKET

- screw, upper

1шт.

674908C92

LEVER

- operator

1шт.

680391C91

PUMP

PRIMER - hand

1шт.

674810C1

PLUG

SCREW - head locating

1шт.

680312C92

PUMP, FUEL INJECTION

VALVE - fuel return overflow (Replaces valve 674765C91)

1шт.

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT x female PT

1шт.

680313C1

ELBOW

VALVE - return

1шт.

684079C92

GASKET

KIT - injection pump gasket, Includes: Parts Listed Below

1шт.

67870D

GASKET

- mounting screw

5шт.

257161R1

GASKET

- locating head plate screw

1шт.

674807C1

GASKET

- locating head plate

1шт.

674811C1

GASKET

- pump to governor housing

1шт.

681263C1

GASKET

- control unit cover

1шт.

684684C1

GASKET

- governor top cover (Replaces gasket 681264C1)

1шт.

681292C1

SEAL

- governor shaft seal

1шт.

681298C1

GASKET

- hand primer

1шт.

17

681294C1

GASKET

- supply pump

1шт.

18

681293C1

GASKET

GASKET - supply pump

1шт.

674754C1

GASKET

GASKET - injection pump mounting

1шт.

674812C1

GASKET

GASKET - excess fuel device tube

1шт.

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Governor operating shaft (Replaces O-ring 355966R1) -111, 70 Duro, .424" ID x .103" Thk

2шт.

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Control unit (Replaces O-ring 355967R1)

1шт.

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Low idle screw

1шт.

19

687161C92

KIT

- water pump seal, Includes: Parts Listed Below

1шт.

NSS

NOT SOLD SEPARAT

SEAT - water pump seal, order kit

1шт.

NSS

NOT SOLD SEPARAT

SEAL - water pump, order kit

1шт.
