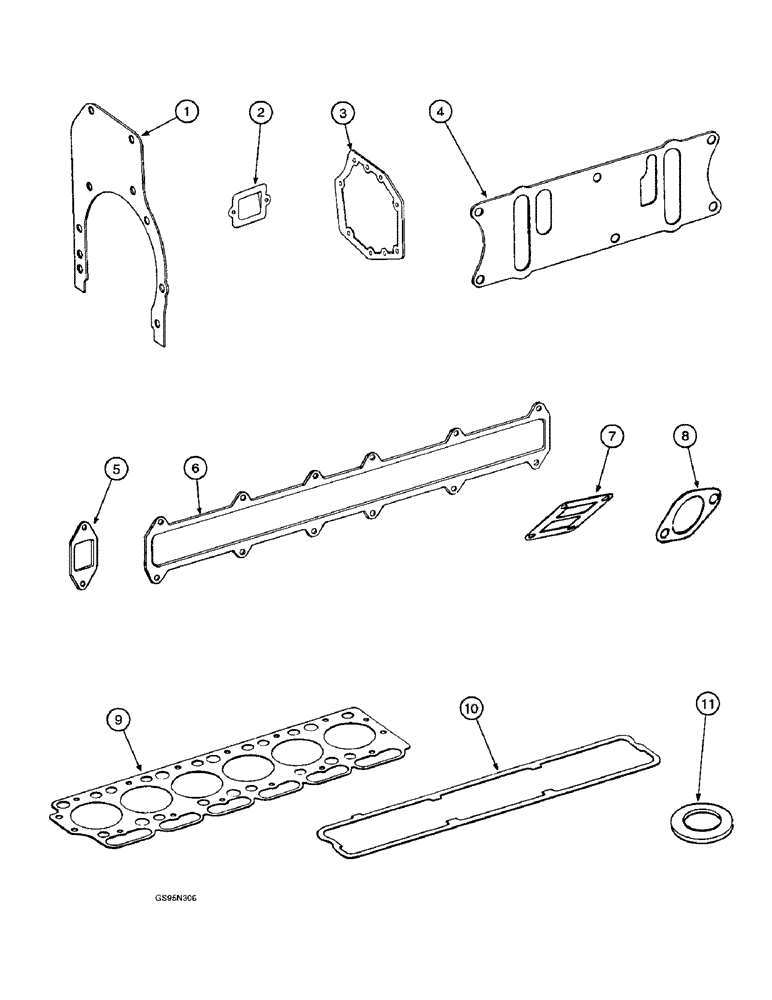

Запчасти Case IH D-312 (9A-16) - BASIC ENGINE, SHORT BLOCK ENGINE, SERVICE KITS

680701C91

ENGINE - basic, 666 and 686 tractors with gear drive, consists of all engine parts except alternator-generator, fan belt, fan blade, muffler and exhaust pipe, no longer available

1шт.

680702C91

ENGINE - basic, 666, 70 and 86 hydrostatic drive tractors, consists of all engine parts except alternator-generator, fan belt, fan blade, muffler and exhaust pipe, no longer available

1шт.

749842C91

ENGINE ASSEMBLY

ENGINE - basic, remanufactured, for 666, 686 gear drive tractors and 666, 70 and 86 hydrostatic drive tractors, no longer available

1шт.

749560C92

ENGINE - block, short, remanufactured for 674954C92 (North America only), component parts do not apply to the remanufactured assembly, no longer available

1шт.

1928051C1

CORE-ENGINE

RETURN NUMBER - use this part number to return engine for credit when using a remanufactured assembly

1шт.

674954C92

ENGINE ASSEMBLY

ENGINE - block, short, new, consists of: camshaft, connecting rods and bearings, crankcase, crankshaft and bearings, sleeves, pistons, pins and rings, and valve tappets, no longer available

1шт.

674399C96

GASKET

KIT - crankcase gasket, Includes: Parts Listed Below

1шт.

1

682945C3

GASKET

- flywheel housing

1шт.

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - oil pan drain plug

1шт.

2

677711C2

GASKET

BAFFLE - breather

1шт.

673185C1

O-RING

- breather pipe

1шт.

3

675609C2

GASKET

- injection pump mounting adapter

1шт.

4

675398C2

GASKET

- oil filter base

1шт.

675513C1

OIL SEAL

SEAL - oil cooler mounting

2шт.

261624R1

GASKET

- regulator valve cap

1шт.

682444C1

RING

- camshaft seal

1шт.

680084C97

GASKET KIT

KIT - front cover gasket

1шт.

176395A1

GASKET KIT

KIT - cylinder head gasket (Replaces kit 674397C91), Includes: Parts Listed Below

1шт.

5

1349062C1

MANIFOLD GASKET

- exhaust manifold (Replaces gasket 688928C1)

6шт.

6

682198C2

MANIFOLD GASKET

- intake manifold

1шт.

7

1342826C1

GASKET

- turbocharger (Replaces gasket 670073C1)

1шт.

8

1342834C1

GASKET

- turbocharger oil inlet tube (Replaces gasket 253660R1)

1шт.

1342827C1

SHIELD

GASKET - oil drain tube (Replaces gasket 670079C3)

1шт.

Note under part no. 8b, 1342827c1 s/b 1342835c1 oil drain tube gasket, 1342827c1 oil shield is not in 176395a1 kit. cam djo 11/29/00

1шт.

1342836C1

GASKET

- thermostat housing (Replaces gasket 675384C1)

1шт.

9

179206A1

CYLINDER HEAD GASKET

- cylinder head (Replaces gasket 676967C1)

1шт.

10

675389C1

GASKET

- valve cover

1шт.

11

1342829C1

GASKET

- nozzle, injector (Replaces gasket 675477C1)

6шт.

1342831C1

SEAL

GROMMET - injection dust seal (Replaces gaskets 675478C1 and 682810C1)

6шт.

313971R1

GROMMET

- valve cover

6шт.
