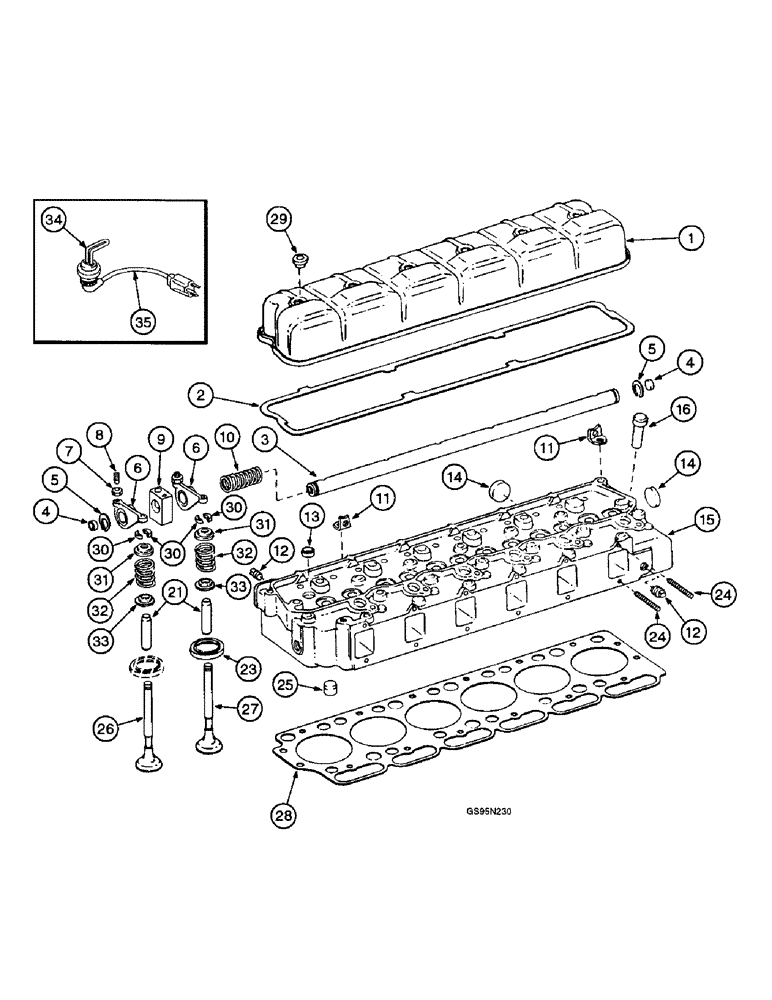

Запчасти Case IH D-312 (9A-14) - CYLINDER HEAD AND RELATED PARTS, ENGINE BLOCK HEATER

1

676156C2

COVER ASSY

COVER - valve

1шт.

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

(Replaces bolt 25654R1) Hex, 5/16"-18 x 1 1/2", G8

6шт.

2

675389C1

GASKET

- valve cover

1шт.

3

675661C92

SHAFT

- rocker arm

1шт.

4

41-109

PLUG,Cup, 9/16"

- rocker arm shaft (Replaces plug 291171C1)

2шт.

5

100-1184

SNAP RING,#84, Ext

Ring, Snap, (Replaces ring 24577R1) #84, Ext

2шт.

6

682260C91

LEVER

ARM - valve rocker, engine serial numbers, Serial Range: prior-8499

12шт.

6

1820830C92

ROCKER

ARM - valve rocker, engine serial number 8499 and after (Replaces arm 688999C93)

12шт.

7

133093R1

NUT,Hex, 3/8" - 24

- adjusting screw

1шт.

8

16067DA

ADJUSTMENT SCREW,3/8" - 24

- rocker arm adjusting

1шт.

9

675536C2

BRACKET

- rocker arm shaft

6шт.

10

675105C1

SPRING

- rocker arm shaft

5шт.

11

675455C1

EYE

- lifting

2шт.

25830R1

BOLT,Hex, 9/16" - 12 x 1 1/4", Gr 8

SCREW - hex, 9/16 NC x 1-1/4 inch (Replaces screw 24648R1)

2шт.

749631C91

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured for head assembly 680392C92 (North America only), component parts do not apply to the remanufactured assembly, used with 70, 86 hydro, 666 and 686 tractors

1шт.

1928107C1

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return cylinder head for credit when using a remanufactured assembly

1шт.

680392C91

HEAD

ASSEMBLY - cylinder, new, no longer available, order remanufactured head assembly 749631C91, Includes: Ref. 12 - 25

1шт.

12

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT

2шт.

13

41-1618

PLUG,Cup, 1 1/8", Stainless

- cup, 1-1/8 inch (Replaces plug 21427R1)

7шт.

14

41-1624

PLUG,Cup, 1 1/2", Stainless

- cup, 1-1/2 inch (Replaces plug 601093C1)

6шт.

15

NSS

NOT SOLD SEPARAT

HEAD - cylinder, order head assembly 749631C91

1шт.

16

675442C1

SLEEVE

- injector

6шт.

21

675439C1

GUIDE

- valve

12шт.

23

671599C2

SEAT, VALVE

INSERT - exhaust valve seat, 0.002 inch oversize

6шт.

23

671601C1

INSERT - exhaust valve seat, 0.015 inch oversize, no longer available

6шт.

24

682840C1

STUD

- manifold, exhaust, no longer available, order bolt 1809774C1

12шт.

25

675045C1

DEFLECTOR

DIRECTOR - water

12шт.

1809774C1

STUD,Hex, 7/16" - 14 x 1.50"

BOLT - hex prevailing torque, 7/16 NC x 1-1/2 inch

12шт.

26

675574C2

LOCK VALVE

VALVE - intake

6шт.

27

675573C3

VALVE

- exhaust

6шт.

682987C1

NUT

- hex, 7/16 inch NC

12шт.

684034C1

WASHER,11.91mm ID x 21.34mm OD x 3.17mm Thk

- flat, 15/32 x 27/32 x 1/8 inch

12шт.

28

179206A1

CYLINDER HEAD GASKET

- cylinder head (Replaces gasket 676967C1)

1шт.

29

1342830C1

SEAL

GROMMET - valve cover (Replaces grommet 677692C1)

6шт.

30

41339D

KEY

LOCK - valve spring retainer

24шт.

31

1811581C91

CENTERING RING

ROTATOR - valve, top (Replaces rotator 682221C92)

12шт.

1342827C1

SHIELD

- oil (Replaces shield 681234C1)

1шт.

32

682064C1

SPRING

- valve

12шт.

33

675443C1

SEAT

- valve spring

12шт.

676119C1

BOLT

- cylinder head long

6шт.

676120C1

BOLT

- cylinder head short

20шт.

252018R1

WASHER,15.11mm ID x 25.4mm OD x 4.83mm Thk

- cylinder head bolt

26шт.

34

71151C91

HEATER

- engine block, 115 volt, used with hydro 70, hydro 86, 666 and 686 tractors

1шт.

35

A44813

CABLE EXTENSION

CABLE - engine block heater, 12 inch (305 mm) long (Replaces cable 71150C1)

1шт.

Ref #35: A44813 is 1ft. long. For 6ft. long cord, order J905113 or 196466A1. 4/12/02 CJK-TSG

1шт.
