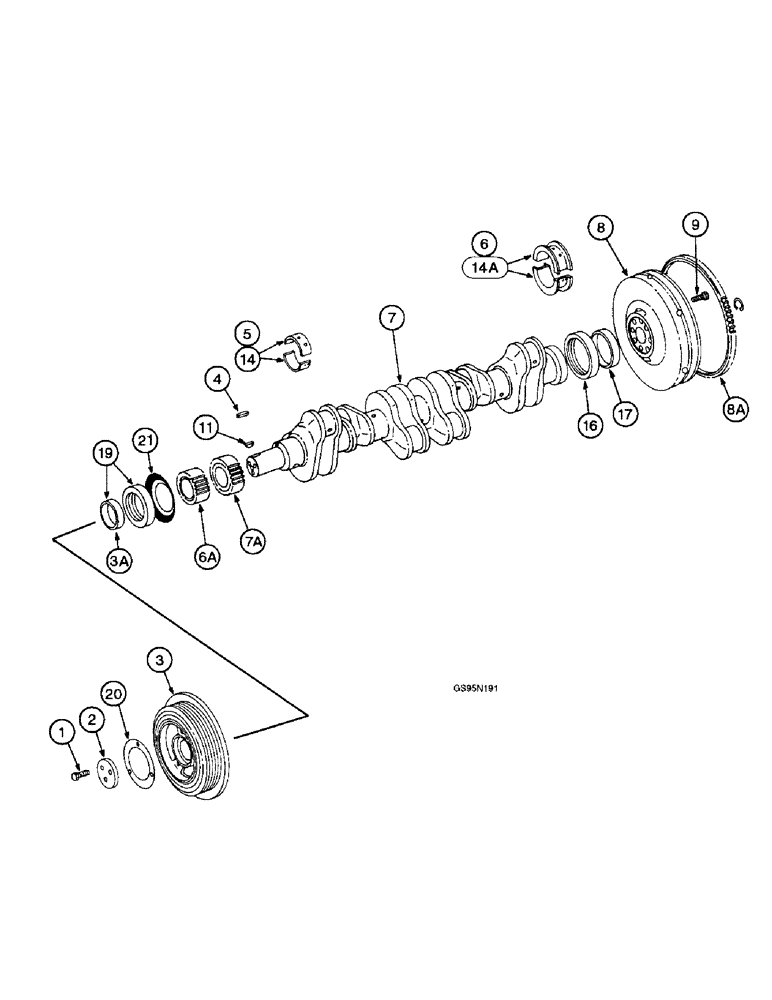

Запчасти Case IH D-312 (9A-08) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

(Replaces bolt 24862R1) Hex, 1/2"-13 x 1 1/2", G8, Full Thd

3шт.

2

675412C1

PLATE

- damper retaining

1шт.

3

680275C92

PULLEY

DAMPER ASSEMBLY - vibration, Includes: Ref. 3A

1шт.

3a

NSS

NOT SOLD SEPARAT

SLEEVE - wear, order damper assembly 680275C92 or kit 690437C93

1шт.

681320C92

CRANKSHAFT

ASSEMBLY - standard, Includes: Ref. 4 - 7A, no longer available as an assembly, order components

1шт.

4

17135R1

LOCK PIN,5/32" x 5/16", Slotted

PIN, 5/32" x 5/16", Slotted

1шт.

5

684552C94

BEARING SET

- crankshaft main, two halves, standard, front and intermediate, no longer available separately, order main bearing kit 243661A1

6шт.

6

684561C94

BEARING SET

- crankshaft main rear, two halves, standard, no longer available separately, order main bearing kit 243661A1

1шт.

6a

675364C1

GEAR

SPLINE - oil pump drive, 44 teeth

1шт.

7

NSS

NOT SOLD SEPARAT

CRANKSHAFT - standard, order crankshaft assembly 681320C92

1шт.

7a

675406C1

GEAR

- crankshaft, 32 teeth

1шт.

8

680708C91

FLYWHEEL ASSEMBLY - used with Farmall 666, 70 and 86 hydrostatic drive tractors, no longer available, Includes: Ref. 8A

1шт.

8

282208A1

FLYWHEEL

ASSEMBLY - used with Farmall 666 and 686 tractors with gear drive (Replaces flywheel assembly 680712C91), Includes: Ref. 8A

1шт.

8a

367042R1

GEAR

- ring, used with flywheel 282208A1

1шт.

8a

396421R1

GEAR, RING

GEAR - ring, used with flywheel 680708C91

1шт.

9

25284R1

BOLT,Hex, 1/2" - 20 x 3", Gr 8

SCREW - hex, 1/2 NC x 3 inch, used with flywheel assembly 282208A1

8шт.

9

80290R1

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 8

- hex, 1/2 NC x 2-1/4 inch, grade 8, used with flywheel assembly 680708C91

8шт.

685902C1

WASHER

- hardened

8шт.

11

691044C1

KEY

- vibration damper, 5/16 x 1 inch (Replaces key 124554)

1шт.

14

684555C94

BEARING SET

BEARING - crankshaft main, two halves, front and intermediate, 0.010 inch undersize

6шт.

14

687385C4

BEARING SET

- crankshaft main, two halves, front and intermediate 0.020 inch undersize

6шт.

14

684558C93

BEARING SET

- crankshaft main, two halves, front and intermediate 0.030 inch undersize

6шт.

14a

684564C94

BEARING SET

- crankshaft main rear, two halves, 0.010 inch undersize

1шт.

14a

687388C4

BEARING SET

- crankshaft main rear, two halves, 0.020 inch undersize, no longer available separately, order bearing kit 243663A1

1шт.

14a

684567C93

BEARING SET

- crankshaft main rear, two halves, 0.030 inch undersize

1шт.

1809964C92

OIL SEAL

KIT - rear seal and wear sleeve (Replaces kits 678529C91 and 678554C91), Includes: Gasket Listed Below & Ref. 16 - 17

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil, order seal kit 1809964C92

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE - oil seal wear, order seal kit 1809964C92

1шт.

332303R1

SEAL

- seal face plate

1шт.

19

690437C94

SEAL KIT

KIT - front seal and wear sleeve

1шт.

20

684431C1

PLATE

- vibration damper

1шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

3шт.

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

(Replaces washer 25544R1) 13/32" x 13/16" x .134", HDN

3шт.

21

687024C1

SEALING WASHER

WASHER - seal

1шт.
