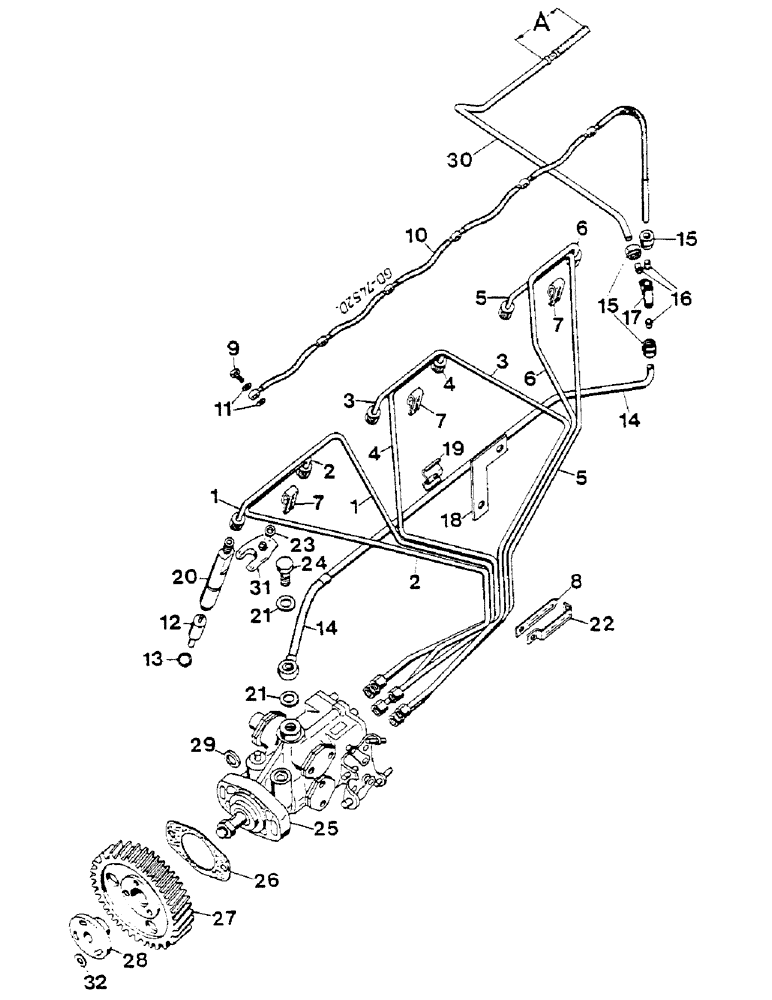

Запчасти Case IH D-310 (11-022) - INJECTION PUMP, INJECTION LINES, NOZZLE HOLDER

1

3218184R1

PIPE

INJECTION, CYLINDER 1 - UNIT I

1шт.

1

3218198R1

TUBE

INJECTION, CYLINDER 1 - UNIT II AND III

1шт.

2

3218185R1

PIPE

INJECTION CYLINDER 2 - UNIT I

1шт.

2

3218199R1

INJECTION PIPE

CYLINDER 2 - UNIT II AND III

1шт.

3

3218186R1

PIPE

INJECTION CYLINDER 3 - UNIT I

1шт.

3

3218200R1

TUBE

INJECTION CYLINDER 3 - UNIT II AND III

1шт.

4

3218187R1

PIPE

INJECTION CYLINDER 4 - UNIT I

1шт.

4

3218201R1

INJECTION PIPE

CYLINDER 4 - UNIT II AND III

1шт.

5

3218188R1

PIPE

INJECTION CYLINDER 5 - UNIT I

1шт.

5

3218202R1

TUBE

INJECTION CYLINDER 5 - UNIT II AND III

1шт.

6

3218189R1

PIPE

INJECTION CYLINDER 6 - UNIT I

1шт.

6

3218203R1

TUBE

INJECTION CYLINDER 6 - UNIT II AND III

1шт.

7

3132770R1

COLLAR

3шт.

7

3218241R1

CLAMP

MOULDED RUBBER INSERT

3шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

3шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

8

3132839R1

CLAMP

LOWER PART

1шт.

8

3218244R1

CLAMP

MOULDED RUBBER INSERT

1шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

9

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

HOLLOW M6

6шт.

10

3218122R1

LINE

LINE LEAK

1шт.

11

933696R1-

RING, PACKING

12шт.

12

3218248R2

NOZZLE CAP

UNIT I

6шт.

12

3218251R2

NOZZLE CAP

UNIT II AND III

6шт.

13

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

6шт.

14

3139182R1

PIPE

LINE, OVERFLOW

1шт.

15

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

COUPLING - UNIT I AND II

3шт.

15

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

COUPLING - UNIT III

4шт.

16

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

SEAL, UNIT I AND II

3шт.

16

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

SEAL, - UNIT III

4шт.

17

3056138R1

TEE,M8 Tube

UNION, U

1шт.

18

3055678R1

PLATE

BRACKET, ANGLE

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

1шт.

103321

LOCK WASHER,3/8"

1шт.

19

3055386R1

CLAMP

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

20

NSS

NOT SOLD SEPARAT

HOLDER, INJECTION NOZZLE

6шт.

21

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

22

3132838R1

BRACKET

1шт.

23

3218129R1

WASHER

6шт.

24

3059086R1

BANJO BOLT

SCREW, HOLLOW M12

1шт.

25

NSS

NOT SOLD SEPARAT

PUMP, INJECTION, NATURALLY ASPIRATED ENGINES

1шт.

25

3228698R91

PUMP

SPARE PART INJECTION - UNIT II AND III - 1056+XL

1шт.

103320

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

933981R1

NUT,M12 x 1.75, Cl 5

1шт.

933834R1

LOCK WASHER,M12

12 MM

1шт.

26

3055384R1

GASKET

1шт.

27

3056885R3

PINION

GEAR, INJECTION PUMP

1шт.

28

3055067R2

HUB

PUMP GEAR

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 X 19 MM

3шт.

29

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

2шт.

30

3218722R1

PIPE

LINE, OVERFLOW - A-1300 MM - UNIT I AND II - 955 : CHASSIS S/N 002550 UP TO XXX - 1055 : CHASSIS S/N 002812 UP TO XXX

1шт.

30

3228312R1

LINE

HOSE, OVERFLOW - A-888 MM - UNIT I AND II - 955 : CHASSIS S/N XXX - 1055 : UP TO CHASSIS S/N XXX

1шт.

30

3218095R2

PIPE

LINE OVERFLOW A-630 MM - UNIT I AND II - 955 : UP TO CHASSIS S/N 002549 - 1055 : UP TO CHASSIS S/N 002811

1шт.

31

3218128R1

RETAINER

6шт.

24477R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

6шт.

32

30183R1

WASHER,M8 x 21.5 x 2.5, HT

3шт.
