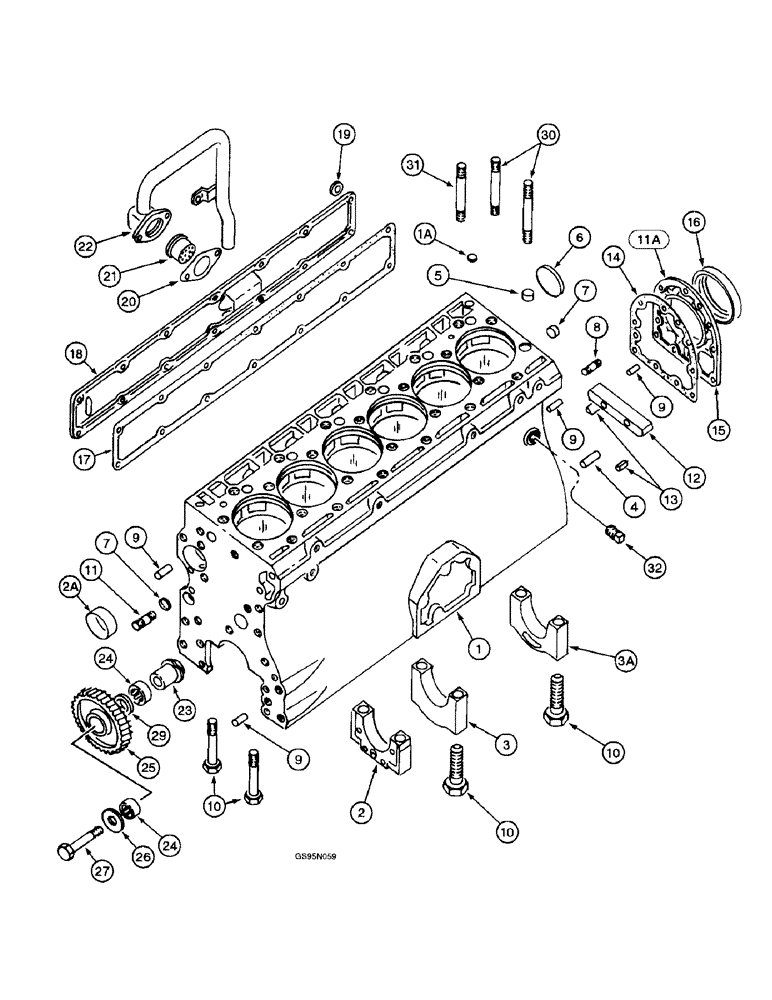

Запчасти Case IH D-310 (5-002) - CRANKCASE & RELATED PARTS/706 & 756 TRACTORS/95 COTTON HARVESTERS/715 COMBINES/782 COTTON PICKERS

3132724R95

CRANKCASE

ASSEMBLY - engine (Replaces crankcase assembly 3055991R92), Includes: Ref. 1 thru 10

1шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

1шт.

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 3144520R1)

5шт.

1

NSS

NOT SOLD SEPARAT

CRANKCASE - engine

1шт.

1a

3136004R1

COVER

PLUG - cup, 10 mm, closing

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - bearing, front, order crankcase assembly 3132724R95

1шт.

NSS

NOT SOLD SEPARAT

PIN - crankcase, order crankcase assembly 3132724R95

2шт.

2a

3055008R2

CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W

BEARING - camshaft front

1шт.

2a

1806820C1

CAMSHAFT BEARING,57.98mm ID x 63mm OD x 18mm W

BEARING - camshaft, standard, 63 mm OD, six used with camshaft 3055047R1, three used with camshaft 3227253R1 (Replaces bearing 3055009R2)

1шт.

2a

257779A1

CAMSHAFT BEARING

- camshaft, 64 mm OD, 1 mm oversize OD

1шт.

2a

257780A1

CAMSHAFT BEARING

- camshaft, 64 mm OD, 1 mm oversize OD

1шт.

2a

257781A1

CAMSHAFT BEARING,65 mm OD x 18 mm

- camshaft, 65 mm OD, 2 mm oversize OD

1шт.

2a

257782A1

CAMSHAFT BEARING

- camshaft, 65 mm OD, 2 mm oversize OD

1шт.

3144442R91

BEARING ASSY

KIT - crankshaft bearing cap, center, Includes: Ref. 3

1шт.

3144438R91

BEARING ASSY

KIT - crankshaft bearing cap, intermediate, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing, center, order kit 3144442R91

1шт.

3

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing, intermediate, order kit 3144438R91

1шт.

3144436R91

CRANKSHAFT BEARING

KIT - crankshaft bearing cap, rear, Includes: Ref. 3A

1шт.

3a

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing, rear, order kit 3144436R91

1шт.

4

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

5

3055007R1

BUSHING

- dowel

2шт.

6

41-3044

PLUG,Exp, 2 3/4"

1шт.

7

30591R1

PLUG,M25, Tapered

- cup, closing (Replaces plug 933537R1)

2шт.

8

3055270R1

STUD

- rear

1шт.

9

141242

DOWEL

PIN - dowel, 3/8 x 7/8 inch

4шт.

10

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

Crankshaft bearing cap

14шт.

11

3055989R2

STUD

- crankcase, front

1шт.

11a

3055216R1

RETAINER

- rear oil seal

1шт.

12

3055214R1

SUPPORT

STRIP - sealing

1шт.

13

714868R1

SEALING STRIP

- sealing

2шт.

14

3055215R3

GASKET

- crankshaft seal retainer

1шт.

15

3055216R1

RETAINER

- oil seal

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

8шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

9шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120634)

1шт.

16

3138701R91

SEAL

SEAL - oil

1шт.

17

3055392R3

GASKET,1.5mm Thk

- cover, side

1шт.

18

3055730R21

COVER

- side

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch

1шт.

Twelve used with all machines except 715 combines, 95 cotton harvesters and 782 cotton pickers; thirteen used with 715 combines; eleven used with 95 cotton harvesters; nine used with 782 cotton pickers (Replaces screw 179814).

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch (Replaces screw 179812)

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179815)

2шт.

413-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

- hex, 5/16 NC x 1-5/8 inch, used with 782 cotton pickers only (Replaces screw 179823)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

Twelve used with all machines except 715 combines, 95 cotton harvesters and 782 cotton pickers; thirteen used with 715 combines; eleven used with 95 cotton harvesters; fourteen used with 782 cotton pickers (Replaces washer 103320).

1шт.

19

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 21/64 x 3/4 x 3/32 inch, twelve used with all machines except 715 combines and 782 cotton pickers; thirteen used with 715 combines; eighteen used with 782 cotton pickers

1шт.

20

3138639R1

GASKET

- breather (Replaces gasket 3055359R1)

1шт.

21

3055324R92

HYDRAULIC OIL FILTER

ELEMENT - breather filter

1шт.

22

3055993R11

BREATHER

- used with all machines except 715 combines

1шт.

22

3218338R91

TUBE

BREATHER - oil, 715 combine

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

2шт.

3138687R1

RING

- packing

2шт.

23

3055373R1

CARRIER

- idler gear

1шт.

24

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

BEARING - needle (Replaces retainer 3136515R91)

2шт.

24

3136515R91

BEARING

RETAINER - needle bearing, no longer used, order bearing 3058816R91

2шт.

25

3055043R3

PINION

GEAR - idler

1шт.

When 3055043R21 is ordered, furnish (1) gear 3055043R3, Ref. 25; (1) bearing 3058816R91, Ref. 24 and (1) ring 787656R1, Ref. 27.

1шт.

26

3055372R1

DISC

RING - wear, idler gear

1шт.

27

3055374R2

BOLT

BOLT - idler gear carrier (Replaces bolt 3055374R1)

1шт.

29

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING - spacer, distance

1шт.

30

3055018R1

STUD

- cylinder head, used with crankcase 3055991R92

1шт.

31

3055006R1

STUD

- cylinder head, used with crankcase 3055991R92, no longer available

12шт.

32

118536

VALVE

COCK - drain (Replaces drain valve 3055248R91)

1шт.

32

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

- hexx, 3/8 inch PT (Replaces plug 20990R1)

1шт.
