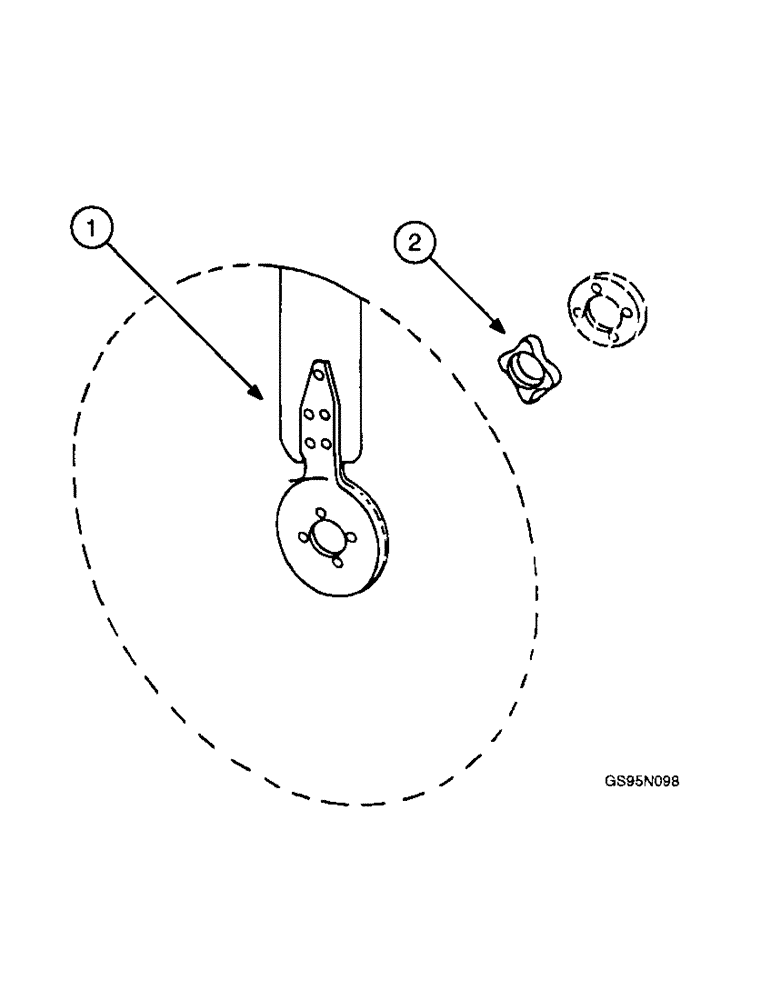

Запчасти Case IH D-310 (5-146) - FAN BLADES AND SPACER, 616 AND 622 COTTON PICKERS

1

A173710

FAN

- engine (Replaces fan 377049R91)

1шт.

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

(Replaces bolt 179805 Hex, 1/4"-20 x 2", G5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319 1/4"

4шт.

2

403335R1

SPACER

- engine fan blade

1шт.

672922R1

V-BELT,0.660" W

radiator fan drive, used with 616 and 622 Cotton Pickers with Belt Drive, no Longer Available 0.660" W

1шт.

530186R1

V-BELT,0.50" W

Fan, water pump drive and alternator generator, Used with 616 and 622 Cotton Pickers 0.50" W

1шт.

395539R1

V-BELT,0.50" W x 63.00" L

Fan, Water pump and alternator, Used with 715 combines 0.50" W x 63.00" L

1шт.

201092C1

BELT

V-BELT - Radiator fan drive, Used with 616 and 622 Cotton Pickers with hydrostatic transmission

1шт.

56969C91

KIT - belt, water pump and alternator generator, matched set, used with 95 Cotton Harvesters, no longer available

1шт.

130724C91

SET OF BELTS,0.50" W

Matched, V-Belt, Water pump and alternator, Used with 782 Cotton Pickers 0.50" W

1шт.
