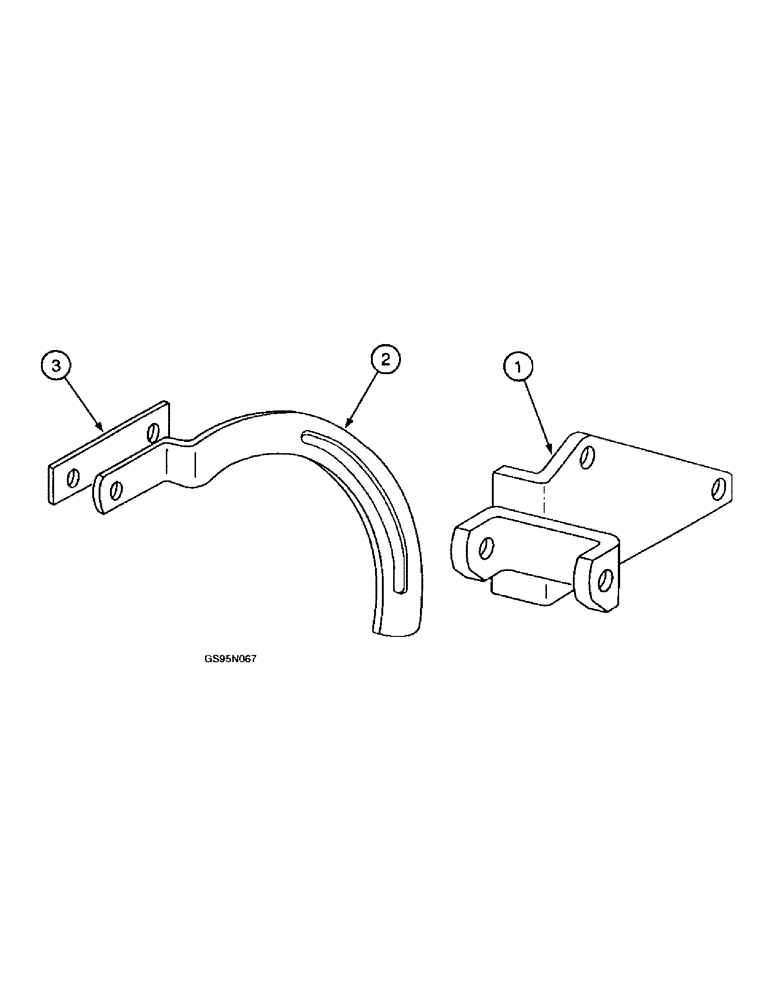

Запчасти Case IH D-310 (5-144) - ALTERNATOR-GENERATOR BRACKET, 782 COTTON PICKERS

1

3218048R2

SUPPORT

BRACKET - alternator-generator

1шт.

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

- hex, 5/16 NC x 4-3/4 inch (Replaces bolt 272401)

3шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

3шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

6шт.

717547R1

LOCK PIN,M16 x 18, Slotted

PIN - slotted spring

1шт.

2

3218047R2

SUPPORT

BRACE - alternator-generator

1шт.

3

3144970R1

PLATE

- distance

1шт.

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch (Replaces bolt 179829)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634R1)

1шт.
