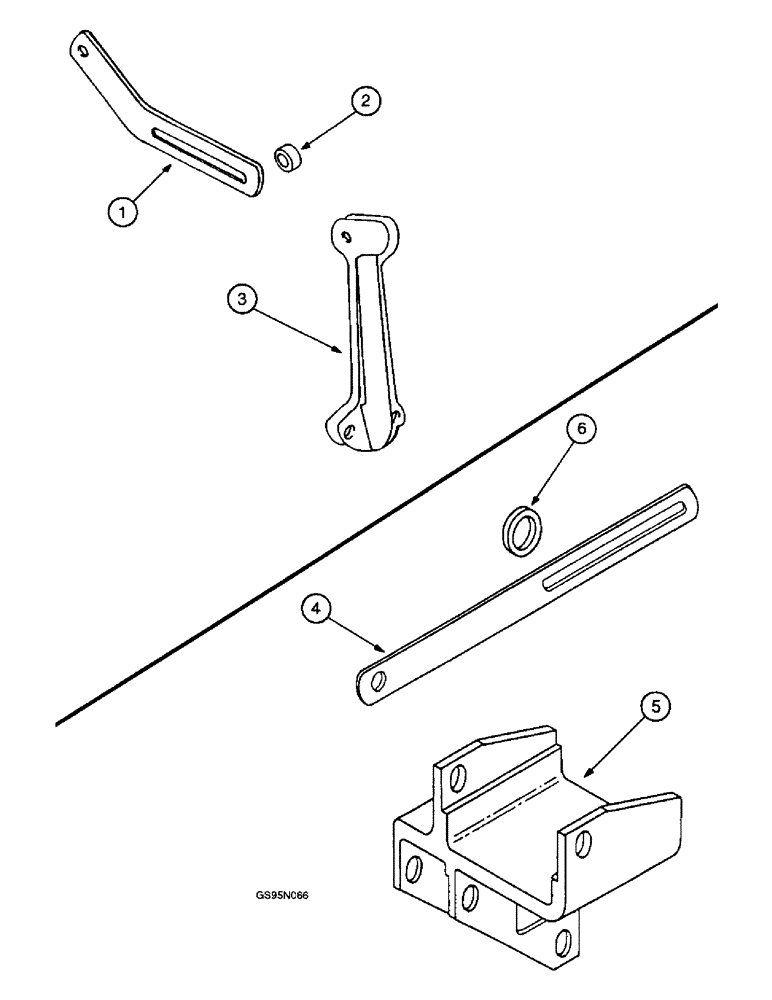

Запчасти Case IH D-310 (5-142) - ALTERNATOR BRACKET, FARMALL 706 TRACTORS W/ENGINE S/N 37273 & AFTER / GENERATOR BRACE, 706 TRACTORS

1

396359R2

BAR

BRACE - alternator-generator, Farmall 706 Tractors with Engine Serial Number 37237 and After

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (Replaces bolt 180081)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

2

280185R1

SPACER

- alternator-generator brace, not required for 715 combine, Farmall 706 Tractors with Engine Serial Number 37237 and After

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (Replaces screw 179820)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

3

3139173R91

BRACKET

- alternator-generator, no longer available (Replaces bracket 3132268R12), Farmall 706 Tractors with Engine Serial Number 37237 and After

1шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch (Replaces screw 179828)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

4

304018R1

BRACE

- generator, 706 Tractors

1шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces screw 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

1шт.

5

304317R1

BRACKET - generator rear mounting, no longer available, 706 Tractors

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 179818)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

6

280185R1

SPACER

- generator brace, 706 Tractors

1шт.
