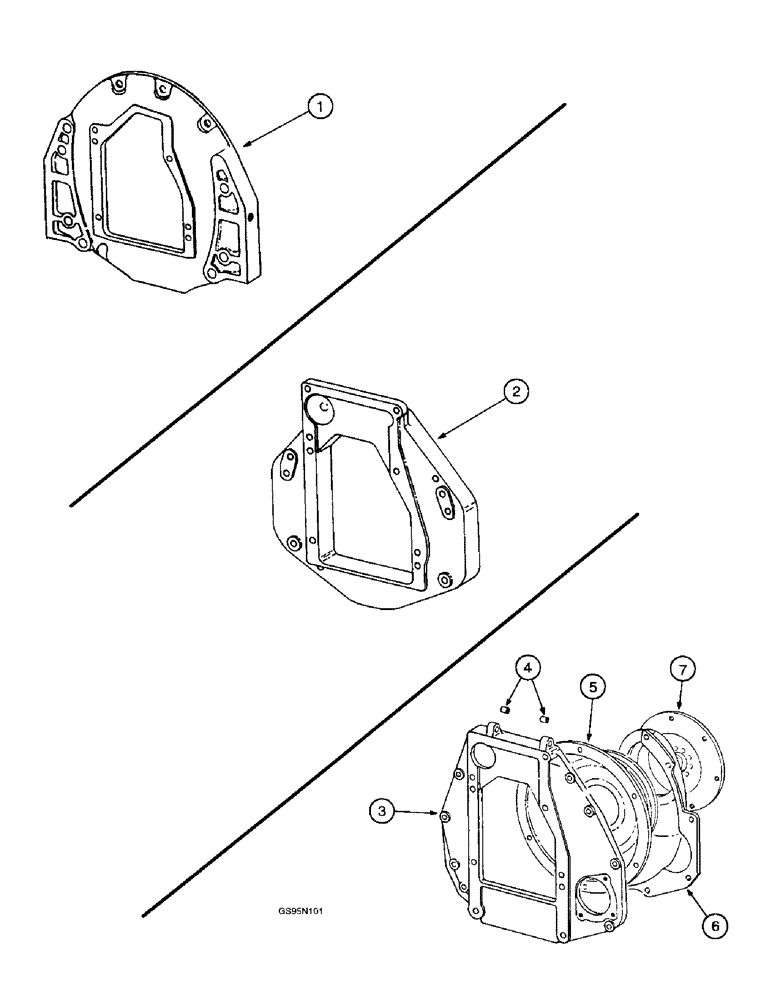

Запчасти Case IH D-310 (5-136) - FLYWHEEL HOUSING, 95 COTTON HARVESTERS, 686 & HYDRO 86 TRACTORS, 782 COTTON PICKERS

1

3144250R1

CASE

HOUSING - flywheel, no longer available, 95 Cotton Harvesters

1шт.

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

BOLT - hex, 1/2 NC x 1-3/8 inch (Replaces bolt 179884)

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

4шт.

2

3218727R1

PLATE

HOUSING - flywheel, no longer available, 686 & Hydro 86 Tractors

1шт.

413-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

BOLT - hex, 1/2 NC x 1-5/8 inch (Replaces bolt 179886)

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

4шт.

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

BOLT - hex, 1/2 NC x 1-3/8 inch (Replaces bolt 179884)

4шт.

3

3136059R22

PLATE ASSY.

HOUSING ASSEMBLY - flywheel, 782 Cotton Pickers

1шт.

4

3136060R2

BUSHING

BUSHING - flywheel housing

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

BOLT, (Replaces bolt 179885) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 3050128R1) 1/2"

4шт.

5

130773C2

PULLEY

PULLEY - fan drive

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - hex, 3/8 NC x 1-1/2 inch (Replaces bolt 179843)

6шт.

492-11038

LOCK WASHER,3/8"

LOCK WASHER, , used to attach fan drive pulley to flywheel assembly (Replaces washer 120382) 3/8"

6шт.

6

131428C92

CASE

HOUSING - clutch (Replaces housing 130744C92)

1шт.

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

BOLT - hex, 1/2 NC x 3-1/4 inch (Replaces bolt 179894)

3шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

BOLT - hex, 1/2 NC x 4 inch (Replaces bolt 179897)

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

5шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 102637) 1/2"-13, G5

5шт.

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, hardened

2шт.

7

107691C92

LARGE PLATE

PLATE, LARGE PLATE - hydro drive

1шт.

7

107691C92R

REMAN-CLUTCH PLATE

Clutch Plate; For N.A. only

1шт.

7

107691C92C

CORE-CLUTCH PLATE

Return number - For N.A. only

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT - hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
