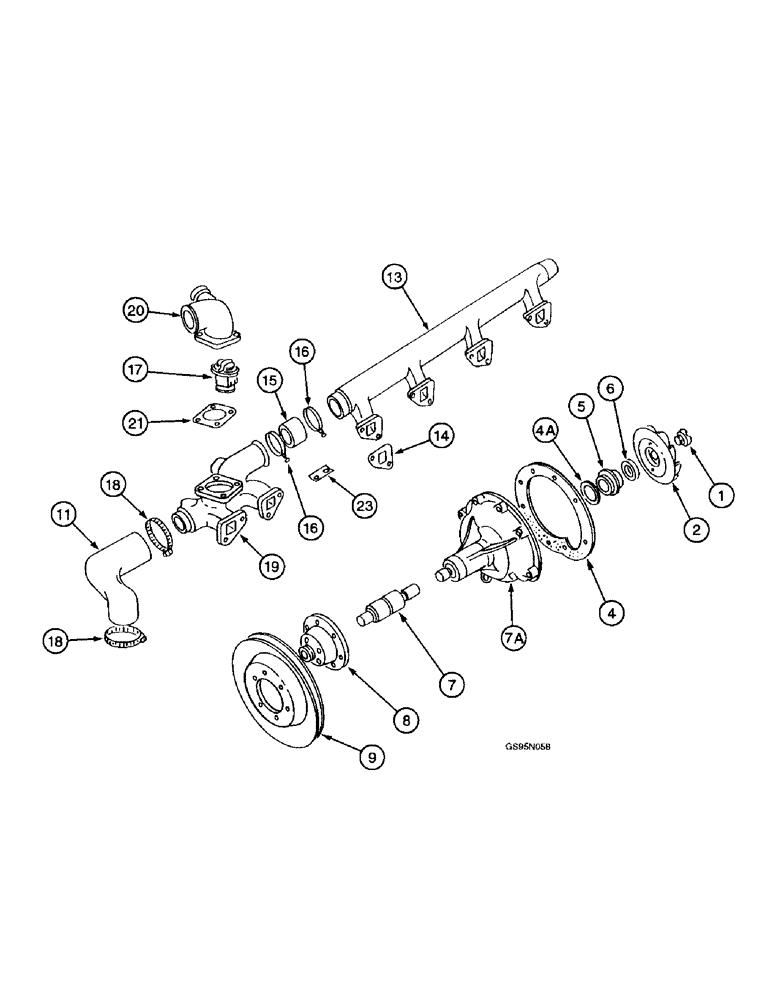

Запчасти Case IH D-310 (5-134) - THERMOSTAT AND WATER PUMP, 616 AND 622 COTTON PICKERS WITH ENGINE SERIAL NUMBER 55-P-1 AND AFTER

3132742R93

PUMP

PUMP ASSEMBLY- water, new, no longer available, Includes: Ref. 1 - 8

1шт.

735101C91

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

1928121C1

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

1

3055308R1

PLUG

PLUG - closing

1шт.

2

787579R2

IMPELLER

IMPELLER - pump, water

1шт.

3055285R94

GASKET KIT

KIT - water pump reconditioning, Includes: Ref. 4 - 6

1шт.

4

3055177R3

GASKET

GASKET - water pump

1шт.

4a

3055260R1

O-RING

SEAL - ring, order kit 3055285R94

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - impeller rear, order kit 3055285R94

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - pump shaft, order kit 3055285R94

1шт.

3132677R41

BODY

BODY ASSEMBLY - water pump, will work for 3132677R31, Includes: Ref. 7 - 7A

1шт.

7

3218774R91

HUB

SPARE PART BEARING - water pump, used with housing 3144609R2

1шт.

To identify water pump housing, measure outside diameter of cylindrical neck of water pump housing. Housing 3132677R3 measures 55 mm. Housing 3144609R2 measures 70 mm.

1шт.

7

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

BEARING - water pump, used with housing 3132677R3

1шт.

To identify water pump housing, measure outside diameter of cylindrical neck of water pump housing. Housing 3132677R3 measures 55 mm. Housing 3144609R2 measures 70 mm.

1шт.

7a

NSS

NOT SOLD SEPARAT

BODY - water pump, order body assembly 3144662R92

1шт.

8

3055717R1

HUB

HUB - water pump pulley

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - hex, 5/16 NC x 1-1/2 inch (Replaces bolt 179822)

7шт.

61-33122

HEX SOC SCREW,5/16"-18 x 1 3/8"

SCREW - cap, hex socket, 5/16 NC x 1-3/8 inch (Replaces bolt 28301R1)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

8шт.

9

3055718R1

PULLEY

PULLEY - water pump

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

BOLT - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

6шт.

11

3059674R1

HOSE,40.00 mm ID

HOSE - thermostat to water channel

1шт.

13

3059669R1

MANIFOLD

PIPE - water collecting

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

SPRING WASHER, , Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

8шт.

425-115

NUT,5/16"-24, G5

NUT - hex, 5/16 inch NF (Replaces nut 103025)

8шт.

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT (Replaces plug 444667)

2шт.

221-841

PLUG

PLUG - hex socket, 1/4 inch PT (Replaces plug 103884)

1шт.

3138687R1

RING

RING - packing (Replaces ring 3136506R1)

1шт.

14

3055306R3

GASKET,1.5mm Thk

GASKET - manifold, water collecting pipe

6шт.

15

3059673R1

HOSE,42 mm ID x 50.00 mm

Cut from bulk hose 407005R1 below

1шт.

Cut P/N 3055269R1 Hose, from bulk hose 407005R1.

1шт.

16

610320C1

CLAMP

CLAMP - spring wire hose, No. 30 Type E, thermostat to water pipe

2шт.

17

3228046R1

THERMOSTAT

THERMOSTAT - coolant, 180 - 203 degree Fahrenheit

1шт.

18

610320C1

CLAMP

CLAMP - spring wire hose, No. 30 Type E, water channel connection

2шт.

19

3059670R2

HOUSING

HOUSING - thermostat

1шт.

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT (Replaces plug 444667)

3шт.

20

3059671R2

ELBOW

OUTLET - thermostat, no longer available

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, (Replaces bolt 179847) Hex, 3/8"-16 x 2", G5

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

495-51041

WASHER,3/8"

WASHER - flat, 13/32 x 47/64 x 1/16 inch (Replaces washer Q1597)

2шт.

21

3059672R2

GASKET

GASKET - water outlet

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

SPRING WASHER, , Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

4шт.

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC (Replaces nut 102634)

4шт.

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

BOLT - hex, 5/16 NC x 3-1/2 inch (Replaces bolt 186270)

4шт.

23

3132681R1

SHIELD

PLATE - connecting hose guard

1шт.

407005R1

HOSE

HOSE - bulk, 36 inch (914 mm) long

1шт.

Use for Ref. 15, Thermostat to water pipe hose.

1шт.
