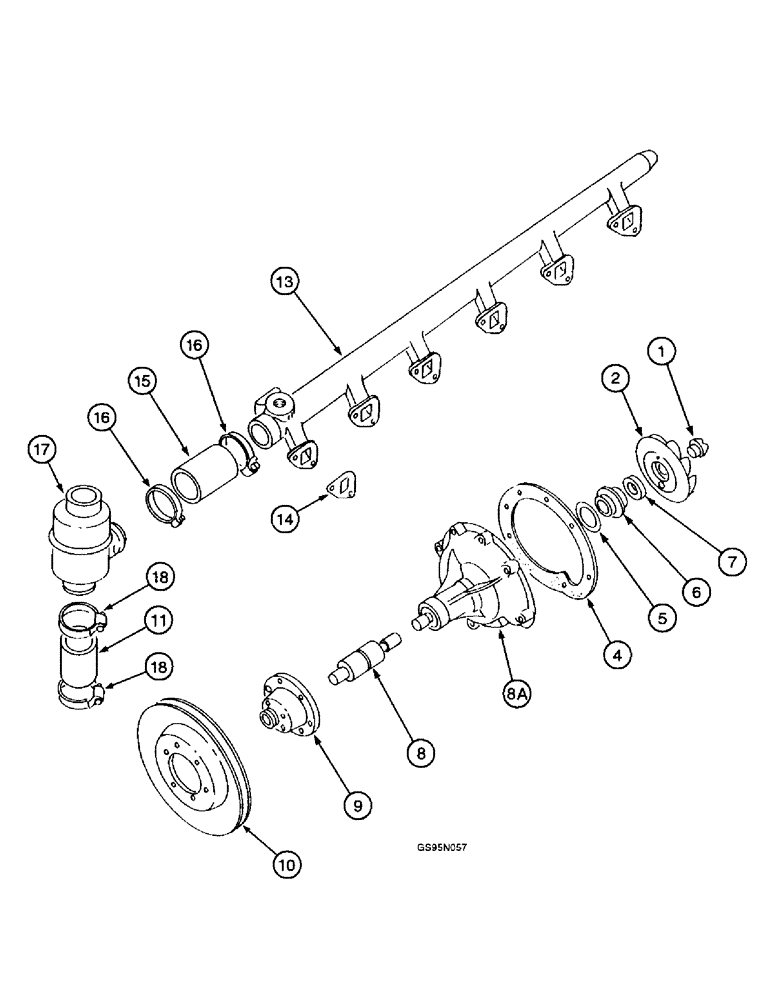

Запчасти Case IH D-310 (5-132) - THERMOSTAT AND WATER PUMP, 616 AND 622 COTTON PICKERS WITH ENGINE SERIAL NUMBERS PRIOR TO 55-P-1

3132742R93

PUMP

PUMP ASSEMBLY - water, new, will work for 3055716R91, no longer available, Includes: Ref. 1 - 9

1шт.

735101C91

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

1928121C1

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

1

3055308R1

PLUG

PLUG - closing

1шт.

2

787579R2

IMPELLER

IMPELLER - water pump

1шт.

3055285R94

GASKET KIT

KIT - water pump reconditioning, Includes: Ref. 4 - 7

1шт.

4

3055177R3

GASKET

GASKET - water pump

1шт.

5

3055260R1

O-RING

SEAL - ring, order kit 3055285R94

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - impeller rear, order kit 3055285R94

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - pump shaft, order kit 3055285R94

1шт.

3132677R41

BODY

BODY ASSEMBLY - water pump, will work for 3055190R11 and 3132677R31, Includes: Ref. 8 - 8A

1шт.

8

3218774R91

HUB

SPARE PART BEARING - water pump, used with housing 3144609R2

1шт.

To identify water pump housing, measure outside diameter of cylindrical neck of water pump housing. Housing 3132677R3 measures 55 mm. Housing 3144609R2 measures 70 mm.

1шт.

8

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

BEARING - water pump, used with housing 3132677R3

1шт.

To identify water pump housing, measure outside diameter of cylindrical neck of water pump housing. Housing 3132677R3 measures 55 mm. Housing 3144609R2 measures 70 mm.

1шт.

8a

NSS

NOT SOLD SEPARAT

BODY - water pump, order body assembly 3144662R92

1шт.

9

3055717R1

HUB

HUB - water pump pulley

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - hex, 5/16 NC x 1-1/2 inch (Replaces bolt 179822)

7шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

8шт.

61-33122

HEX SOC SCREW,5/16"-18 x 1 3/8"

SCREW - cap, hex socket, 5/16 NC x 1-3/8 inch (Replaces bolt 28301R1)

1шт.

10

3055718R1

PULLEY

PULLEY - water pump

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

6шт.

11

3055269R1

HOSE

HOSE - thermostat to water channel connecting, 2 inch (7 mm) long

1шт.

Cut P/N 3055269R1 Hose, from bulk hose 407004R1.

1шт.

13

3132435R1

MANIFOLD

MANIFOLD - water collecting, will work for 3055256R2

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

SPRING WASHER, , Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

12шт.

425-115

NUT,5/16"-24, G5

NUT - hex, 5/16 inch NF (Replaces nut 103025)

12шт.

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

PLUG, (Replaces plug 444630) Hex Hd, 1/2"-14

1шт.

14

3055306R3

GASKET,1.5mm Thk

GASKET - manifold, water collecting pipe

6шт.

15

3055305R1

HOSE,70.00 mm

Thermostat to Water Pipe

1шт.

16

610320C1

CLAMP

CLAMP - spring wire hose, No. 30 Type E, thermostat to water pipe

2шт.

17

3055304R92

THERMOSTAT

THERMOSTAT - 180 - 200 degree Fahrenheit

1шт.

18

610320C1

CLAMP

CLAMP - spring wire hose, No. 30 Type E, water channel connecting hose

2шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

SPRING WASHER, , Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

8шт.

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC (Replaces nut 102634)

4шт.

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

BOLT - hex, 5/16 NC x 3-1/2 inch (Replaces bolt 186270)

4шт.

407004R1

HOSE

HOSE - bulk, 36 inch (914 mm) long

1шт.

Use for Ref. 11, Thermostat to channel connecting hose.

1шт.
