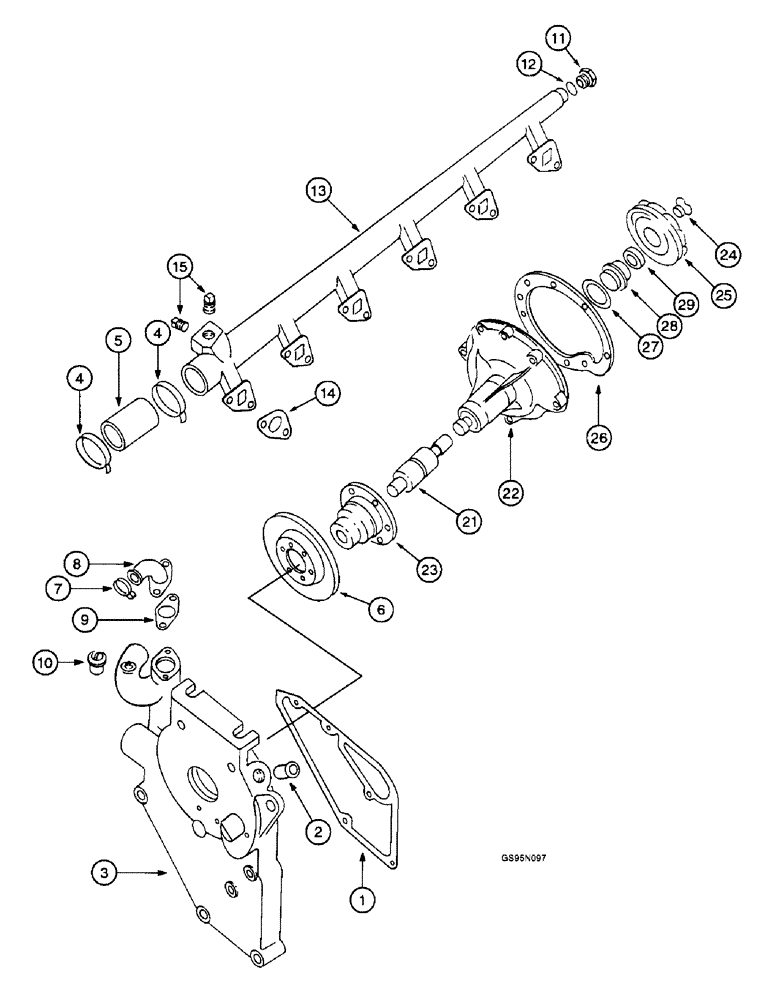

Запчасти Case IH D-310 (5-128) - THERMOSTAT & WATER PUMP, 706 & 756 TRACTORS S/N 52-P-728 & AFTER, 95/715/782/686 & HYDRO 86

3132676R93

PUMP, WATER

PUMP ASSEMBLY - water, new, Includes: Ref. 21 - 29

1шт.

To identify water pump housing, measure outside diameter of cylindrical neck of water pump housing. Housing 3132677R3 measures 55 mm. Housing 3144609R2 measures 70 mm.

1шт.

735097C91

REMAN-WATER PUMP

Remanufactured PUMP ASSEMBLY - water, component parts do not apply to the remanufactured assembly

1шт.

1928115C1

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

3055999R3

GASKET

GASKET - water pump carrier

1шт.

2

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

(Replaces plug 445686)

1шт.

3

3136678R2

COVER

CARRIER - water pump

1шт.

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

Ttwo used with 782 cotton pickers, 686 and hydro 86 tractors (Replaces bolt 186270)

5шт.

425-105

NUT,5/16"-18, G5

(Replaces nut 102634)

2шт.

492-11031

LOCK WASHER,5/16"

(Replaces washer 103320)

6шт.

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

(Replaces plug 444630)

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

Used with 782 cotton pickers, 686 and hydro 86 tractors

3шт.

4

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

Hose to thermostat water channel (Replaces clamps 610320C1, 3144921R1 and 3218259R1)

2шт.

5

3132912R1

HOSE,50.70 mm ID x 112.00 mm

Connecting

1шт.

6

3055718R1

PULLEY

Water pump, used with all machines except 95 cotton harvesters and 782 cotton pickers

1шт.

6

3055179R1

PULLEY

Water pump, used with 95 cotton harvesters

1шт.

6

3139290R1

PULLEY

Water pump, used with 782 cotton pickers

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

(Replaces screw 179814)

6шт.

492-11031

LOCK WASHER,5/16"

(Replaces washer 103320)

6шт.

7

594183C1

CLAMP,10.2mm - 16mm

(Replaces clamps 81448H and 996261R91)

1шт.

8

3132909R1

ELBOW

Water outlet, used with all machines except 715 combines

1шт.

8

3132142R2

FLANGE

Water outlet, used with 715 combines

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840)

2шт.

92-11038

LOCK WASHER,3/8"

(Replaces washer 103321)

2шт.

9

3059672R2

GASKET

Water outlet

1шт.

10

3228046R1

THERMOSTAT

Coolant, 180 - 194 degree Fahrenheit (Replaces thermostat 3059676R91)

1шт.

11

712616R1

PLUG,Hex, M14 x 1.5

1шт.

12

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

1шт.

13

3132435R1

MANIFOLD

Water collecting

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

(Replaces washer 933570R1)

12шт.

425-115

NUT,5/16"-24, G5

(Replaces nut 103025)

12шт.

14

3055306R3

GASKET,1.5mm Thk

Manifold, water collecting pipe

6шт.

15

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

(Replaces plug 444630)

2шт.

3144662R92

X

BODY ASSEMBLY - water pump, will work for 3132677R21, Includes: Ref. 21 & 22

1шт.

21

3218774R91

HUB

SPARE PART BEARING - water pump, used with housing 3144609R2 (Replaces bearing 3144445R1)

1шт.

21

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

Water pump, used with housing 3132677R3

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - water pump, order body assembly 3144662R92

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Replaces bolt 179822)

7шт.

492-11031

LOCK WASHER,5/16"

(Replaces washer 3050129R1)

8шт.

61-33122

HEX SOC SCREW,5/16"-18 x 1 3/8"

(Replaces bolt 28301R1)

1шт.

23

3132678R1

HUB

Water pump pulley

1шт.

24

3055308R1

PLUG

Closing

1шт.

25

787579R2

IMPELLER

Water pump

1шт.

26

3055177R3

GASKET

Water pump

1шт.

3055285R94

GASKET KIT

Water pump reconditioning, Includes: Ref. 27 - 29

1шт.

27

3055260R1

O-RING

SEAL - ring, order kit 3055285R94

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - pump shaft, order kit 3055285R94

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - impeller rear, order kit 3055285R94

1шт.
