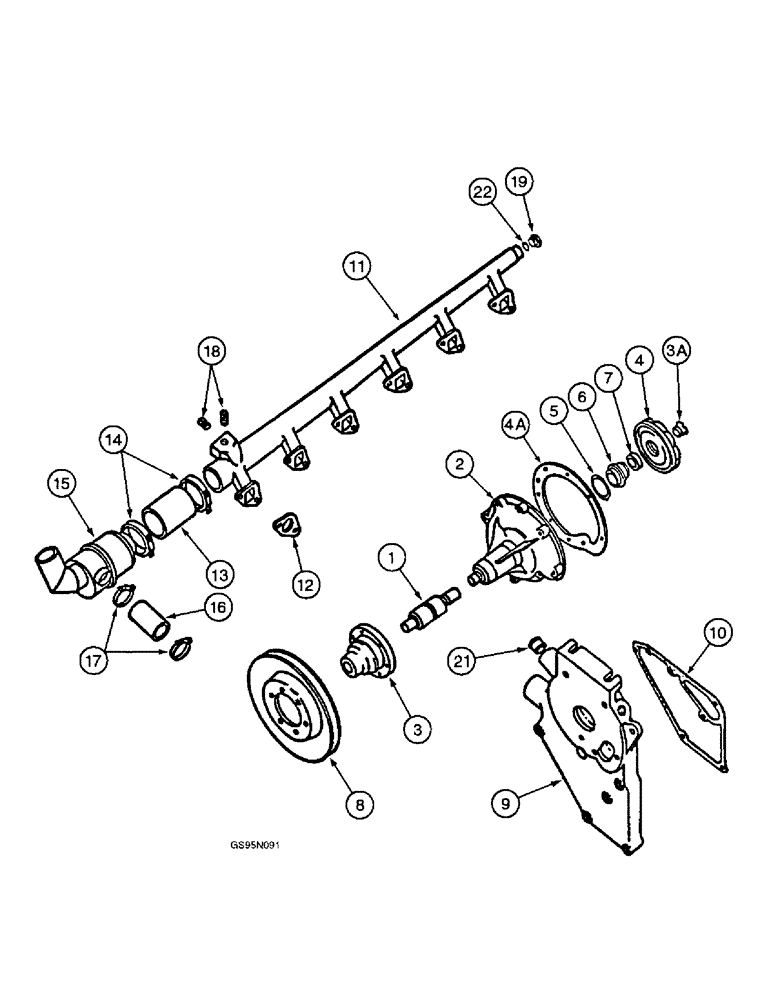

Запчасти Case IH D-310 (5-126) - THERMOSTAT AND WATER PUMP, 706 AND 756 TRACTORS WITH ENGINE NUMBERS PRIOR TO 52-P-728

3132676R93

PUMP, WATER

PUMP ASSEMBLY - water, new, Includes: Ref. 1 - 7

1шт.

To identify water pump housing, measure outside diameter of cylindrical neck of water pump housing. Housing 3132677R3 measures 55 mm. Housing 3144609R2 measures 70 mm.

1шт.

735097C91

REMAN-WATER PUMP

Remanufactured PUMP ASSEMBLY - water, component parts do not apply to the remanufactured assembly

1шт.

1928115C1

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

3144662R92

X

BODY ASSEMBLY - water pump, will work for 3132677R21, Includes: Ref. 1 & 2

1шт.

1

3218774R91

HUB

SPARE PART BEARING - water pump, used with housing 3144609R2

1шт.

1

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

BEARING - water pump, used with housing 3132677R3

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - water pump, order body assembly 3144662R92

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - hex, 5/16 NC x 1-1/2 inch (Replaces bolt 179822)

9шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

8шт.

3

3132678R1

HUB

HUB - water pump pulley

1шт.

3a

3055308R1

PLUG

PLUG - closing

1шт.

4

787579R2

IMPELLER

IMPELLER - water pump

1шт.

4a

3055177R3

GASKET

GASKET - water pump

1шт.

3055285R94

GASKET KIT

KIT - water pump reconditioning, Includes: Ref. 5 - 7

9шт.

5

3055260R1

O-RING

SEAL - ring, order kit 3055285R94

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - pump shaft, order kit 3055285R94

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - impeller rear, order kit 3055285R94

1шт.

8

3055718R1

PULLEY

PULLEY - water pump

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

6шт.

9

3056000R1

SPARE PART CARRIER - water pump, no longer available, order thermostat 3228046R1, gasket 3059672R1, hose 3132912R1, carrier 3136678R2, plug 20972R1, elbow 3132142R2 (715 combines) or elbow 3132909R1 (all other machines)

1шт.

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

BOLT - hex, 5/16 NC x 3-1/2 inch (Replaces bolt 186270)

5шт.

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC (Replaces nut 102634)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

6шт.

10

3055999R4

GASKET

GASKET - injection pump cover (Replaces gasket 3055141R1)

1шт.

11

3132435R1

MANIFOLD

MANIFOLD - water collecting

1шт.

425-115

NUT,5/16"-24, G5

NUT - hex, 5/16 inch NF (Replaces nut 103025)

12шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

SPRING WASHER, , Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

12шт.

12

3055306R3

GASKET,1.5mm Thk

GASKET - manifold, water collecting pipe

6шт.

13

3055267R1

HOSE,50.00 mm

Connecting, Cut from Bulk Hose 407004R1

1шт.

14

610320C1

CLAMP

CLAMP - spring wire hose, No. 30 Type E, thermostat to water pipe

2шт.

15

3055998R92

THERMOSTAT

THERMOSTAT - 180 - 194 degree Fahrenheit

1шт.

16

3055269R1

HOSE

HOSE - thermostat to water channel, connecting, 2 inch (7 mm) long, cut from bulk hose 407004R1

1шт.

17

610320C1

CLAMP

CLAMP - spring wire hose, No. 30 Type E

2шт.

18

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

PLUG, (Replaces plug 444630) Hex Hd, 1/2"-14

2шт.

19

712616R1

PLUG,Hex, M14 x 1.5

PLUG, - Filler Hex, M14 x 1.5

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - hex, 5/16 NC x 1-1/2 inch (Replaces bolt 179822)

8шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

SPRING WASHER, , Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

8шт.

21

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex socket, 3/8 inch PT (Replaces plug 445686)

1шт.

22

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

SEALING WASHER, , Packing M14 x 18 x 1.5

1шт.

407004R1

HOSE

HOSE - bulk, 36 inch (914 mm) long

1шт.
