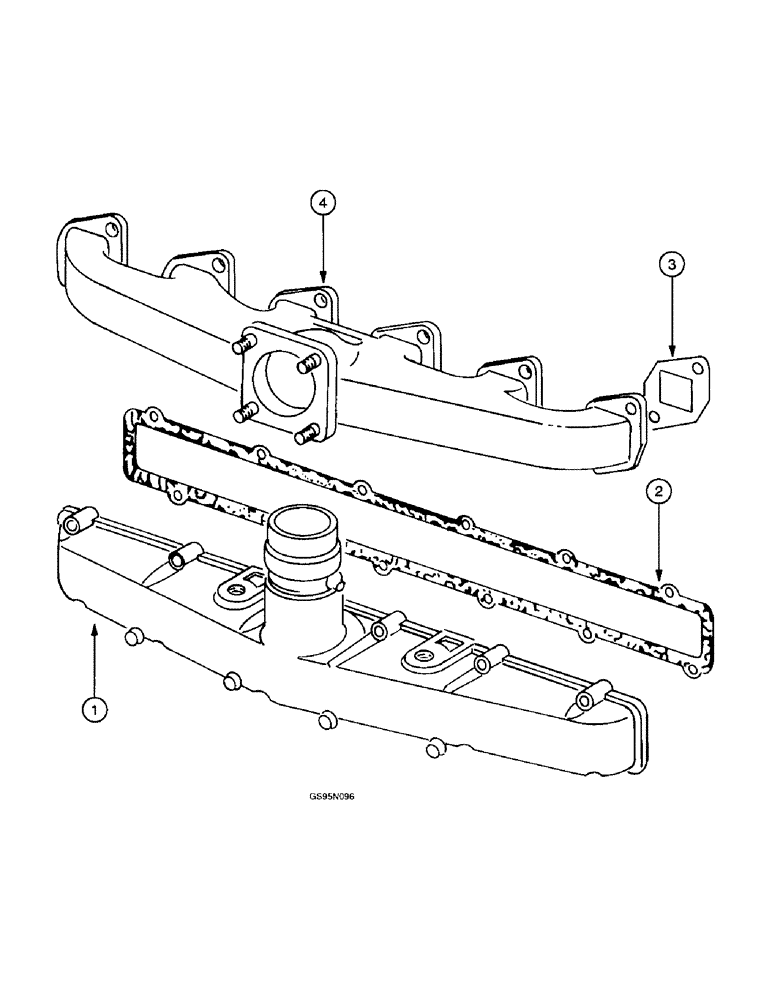

Запчасти Case IH D-310 (5-124) - INTAKE & EXHAUST MANIFOLD, 616 & 622 COTTON PICKERS, 95 COTTON HARVESTER, 782 COTTON PICKER

1

3055275R4

MANIFOLD

- intake, no longer available

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch (Replaces bolt 179822)

12шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

12шт.

3136229R1

PLUG,7/8" - 14

- closing

2шт.

933945R1

SEALING RING,M23 x 28 x 2.5

RING - packing

2шт.

2

3055399R2

MANIFOLD GASKET,1.5mm Thk

- intake manifold

1шт.

3

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

6шт.

4

3055125R12

MANIFOLD

ASSEMBLY - exhaust, Includes: Stud Listed Below

1шт.

3228189R1

STUD

- exhaust manifold (Replaces studs 3218586R1 and 3055663R1)

4шт.

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch (Replaces washer 20285H)

12шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF (Replaces nut 103026)

12шт.
