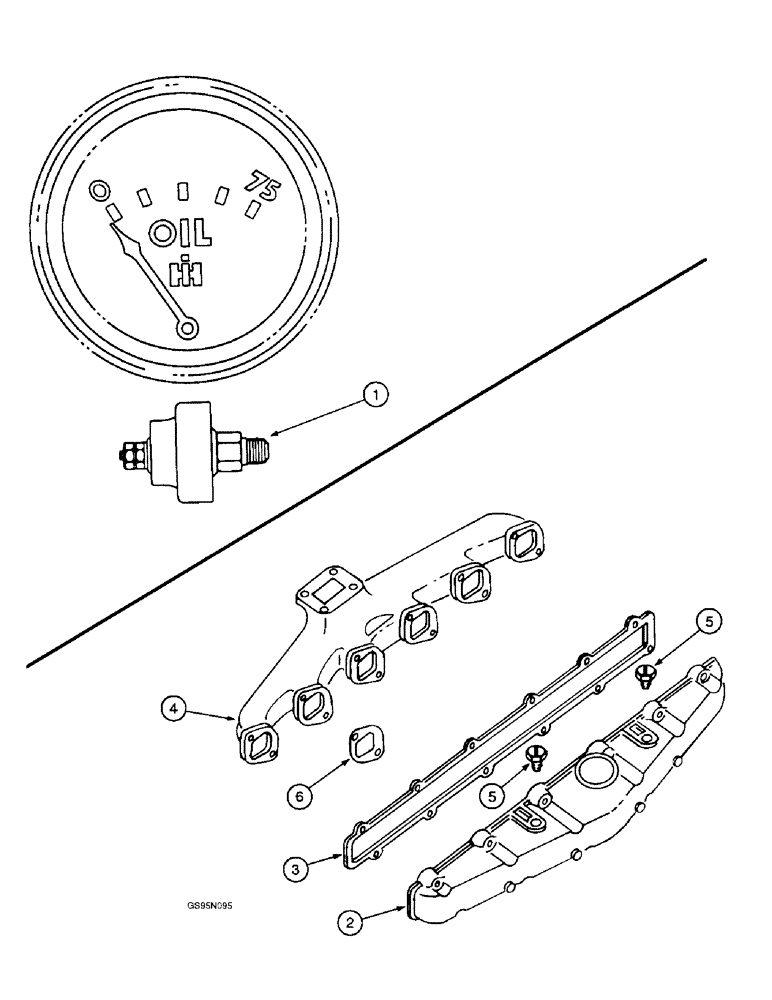

Запчасти Case IH D-310 (5-122) - OIL PRESSURE SWITCH / INTAKE AND EXHAUST MANIFOLD, 706, 756, 686 & HYDRO 86 TRACTORS, 715 COMBINES

1

392249R92

SWITCH

- low engine oil pressure lamp, all machines except 616 and 622 cotton pickers

1шт.

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 PT x 1/8 inch PT (Replaces adapters 141539 and 112877)

1шт.

1

104342A1

SENDER UNIT

SWITCH - engine oil pressure, 616 CH 501M thru CH 585N, 622 CH 501M thru CH1039N (Replaces switch 665014R91)

1шт.

1

201457C1

GAUGE ASSY.

SWITCH - engine oil pressure, 616 CH 000586 and after, 622 CH 001040 and after

1шт.

2

3055275R4

MANIFOLD

- intake, no longer available, 706, 756, 686 & Hydro 86 Tractors, 715 Combines

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch (Replaces bolt 179822)

12шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

12шт.

3

3055399R2

MANIFOLD GASKET,1.5mm Thk

- intake manifold

1шт.

4

3055944R12

MANIFOLD

ASSEMBLY - exhaust, 706, 756, 686 & Hydro 86 Tractors, 715 Combines

1шт.

3228189R1

STUD

- exhaust manifold (Replaces stud 3055663R1)

4шт.

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch (Replaces washer 20285H)

12шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF (Replaces nut 103026)

12шт.

5

3136229R1

PLUG,7/8" - 14

- closing

2шт.

933945R1

SEALING RING,M23 x 28 x 2.5

RING - packing

2шт.

6

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

6шт.
