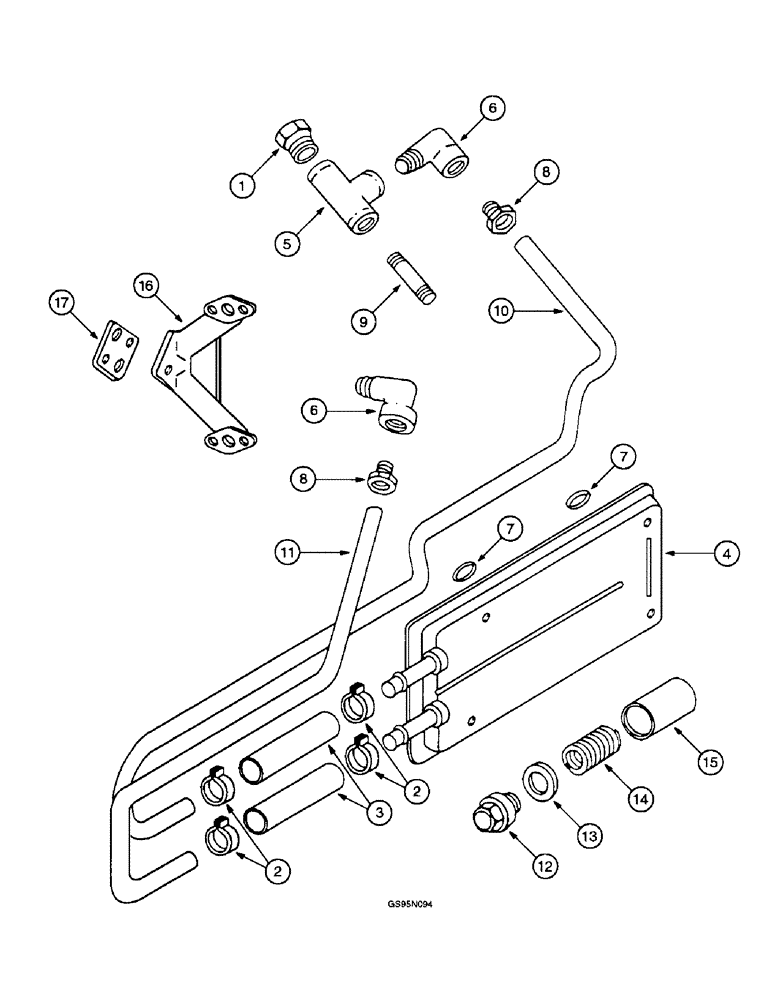

Запчасти Case IH D-310 (5-120) - ENGINE OIL COOLER AND CONNECTIONS, 715 COMBINES

1

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

(Replaces plug 444630) Hex Hd, 1/2"-14

1шт.

2

3143364R1

CLAMP,19mm - 23mm

- hose

4шт.

3

3136370R1

HOSE,16.00 mm ID x 65.00 mm

- Connecting 16.00 mm ID x 65.00 mm

2шт.

4

3228132R1

COOLER

- oil (Replaces oil cooler 279212R92)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 1/16 inch (Replaces washer 103340)

4шт.

5

144085

TEE,1/2" NPT, Fem

- 1/2 inch pipe

1шт.

6

56445D

ELBOW,90 Degree x 1/2" NPT x 7/8"-18

- 90 degree male pipe, 5/8 x 1/2 inch NPT

2шт.

7

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

8

222-507

TUBE NUT,7/8"-18

NUT - tube, 5/8 inch

2шт.

9

192076

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2 NPT x 2 inch

1шт.

10

3218343R1

TUBE

PIPE - oil cooler to water pump

1шт.

11

3144601R2

PIPE

- oil cooler to thermostat housing

1шт.

12

3138581R1

PLUG

- relief valve, no longer available

1шт.

13

3058431R1

COPPER WASHER

RING - relief valve plug packing

1шт.

14

279163R1

SPRING

- relief valve

1шт.

15

251400R1

VALVE

- pressure relief

1шт.

16

3136403R1

ELBOW

MANIFOLD - oil cooler

1шт.

712076R1

STUD - manifold, no longer available

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch (Replaces bolt 179842)

1шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

(Replaces nut 114503) Jam, 3/8"-16, G5

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer, Conical M10.2 ID x 20 OD x 1.1 Thk

2шт.

17

3136404R2

GASKET

- oil cooler manifold

1шт.
