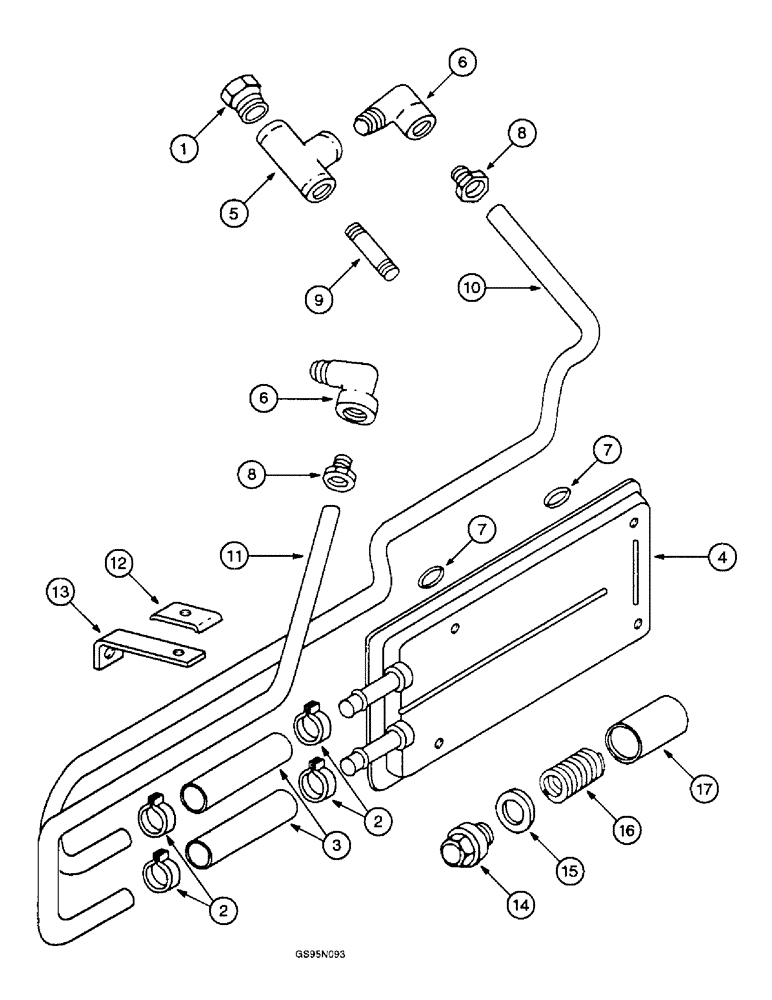

Запчасти Case IH D-310 (5-118) - ENGINE OIL COOLER AND CONNECTIONS, 95 COTTON HARVESTERS, 782 COTTON PICKERS

1

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

(Replaces plug 444630) Hex Hd, 1/2"-14

1шт.

2

3143364R1

CLAMP,19mm - 23mm

- hose (Replaces clamp 3138689R1)

6шт.

3

3136370R1

HOSE,16.00 mm ID x 65.00 mm

- Connection 16.00 mm ID x 65.00 mm

2шт.

4

3228132R1

COOLER

- oil (Replaces cooler 279212R92)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 1/16 inch, hardened (Replaces washer 103340)

4шт.

5

144085

TEE,1/2" NPT, Fem

- 1/2 inch pipe

1шт.

6

56445D

ELBOW,90 Degree x 1/2" NPT x 7/8"-18

- 90 degree male pipe, 5/8 x 1/2 inch NPT

2шт.

7

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

8

222-507

TUBE NUT,7/8"-18

NUT - tube, 5/8 inch

2шт.

9

192076

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2 NPT x 2 inch

1шт.

10

3136387R1

PIPE

- oil cooler to water carrier, all machines except 782 cotton pickers

1шт.

10

3218231R1

TUBE

PIPE - oil cooler to water carrier, 782 cotton picker, no longer available (Replaces pipe 3218586R1)

1шт.

11

3144753R1

PIPE

- oil cooler to water manifold

1шт.

12

3136389R1

CLAMP - oil cooler, no longer available

1шт.

13

3136388R1

ANGLE

SUPPORT - pipe, no longer available

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 109084)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

14

3138581R1

PLUG

- relief valve, no longer available

1шт.

15

3058431R1

COPPER WASHER

RING - relief valve plug packing

1шт.

16

279163R1

SPRING

- relief valve

1шт.

17

251400R1

VALVE

- pressure relief

1шт.

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

(Replaces screw 179799) Hex, 1/4"-20 x 1 1/4", G5

1шт.
