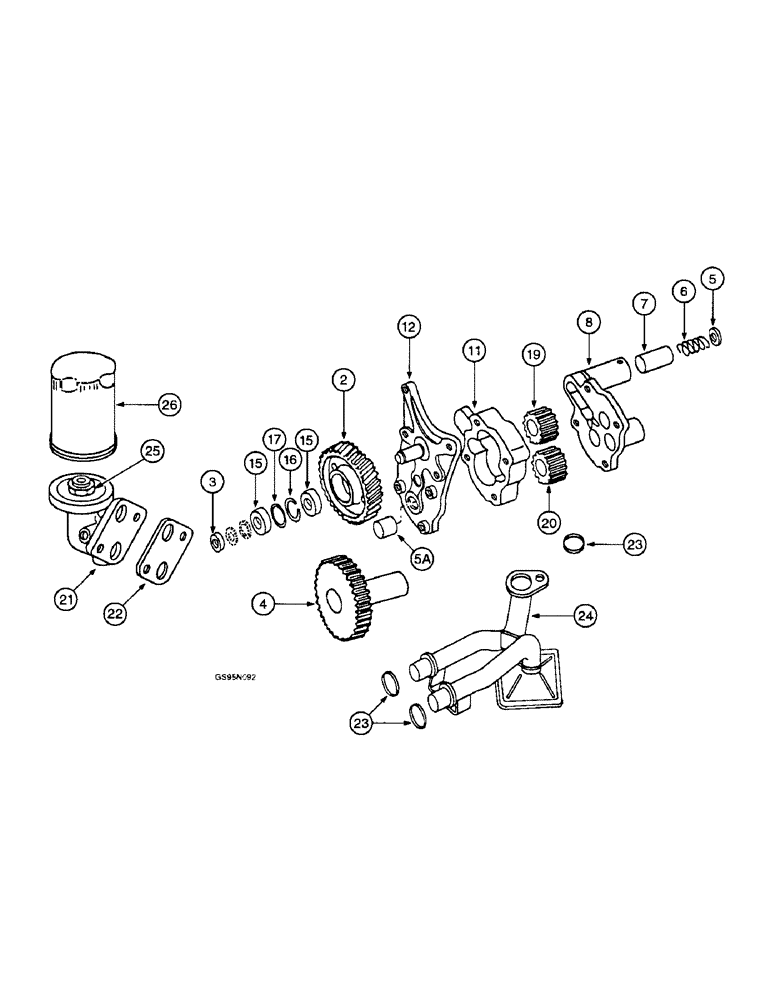

Запчасти Case IH D-310 (5-116) - LUBRICATING OIL PUMP AND FILTER, 715 COMBINES

3136433R95

ENGINE OIL PUMP

PUMP ASSEMBLY - lubricating oil, Includes: Ref. 2 - 12

1шт.

2

3056852R1

GEAR

- oil pump idler

1шт.

3

3228141R1

LOCK NUT

- lock

1шт.

4

3136446R91

GEAR

- drive

1шт.

3136445R95

CARRIER

ASSEMBLY - oil pump, Includes: Roll Pin & Ref. 5 - 12

1шт.

932597R1

LOCK PIN,M10 x 14, Slotted

Roll M10 x 14, Slotted

3шт.

5

3139620R1

SPRING WASHER

- spring

1шт.

5a

NSS

NOT SOLD SEPARAT

BUSHING - order carrier assembly 3136445R95

1шт.

6

3136264R1

SPRING

- pressure relief valve

1шт.

7

3136081R1

VALVE

- piston relief (Replaces valve 3055202R2)

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - oil pump, order carrier assembly 3136445R95

1шт.

11

NSS

NOT SOLD SEPARAT

CASE - oil pump gear, order carrier assembly 3136445R95

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - carrier, order carrier assembly 3136445R95

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

4шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch (Replaces screw 179828)

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2" (Replaces pin 103387)

1шт.

15

476045R91

ROLLER BEARING

CONE - bearing, roller cone

2шт.

15

476046R1

BEARING, CUP

CUP - bearing, roller cup

2шт.

16

800-2135

SNAP RING,M35, Int

RING - locking (Replaces ring 933579R1)

1шт.

17

3055292R1

WASHER

WASHER - oil pump idler

1шт.

3136450R91

GEAR-SET

KIT - gear, Includes: Ref. 19 - 20

1шт.

19

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

20

NSS

NOT SOLD SEPARAT

GEAR - oil pump

1шт.

21

3144599R1

BASE

- oil filter

1шт.

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch (Replaces bolt 186285)

2шт.

3144513R1

SPRING WASHER

WASHER - disc spring type

2шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 444687)

1шт.

22

3055237R2

GASKET

- oil filter socket

1шт.

23

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- oil pressure pipe (Replaces O-ring 3055199R1)

3шт.

24

3136014R94

PIPE

- oil pressure and suction

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

25

3136308R1

CONNECTOR, ELEC

CONNECTOR - threaded

1шт.

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Packing M18 x 24 x 1.5

1шт.

26

3136046R93

FILTER, ENGINE OIL

FILTER - oil, 12 micron

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

4шт.

61-33116

HEX SOC SCREW,5/16"-18 x 1"

SCREW, (Replaces screw 21035R1) Hex Soc Hd, 5/16"-18 x 1"

4шт.
