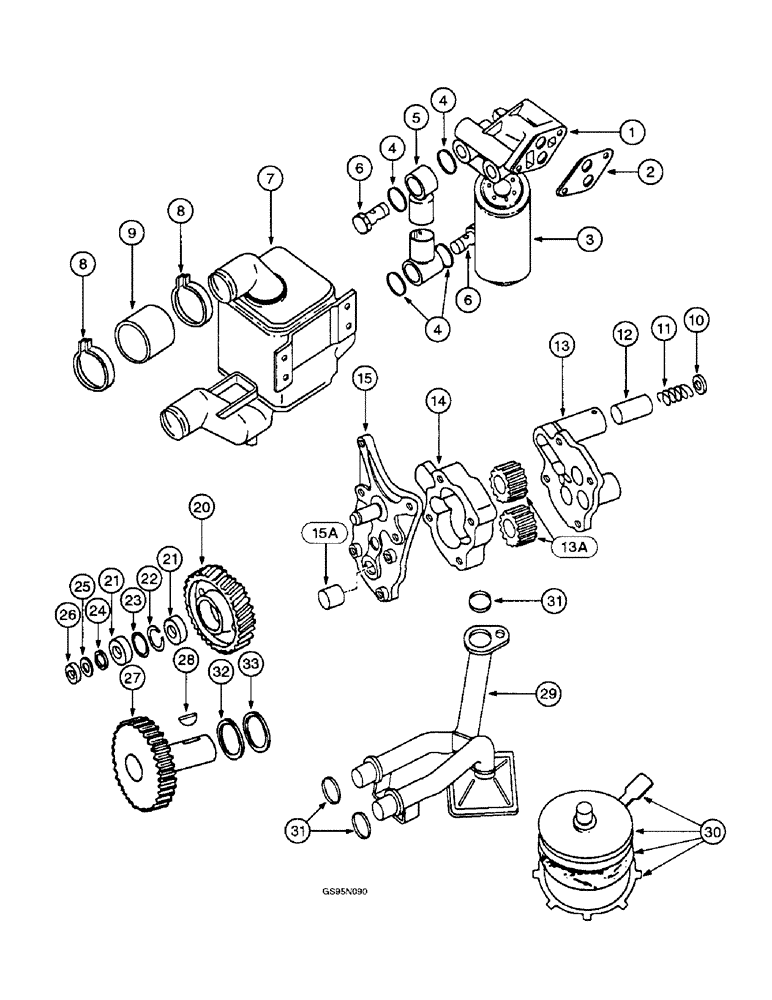

Запчасти Case IH D-310 (5-112) - OIL COOLER, FILTER AND PUMP, 616 AND 622 COTTON PICKERS

1

3055233R1

PEDESTAL

SOCKET - oil filter, no longer available

1шт.

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 20988R1)

1шт.

3144513R1

SPRING WASHER

WASHER - disc spring type

2шт.

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch (Replaces screw 186282)

1шт.

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch (Replaces screw 186288)

1шт.

2

3055237R2

GASKET

- oil filter socket

1шт.

3

3136046R93

FILTER, ENGINE OIL

FILTER - oil, 12 micron (Replaces filter 3059246R91)

1шт.

4

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

8шт.

5

3055432R93

HOSE

2шт.

6

931081R1

BANJO BOLT,M26 x 1.5 x 60mm

SCREW - hollow

4шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

4шт.

7

3055434R91

COOLER ASSY.

COOLER - oil

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

8

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, (Replaces clamp 3136501R1) #24, 1.06/2.00 Type F Worm

2шт.

9

3055305R1

HOSE,70.00 mm

Connecting Replaces Hose 3055267R1 70.00 mm

1шт.

9

REF

INSTRUCTION

HOSE - connecting, 2 inch (51 mm) long, cut from bulk hose 407008R2 below

1шт.

138222

BOLT,Skt Hd, 5/16" - 18 x 1"

SCREW - hex, 5/16 NC x 1 inch, no longer used

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

4шт.

3136433R95

ENGINE OIL PUMP

PUMP ASSEMBLY - lubricating oil (Replaces pump assembly 787715R93), Includes: Carrier Assembly

1шт.

3136445R95

CARRIER

ASSEMBLY - oil pump (Replaces carrier 787716R93), Includes: Roll Pin Listed Below & Ref. 10 - 31

1шт.

932597R1

LOCK PIN,M10 x 14, Slotted

Roll (.394 x .551") M10 x 14, Slotted

3шт.

10

3139620R1

SPRING WASHER

- spring (Replaces washer 933133R1)

1шт.

11

3136264R1

SPRING

- pressure relief valve (Replaces spring 3055201R1)

1шт.

12

3136081R1

VALVE

- piston relief (Replaces valve 3055202R2)

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - oil pump, order carrier assembly 3136445R95

1шт.

13a

538032R91

KIT - oil pump gear, used with 616 and 622 cotton pickers with engine serial number prior to 06132 and all machines with engine series prefix number 57, no longer available, order kit 3136450R91 below

1шт.

13a

3136450R91

GEAR-SET

KIT - oil pump gear (Replaces kit 538032R91)

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - oil pump gear, order carrier assembly 3136445R95

1шт.

15

NSS

NOT SOLD SEPARAT

CARRIER - order carrier assembly 3136445R95

1шт.

15a

NSS

NOT SOLD SEPARAT

BUSHING - order carrier assembly 3136445R95

1шт.

20

3056852R1

GEAR

- oil pump idler

1шт.

21

476045R91

ROLLER BEARING

BEARING - tapered roller

1шт.

21

476046R1

BEARING, CUP

CUP - tapered roller bearing

2шт.

22

800-2135

SNAP RING,M35, Int

RING - locking (Replaces ring 933579R1)

1шт.

23

3055292R1

WASHER

WASHER - oil pump idler

1шт.

24

3228141R1

LOCK NUT

WASHER - idler gear keyed (Replaces washer 3055371R2)

1шт.

25

3055296R1

WASHER

PLATE - locking

1шт.

26

3228141R1

LOCK NUT

- shaft (Replaces nut 3055295R1)

1шт.

27

3136446R91

GEAR

- oil pump drive (Replaces gear 3056851R11)

1шт.

28

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Used with pump 787715R93 (Replaces key 124546) #6, 5/32" x 5/8", HT

2шт.

29

3144067R95

PIPE

- oil suction, will work for 3055089R12 and 3055453R92

1шт.

30

3055453R92

FILTER SCREEN

BASKET - oil suction, order pipe 3144067R93, item 29

1шт.

31

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- oil suction pipe (Replaces O-ring 3055199R1)

3шт.

32

3055205R1

RING

- distance, used with pump 787715R93

1шт.

33

800-1119

SNAP RING,M19, Ext

RING - retaining, 17 mm ID, used with pump 787715R93 (Replaces ring 933081R1)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

5шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch (Replaces screw 179827)

1шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2" (Replaces pin 103387)

1шт.

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 103884)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

1шт.

407008R2

HOSE

- bulk, 3 foot (305 mm) long

1шт.
