Запчасти Case IH D-310 (5-110) - LUBRICATING OIL PUMP, 706, 756, 686 & HYDRO 86 TRACTORS, 95 COTTON HARVESTERS & 782 COTTON PICKERS

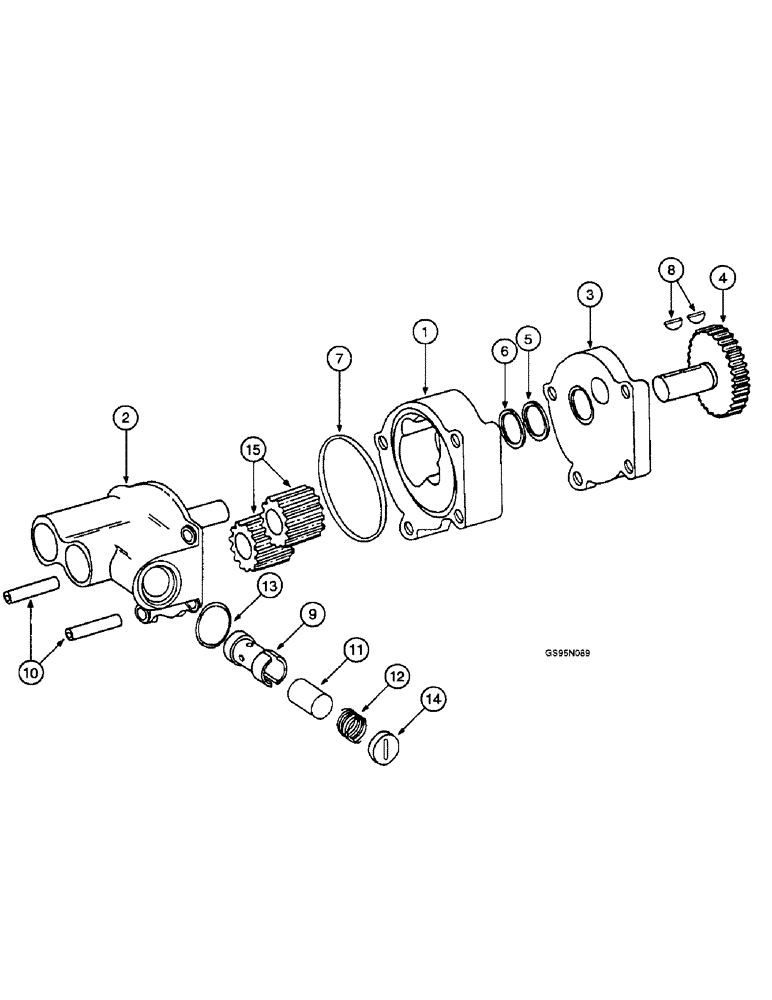

Схема запчастей Case IH D-310 - (5-110) - LUBRICATING OIL PUMP, 706, 756, 686 & HYDRO 86 TRACTORS, 95 COTTON HARVESTERS & 782 COTTON PICKERS
2
11
1
13
15
5
6
9
12
10
3
7
14
4
8

Артикул

Название

Примечание

Количество

3136434R91

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil (Replaces pump assembly 3055962R97), Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

CASE - oil pump gear, order pump assembly 3136434R91

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - oil pump, order pump assembly 3136434R91

1шт.

3

3136453R11

COVER

- oil pump front, no longer available

1шт.

4

3136454R91

GEAR

- oil pump drive, no longer available (Replaces gear 3055954R11)

1шт.

5

3055205R1

RING

- distance, used with pump 3055962R97

1шт.

6

933701R1

RING

O-RING - shaft seeger, used with pump 3055962R97

1шт.

7

3055952R2

O-RING

RING - oil pump sealing

2шт.

8

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Used with pump 3055962R97 (Replaces key 124546) #6, 5/32" x 5/8", HT

2шт.

9

3132304R2

VALVE

CYLINDER - valve, no longer available

1шт.

10

932614R1

LOCK PIN,M10 x 50, Slotted

PIN - roll, 10 x 50 mm, no longer available

2шт.

11

3136081R1

VALVE

- piston relief (Replaces valve 3055202R2)

1шт.

11

NSS

NOT SOLD SEPARAT

VALVE - piston relief, order kit 3132305R92

1шт.

12

3136264R1

SPRING

- relief valve pressure (Replaces spring 3059241R1)

1шт.

13

710382R3

GASKET,29mm ID x 35mm OD x 1.22mm Thk

RING - packing

1шт.

14

3055958R2

PLUG

- closing

1шт.

15

538032R91

KIT - oil pump gear, no longer available, order kit 3136450R91

1шт.

15

3136450R91

GEAR-SET

KIT - oil pump gear

1шт.

3132305R92

PACKAGE, REPAIR

KIT - piston relief valve service, Includes: Ref. 9, 11 & 14

1шт.

Выбрано товаров: 19
