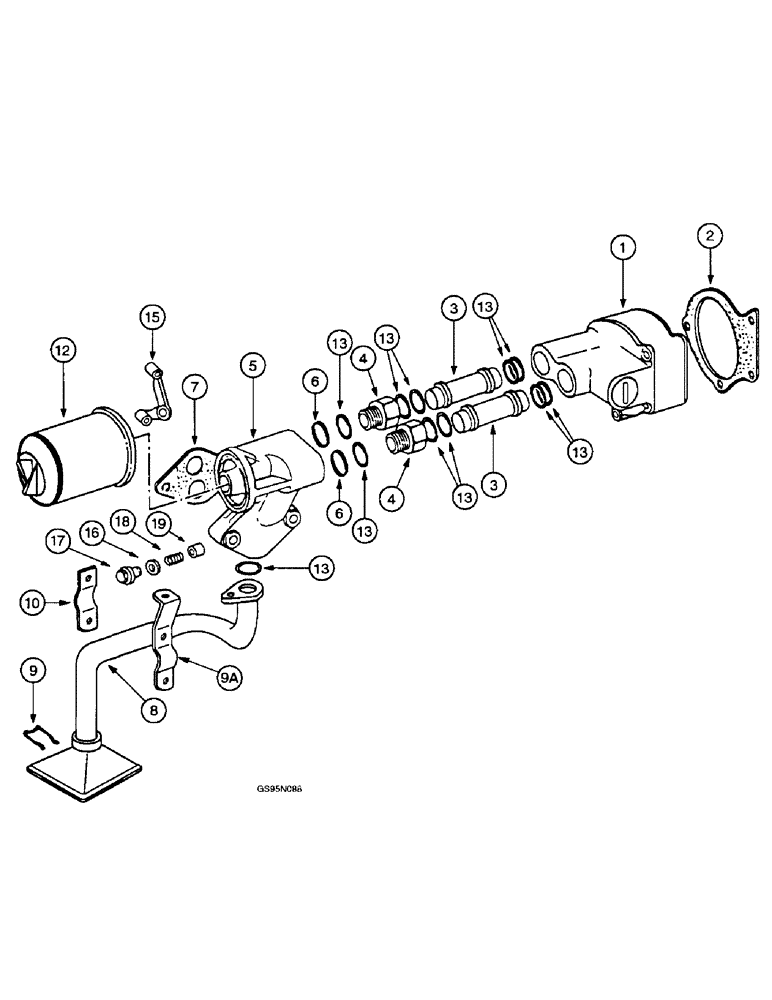

Запчасти Case IH D-310 (5-108) - OIL PUMP AND FILTER, 706, 756, 686 & HYDRO 86 TRACTORS, 95 COTTON HARVESTERS & 782 COTTON PICKERS

1

3136434R91

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, parts list Figure 5-110

1шт.

413-568

BOLT,Hex, 5/16" - 18 x 4-1/4", Gr 5

- hex, 5/16 NC x 4-1/4 inch (Replaces screw 186273)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

2

3055961R2

GASKET

- oil pump

1шт.

3

3055950R1

CONNECTION

PIPE - oil pump

2шт.

4

3055949R2

ADAPTER

- oil filter socket pipe

2шт.

5

3055948R1

PEDESTAL

SOCKET - oil filter, used with 706, 756, 686 and hydro 86 tractors

1шт.

5

3136384R2

PEDESTAL

SOCKET - oil filter, used with 95 cotton harvesters and 782 cotton pickers

1шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch (Replaces 179845)

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer M10.2 ID x 20 OD x 1.1 Thk

2шт.

6

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, (Replaces ring 933609R1) M26 x 31 x 2

2шт.

7

3055237R2

GASKET

- oil filter base

1шт.

8

3132793R92

LINE

PIPE ASSEMBLY - oil suction, will work for 3055947R11, Includes: Ref. 8A & 9

1шт.

8a

NSS

NOT SOLD SEPARAT

BASKET - oil suction, order pipe assembly 3132793R92, not shown

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - oil suction basket, order pipe assembly 3132793R92

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

9a

3055946R2

BRACKET

- oil suction pipe, no longer available

1шт.

10

3055945R1

CLAMP

- oil suction pipe, no longer available

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

3шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

3шт.

12

3136046R93

FILTER, ENGINE OIL

FILTER - oil, 12 micron (Replaces filter 528250R1)

1шт.

13

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- oil filter socket pipe (Replaces O-ring 3055199R1)

11шт.

15

3136385R1

SUPPORT

- oil filter, no longer available

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

1шт.

16

3058431R1

COPPER WASHER

RING - relief valve plug

1шт.

17

3138581R1

PLUG

- relief valve, no longer available

1шт.

18

279163R1

SPRING

- oil cooler relief valve

1шт.

19

251400R1

VALVE

- oil cooler relief

1шт.
