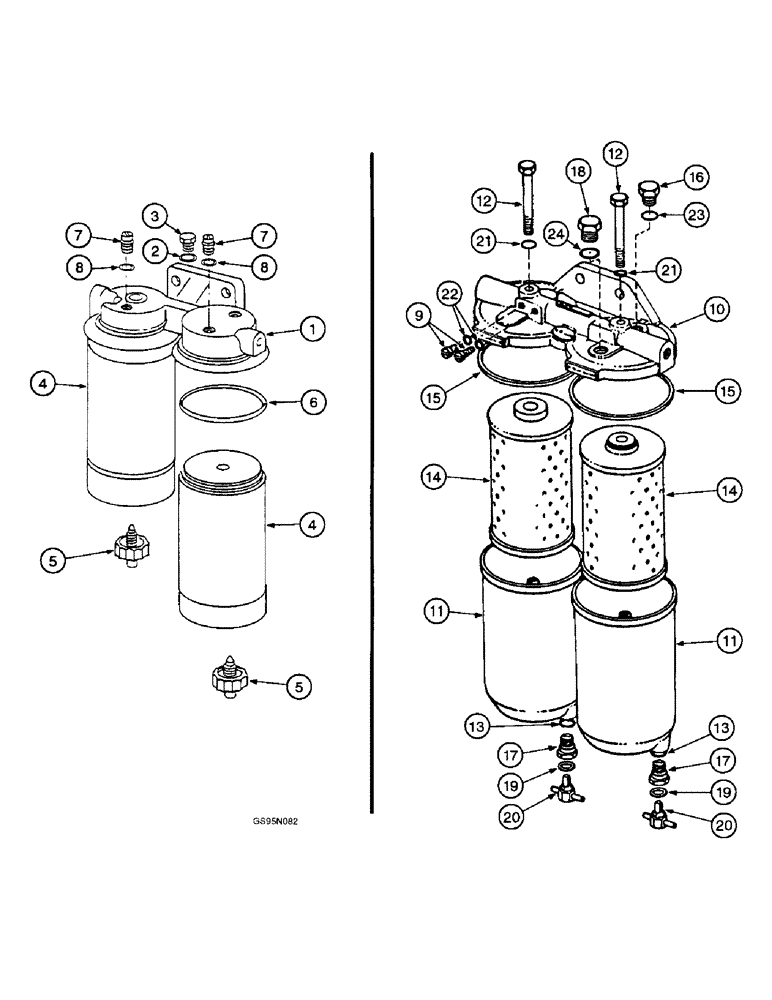

Запчасти Case IH D-310 (5-106) - FUEL FILTERS, SPIN-ON TYPE, CARTRIDGE TYPE

3228272R91

FILTER ASSY

FILTER ASSEMBLY - fuel, Spin-On Type (Replaces filter assembly 3136300R91), Used with Bosch Model or Pumps 782 Cotton Pickers, 715 Combines, 686 and Hydro 86 Tractors, Includes: Ref. 1 - 8

1шт.

1

3132491R1

FILTER HEAD

HEADER - filter (Replaces header 3218087R1)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer M10.2 ID x 20 OD x 1.1 Thk

2шт.

2

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

3

712616R1

PLUG,Hex, M14 x 1.5

- Filler and drain Hex, M14 x 1.5

2шт.

4

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT - fuel filter

2шт.

5

3228407R1

PLUG

- drain, 7.8 mm (Replaces plug 3132196R1)

2шт.

6

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING - packing

2шт.

7

3144780R1

SCREW

- air vent

2шт.

8

933696R1

SEALING RING,M6 x 10 x 1

RING, 6 x 10 mm - vent screw, packing (Replaces ring 757760R1)

2шт.

3059242R93

FILTER

ASSEMBLY - fuel step, Cartridge Type, no longer available, Includes: Ref. 9 - 15

1шт.

9

3056293R2

SCREW

- air vent, no longer available

2шт.

10

3056985R1

COVER

- housing, no longer available

1шт.

11

3055651R1

HOUSING

- filter, no longer available

2шт.

12

30013R1

BOLT,Hex, M8 x 1.25 x 75mm, Cl 10.9

- hex, filter housing (Replaces bolt 930340R1)

2шт.

13

E135042

SEALING RING

RING - packing (Replaces ring 713845R1)

2шт.

14

3132015R92

FUEL FILTER

KIT - primary and final fuel filter element, Includes: Element & Ref. 15

2шт.

3059245R92

FILTER CARTRIDGE

ELEMENT - fuel, order kit 3132015R92

1шт.

15

3055649R1

O-RING

GASKET - fuel element

1шт.

16

712616R1

PLUG,Hex, M14 x 1.5

- Filler, Breather locking (Replaces plug 3055648R1) Hex, M14 x 1.5

1шт.

17

3059485R1

UNION

SCREW - drain plug locking

2шт.

18

3056983R1

PLUG

- filler, no longer available

1шт.

19

N9682

GASKET

RING - drain plug packing (Replaces ring 3132008R1)

2шт.

20

3059484R1

SCREW

PLUG - drain

2шт.

21

3053133R1

SEALING RING,M8 x 11.5 x 1

RING - packing, 5/16 x 1/2 x 1/32 inch

2шт.

22

933696R1

SEALING RING,M6 x 10 x 1

RING, 6 x 10 mm - packing (Replaces ring 757760R1)

2шт.

23

933610R1

SEALING RING,M14 x 18 x 1.8

Packing (9/16 x 23/32 x 1/16") M14 x 18 x 1.8

1шт.

24

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Plug, Packing, 23/32 x 13/16 x 1/16 inch (Replaces washer 933222R1) M18 x 24 x 1.5

1шт.
