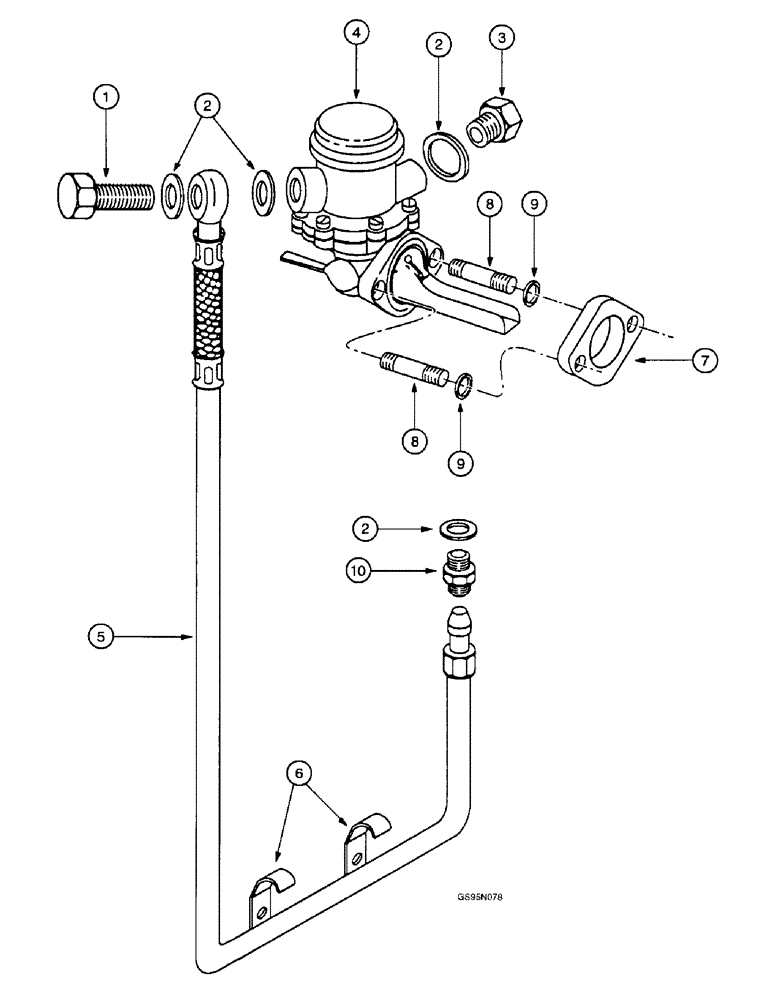

Запчасти Case IH D-310 (5-102) - FUEL FEED PUMP AND CONNECTIONS, 616 AND 622 COTTON PICKERS

1

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow

1шт.

2

933610R1

SEALING RING,M14 x 18 x 1.8

Packing (9/16 x 23/32 x 1/16") M14 x 18 x 1.8

4шт.

3

3056600R1

ADAPTER

- filter

1шт.

4

REF

INSTRUCTION

PUMP ASSEMBLY - fuel feed, parts list Figure 5-98 or 5-100

1шт.

5

3132696R1

PIPE

FUEL LINE - feed pump, used with cartridge type filters (Replaces fuel line 787714R91)

1шт.

5

3144326R2

PIPE

FUEL LINE - feed pump, used with spin-on type filters, no longer available

1шт.

6

3132052R1

CLIP

- fuel line

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

2шт.

3055074R1

WASHER - flat, 11/32 x 3/4 x 3/32 inch, no longer available

4шт.

7

3055391R22

NO LONGER SERVICED

FLANGE ASSEMBLY - fuel feed pump, Includes: Ref. 8 & 9, no longer available as an assembly, order components

1шт.

8

3055391R41

RETAINER

STUD - flange assembly (Replaces stud 3055388R1)

2шт.

9

3132869R1

O-RING

- sealing, flange assembly

2шт.

10

3132483R1

UNION

FITTING - adapter, no longer available

1шт.

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10 (Replaces nut 933064R1)

2шт.

933682R1

BELLEVILLE WASHER,M6 Bolt Size x 12.6mm OD x 0.7mm Thk

DISK - spring, no longer available

2шт.
