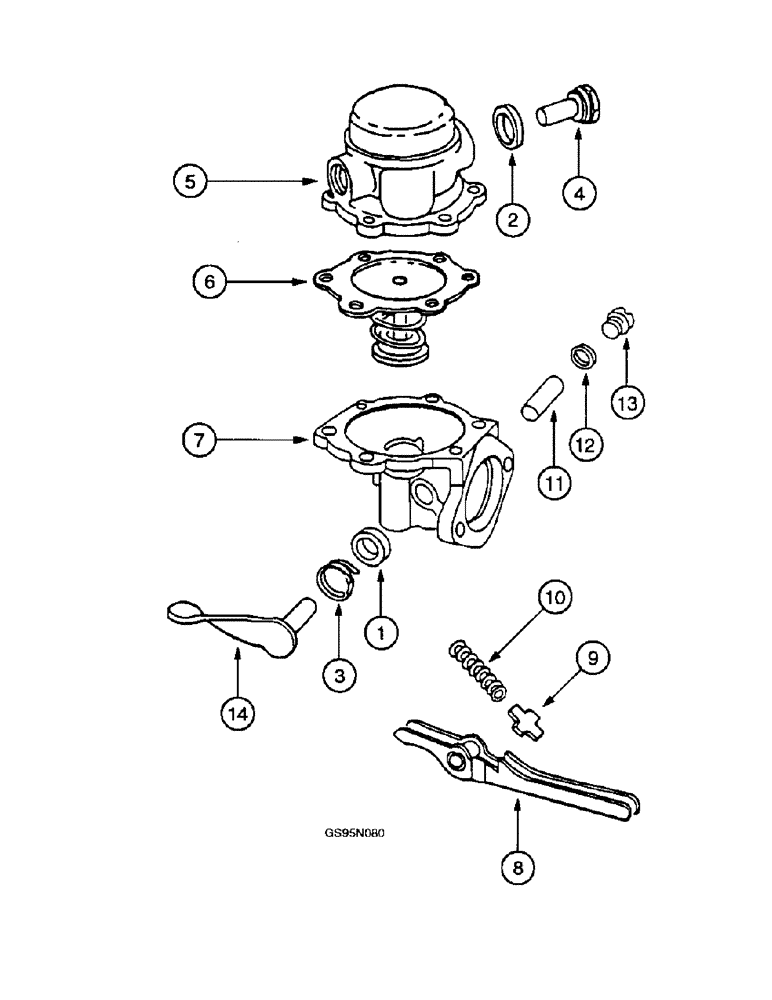

Запчасти Case IH D-310 (5-100) - FUEL FEED PUMP, 616 AND 622 COTTON PICKERS

3132697R92

FEED PUMP

PUMP ASSEMBLY - fuel feed, no longer available, includes: O-Ring, Ref. 1 - 14 & Screw Listed Below

1шт.

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

- sealing

1шт.

1

3132333R1

RING - fuel feed pump, no longer available

1шт.

2

897784H1

GASKET

RING - packing (Replaces ring 933850R1)

1шт.

3

3132332R1

SPRING

- fuel feed pump

1шт.

4

3132797R1

FILTER

- fuel

1шт.

5

3132796R91

HOUSING

HEAD - pump

1шт.

3132330R1

SCREW

- machine, slotted fillister head, no longer available

6шт.

6

3132798R1

DIAPHRAGM

- pump

1шт.

7

3132836R1

HOUSING

UNDERBODY - pump, no longer available

1шт.

8

3132340R1

LEVER

- pump

1шт.

9

3132338R1

RETAINER

- spring

1шт.

10

3132339R1

SPRING

- compression

1шт.

11

3132337R1

SPLIT PIN/SAFETY PIN

AXLE - fuel feed pump, no longer available

1шт.

12

933696R1

SEALING RING,M6 x 10 x 1

RING, 6 x 10 mm - packing (Replaces ring 3132335R1)

1шт.

13

3132336R1

SCREW

PLUG - drain, no longer available

1шт.

14

3132334R1

HANDLE

- fuel feed pump

1шт.

3132331R1

SCREW

- machine, slotted oval head, no longer available

1шт.

3136002R91

SET

KIT - fuel feed pump repair

1шт.
