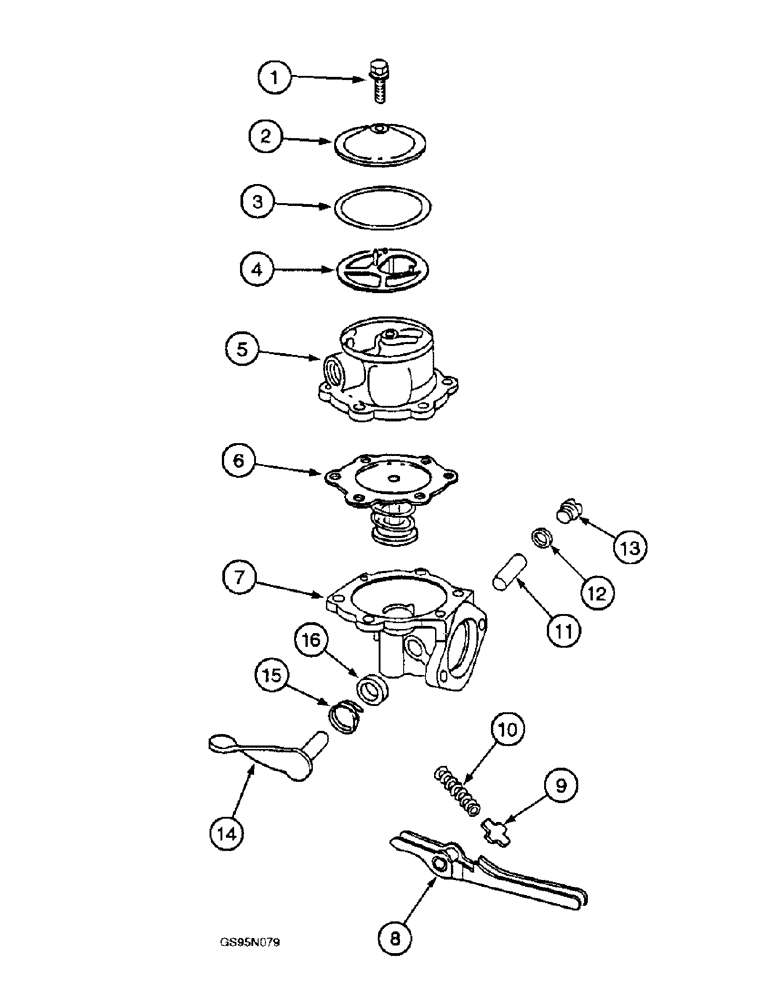

Запчасти Case IH D-310 (5-098) - FUEL FEED PUMP, 616 AND 622 COTTON PICKERS

3055375R93

FUEL PUMP

PUMP ASSEMBLY - fuel feed, no longer used, order pump assembly 3132697R92, parts list Figure 5-100, Includes: Ref. 1 - 16

1шт.

1

3132343R1

BOLT

BOLT - hex

1шт.

2

3132346R1

CAP

- fuel feed pump, no longer available

1шт.

3

3132344R1

POCKET

RING - packing, no longer available

1шт.

4

3132345R1

FILTER

- fuel

1шт.

5

3132347R1

COVER - pump, no longer available

1шт.

3132330R1

SCREW

- machine, slotted fillister head, no longer available

6шт.

6

3132798R1

DIAPHRAGM

- pump (Replaces diaphragm 3132342R1)

1шт.

7

B503521

FEED PUMP

UNDERBODY - pump (Replaces underbody 3132341R1)

1шт.

8

B503521

FEED PUMP

LEVER - pump (Replaces lever 3132340R1)

1шт.

9

3132338R1

RETAINER

- spring

1шт.

10

3132339R1

SPRING

- compression, no longer available

1шт.

11

3132337R1

SPLIT PIN/SAFETY PIN

AXLE - fuel feed pump, no longer available

1шт.

12

3132335R1

RING

- packing

1шт.

13

3132336R1

SCREW

PLUG - drain, no longer available

1шт.

14

3132334R1

HANDLE

- fuel feed pump

1шт.

3132331R1

SCREW

- machine, slotted oval head, no longer available

1шт.

15

3132332R1

SPRING

- extension, no longer available

1шт.

16

3132333R1

RING - fuel feed pump, no longer available

1шт.
