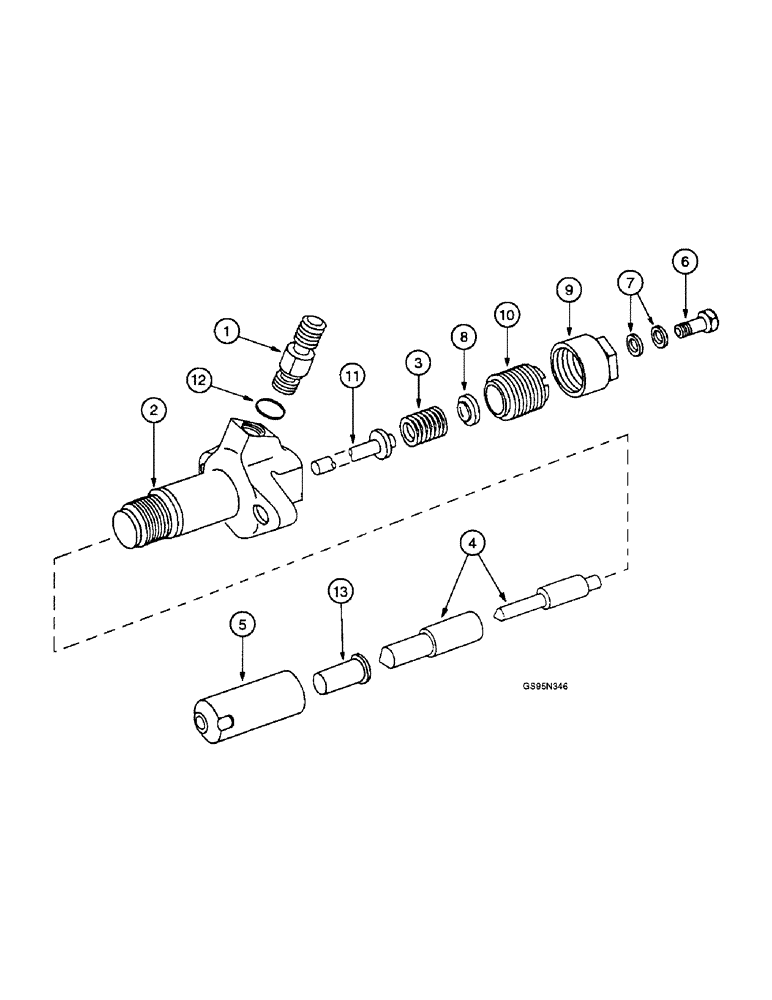

Запчасти Case IH D-310 (5-094) - INJECTION NOZZLE, STUD MOUNTED

3055422R92

HOLDER

ASSEMBLY - injection nozzle, new, complete, all machines except 616 and 622 cotton pickers with hydrostatic transmission and 95 cotton harvesters

6шт.

735252C91

REMAN-FUEL INJECTOR

HOLDER ASSEMBLY - injection nozzle, remanufactured for holder assembly 3055322R92 (North America only), component parts do not apply to the remanufactured assembly

6шт.

1934193C1

CORE-FUEL INJECTOR

RETURN NUMBER - use this part number to return nozzles for credit when using a remanufactured assembly

6шт.

735254C91

HOLDER ASSEMBLY - injection nozzle, remanufactured for holder assembly 3132026R92 (North America only), component parts do not apply to the remanufactured assembly

6шт.

1934197C1

CORE-NOZZLE, INJECT

RETURN NUMBER - use this part number to return nozzles for credit when using a remanufactured assembly

6шт.

3132026R92

HOLDER

ASSEMBLY - injection nozzle, new, complete, 616 and 622 cotton pickers with hydrostatic transmission and 95 cotton harvesters

6шт.

3055298R92

NOZZLE HOLDER

HOLDER ASSEMBLY - nozzle, does not include reference number 4, no longer available

6шт.

1

3056940R91

UNION

CONNECTOR - fuel inlet, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - injection nozzle holder, order holder assembly 3055298R92

1шт.

3

759844R1

SPRING

- nozzle holder

1шт.

4

3055426R91

NOZZLE CAP

NOZZLE - injection

1шт.

5

3056945R1

NUT

- nozzle cap, used with nozzle holder 3055298R92

1шт.

5

3133042R1

NOZZLE HOLDER

NUT - nozzle cap, used with nozzle holder 3055298R92

1шт.

6

3132999R1

HOLLOW SCREW

SCREW - hollow, will work for 3056944R1

1шт.

7

710673R2

SEALING WASHER,8mm ID x 11.5mm OD x 1mm Thk

RING - packing, 5/16 x 1/2 x 3/64 inch

2шт.

8

787049R1

CUP

SEAT - spring

1шт.

9

3056943R1

CROWN NUT

- nozzle holder cap, no longer available

1шт.

10

3132988R1

CAP - spring, no longer available

1шт.

11

3056939R91

SPINDLE

- includes guide bushing

1шт.

12

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING - packing, sealing

1шт.

13

3132028R1

SLEEVE,6.2mm ID x 16.5mm OD x 24.5mm L

- insulating, used with holder assembly 3132026R92

1шт.
