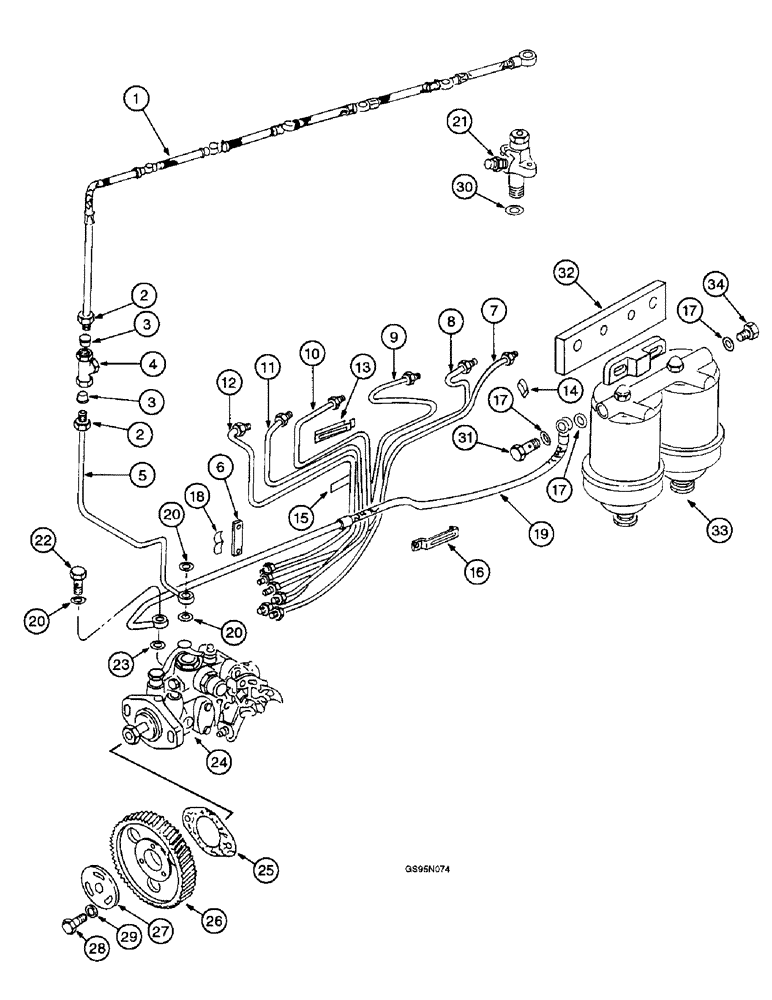

Запчасти Case IH D-310 (5-086) - FUEL INJECTION PUMP AND CONNECTIONS, 616 AND 622 COTTON PICKERS & 95 COTTON HARVESTERS

1

3055741R91

LINE

- leak

1шт.

2

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT - coupling

2шт.

3

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

- compression, cutting

2шт.

4

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

- tee, special

1шт.

5

3055675R1

LINE

- overflow

1шт.

6

3055458R1

LARGE PLATE

LINK - fuel line fixing

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

7

3139227R11

PIPE

- injection, cylinder no. 6

1шт.

8

3139226R11

PIPE

- injection, cylinder no. 5

1шт.

9

3139225R11

PIPE

- injection, cylinder no. 4

1шт.

10

3139224R11

LINE

PIPE - injection, cylinder no. 3

1шт.

11

3139223R11

PIPE

- injection, cylinder no. 2

1шт.

12

3139222R11

LINE

PIPE - injection, cylinder no. 1, no longer available

1шт.

13

3132768R1

CLAMP

- tube, pipe

2шт.

14

3132770R1

COLLAR

CLAMP - tube, pipe

1шт.

15

3132839R1

CLAMP

- tube, pipe, lower part

1шт.

16

3132838R1

BRACKET

CLAMP - tube, pipe, upper part

1шт.

17

933610R1

SEALING RING,M14 x 18 x 1.8

3шт.

18

3055386R1

CLAMP

CLIP - fuel line

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

19

3139228R1

PIPE

LINE - filter injection pump fuel

1шт.

20

E135042

SEALING RING

RING - packing (Replaces ring 713845R1)

3шт.

21

REF

INSTRUCTION

HOLDER ASSEMBLY - injection nozzle, parts list Figure 5-94 or 5-96

1шт.

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF (Replaces nut 103025).

2шт.

22

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW - hollow

1шт.

23

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing (Replaces ring 3055390R1) M12 x 18 x 1.5

1шт.

24

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figure 5-42 or 5-60

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

25

3055384R2

GASKET

- fuel injection pump

1шт.

26

3056885R3

PINION

GEAR - injection pump

1шт.

27

3055067R2

HUB

- injection pump gear

1шт.

28

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

3шт.

29

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened (Replaces washer 30183R1)

3шт.

30

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

6шт.

31

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow

1шт.

32

3144325R1

PLATE

BRACKET - fuel filter, no longer available

1шт.

33

3059242R93

FILTER

ASSEMBLY - fuel step, parts list Figure 5-106

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

34

3056600R1

ADAPTER

- filter

1шт.
