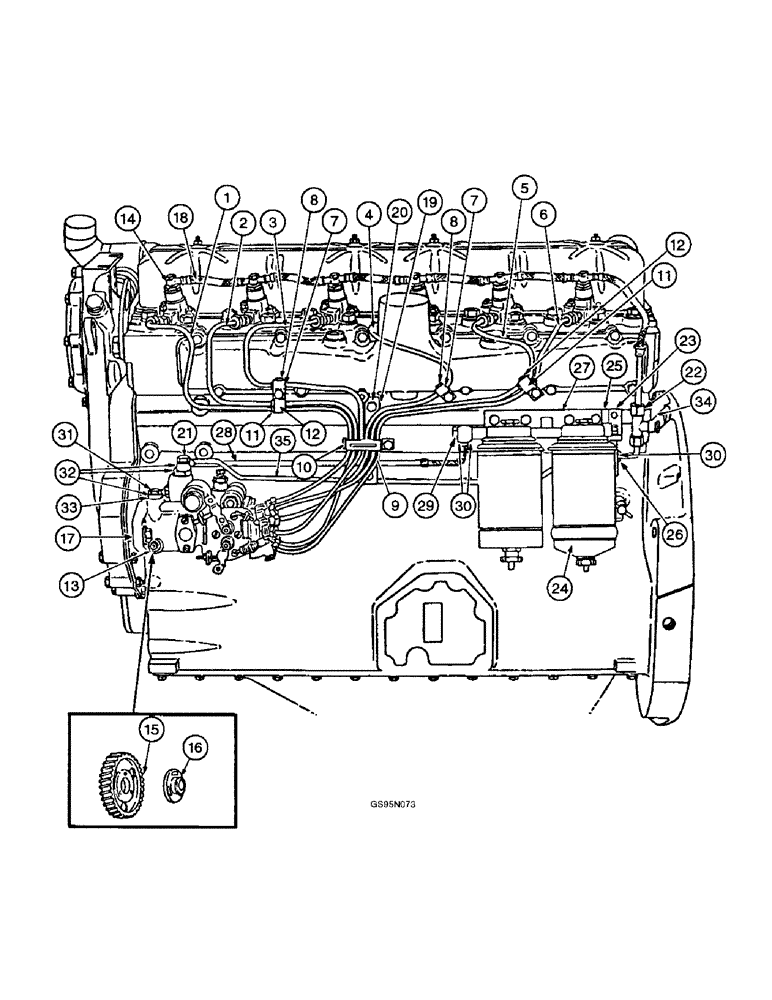

Запчасти Case IH D-310 (5-082) - FUEL INJECTION PUMP AND CONNECTIONS, 706 AND 756 TRACTORS W/SPIN-ON TYPE FILTERS

1

3055968R11

LINE

PIPE - injection, cylinder no. 1, no longer available

1шт.

1

3144329R91

INJECTION PIPE

PIPE - injection, cylinder no. 1, used with Bosch model CR injection pump 3144328R91

1шт.

2

3055967R11

INJECTION PIPE

PIPE - injection, cylinder no. 2

1шт.

2

3144331R91

CABLE

PIPE - injection, cylinder no. 2, used with Bosch model CR injection pump 3144328R91

1шт.

3

787771R11

LINE

PIPE - injection, cylinder no. 3

1шт.

3

3144333R91

CABLE

PIPE - injection, cylinder no. 3, used with Bosch model CR injection pump 3144328R91

1шт.

4

3055965R11

LINE

PIPE - injection, cylinder no. 4, no longer available

1шт.

4

3144335R91

CABLE

PIPE - injection, cylinder no. 4, used with Bosch model CR injection pump 3144328R91, no longer available

1шт.

5

3055964R21

LINE

PIPE - injection, cylinder no. 5

1шт.

5

3144337R91

LINE

PIPE - injection, cylinder no. 5, used with Bosch model CR injection pump 3144328R91, no longer available

1шт.

6

3055963R11

LINE

PIPE - injection, cylinder no. 6

1шт.

6

3144339R91

INJECTION PIPE

PIPE - injection, cylinder no. 6, used with Bosch model CR injection pump 3144328R91

1шт.

7

3132767R1

CLAMP

- pipe, upper part, no longer available

2шт.

8

3132767R1

CLAMP

- pipe, lower part, no longer available

2шт.

9

3132838R1

BRACKET

CLAMP - tube, pipe, upper part

1шт.

10

3132839R1

CLAMP

- tube, pipe, lower part

1шт.

11

3132770R1

COLLAR

CLAMP - tube, pipe, upper part

1шт.

12

3132839R1

CLAMP

- tube, pipe, lower part

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 109084)

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces screw 179791)

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch (Replaces bolt 179795)

1шт.

396-31028

WASHER,.281" x 5/8" x .098", HDN

- flat, 9/32 x 5/8 x 12 gauge (Replaces washer 305521R1)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

5шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

13

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list page 5-43 - 5-59

1шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC (Replaces nut 102634).

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

14

REF

INSTRUCTION

HOLDER ASSEMBLY - injection nozzle, parts list page 5-94 or 5-96

6шт.

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF (Replaces nut 103025).

2шт.

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

1шт.

15

3056885R3

PINION

GEAR - injection pump

1шт.

16

3055067R2

HUB

- injection pump gear

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

3шт.

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened (Replaces washer 30183R1)

3шт.

17

3055384R2

GASKET

- fuel injection pump

1шт.

18

3055741R91

LINE

- leak

1шт.

19

3055386R1

CLAMP

CLIP - fuel line

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

20

3056979R1

LINK

- fuel line fixing, no longer available

1шт.

21

3132412R1

VALVE

- overflow (Replaces valve 3055403R1)

1шт.

22

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT - coupling

2шт.

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

- compression, cutting

2шт.

23

384554R1

CLIP

- retaining, cable

1шт.

24

3059242R93

FILTER

ASSEMBLY - fuel step, parts list page 5-107

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

25

3055678R1

PLATE

LINK - fuel link fixing

1шт.

3055386R1

CLAMP

CLIP - fuel line

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

26

3056600R1

ADAPTER

- filter

1шт.

27

3132910R1

HOLDER

BRACKET - fuel filter

1шт.

28

3132911R1

PIPE

LINE - injection pump fuel filter

1шт.

29

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow

1шт.

30

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

3шт.

31

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW - hollow

1шт.

32

E135042

SEALING RING

RING - packing (Replaces ring 713845R1)

2шт.

33

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing (Replaces ring 3055390R1) M12 x 18 x 1.5

1шт.

34

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

- tee, special

1шт.

35

3055972R91

TUBE

LINE - overflow, no longer available

1шт.
