Запчасти Case IH D-310 (5-078) - FUEL INJECTION PUMP & CONNECTIONS, 616 & 622 W/SPIN-ON TYPE FILTER & BOSCH BR/CR FUEL INJECTION PUMP

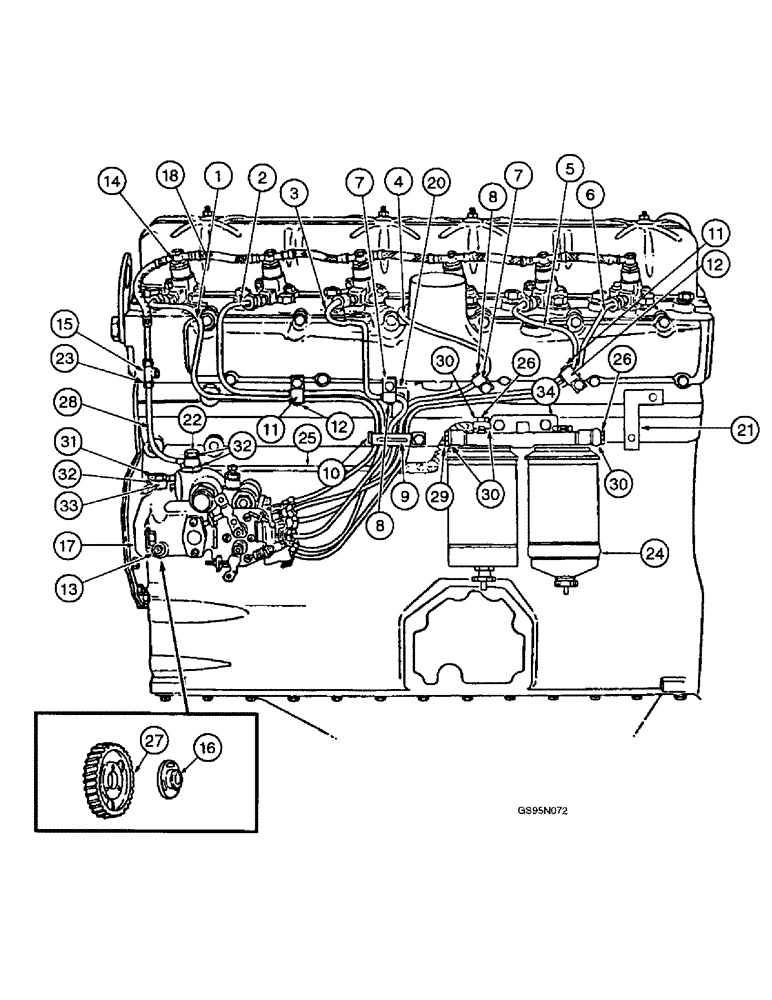

Схема запчастей Case IH D-310 - (5-078) - FUEL INJECTION PUMP & CONNECTIONS, 616 & 622 W/SPIN-ON TYPE FILTER & BOSCH BR/CR FUEL INJECTION PUMP
7
28
30
16
25
22
1
21
17
31
8
13
12
2
23
12
30
33
34
7
11
3
18
8
9
24
27
6
10
30
4
26
26
11
32
14
20
5
15
32
29

Артикул

Название

Примечание

Количество

1

3055511R11

PIPE

- injection, cylinder no. 1, used with Bosch model BR injection pumps

1шт.

1

3139222R11

LINE

PIPE - injection, cylinder no. 1, used with Bosch model CR injection pumps , no longer available

1шт.

2

3055512R11

PIPE

- injection, cylinder no. 2, used with Bosch model BR injection pumps

1шт.

2

3139223R11

PIPE

- injection, cylinder no. 2, used with Bosch model CR injection pumps

1шт.

3

3055513R11

PIPE

- injection, cylinder no. 3, used with Bosch model BR injection pumps

1шт.

3

3139224R11

LINE

PIPE - injection, cylinder no. 3, used with Bosch model CR injection pumps

1шт.

4

3055514R11

PIPE

- injection, cylinder no. 4, used with Bosch model BR injection pumps

1шт.

4

3139225R11

PIPE

- injection, cylinder no. 4, used with Bosch model CR injection pumps

1шт.

5

3055515R11

PIPE

- injection, cylinder no. 5, used with Bosch model BR injection pumps

1шт.

5

3139226R11

PIPE

- injection, cylinder no. 5, used with Bosch model CR injection pumps

1шт.

6

3055516R11

PIPE

- injection, cylinder no. 6, used with Bosch model BR injection pumps

1шт.

6

3139227R11

PIPE

- injection, cylinder no. 6, used with Bosch model CR injection pumps

1шт.

7

787772R1

CLAMP

- pipe, upper part, no longer available

2шт.

8

787773R1

CLAMP - pipe, lower part, no longer available

2шт.

396-31028

WASHER,.281" x 5/8" x .098", HDN

- flat, 9/32 x 5/8 x 12 gauge (Replaces washer 3055521R1)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

1шт.

9

3132838R1

BRACKET

CLAMP - tube, pipe upper part

1шт.

10

3132839R1

CLAMP

- tube, pipe lower part

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces screw 179791)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 109084)

1шт.

11

3132767R1

CLAMP

- pipe, no longer available

2шт.

396-31028

WASHER,.281" x 5/8" x .098", HDN

- flat, 9/32 x 5/8 x 12 gauge (Replaces washer 3055521R1)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

1шт.

12

3132770R1

COLLAR

CLAMP - tube, pipe

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

1шт.

13

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figure 5-42 or 5-60

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

14

REF

INSTRUCTION

HOLDER ASSEMBLY - injection nozzle, parts list Figure 5-94 or 5-96

6шт.

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF (Replaces nut 103025).

2шт.

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

1шт.

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing (Replaces ring 3055390R1) M12 x 18 x 1.5

1шт.

15

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

- tee, special

1шт.

16

3055067R2

HUB

- injection pump gear

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

3шт.

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened (Replaces washer 30183R1)

3шт.

17

3055384R2

GASKET

- fuel injection pump

1шт.

18

3055741R91

LINE

- leak

1шт.

3055386R1

CLAMP

CLIP - fuel line (Replaces clip 3059647R1)

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

2шт.

20

3056950R1

LATCH

LINK - fuel line fixing, no longer available

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

21

3055678R1

PLATE

LINK - fuel line fixing

1шт.

22

3132412R1

VALVE

- overflow (Replaces valve 3055403R1)

1шт.

23

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT - coupling

2шт.

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

- compression, cutting

2шт.

24

3059242R93

FILTER

ASSEMBLY - fuel step, parts list Figure 5-106

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer M10.2 ID x 20 OD x 1.1 Thk

2шт.

25

3132920R1

LINE

- injection pump fuel filter, no longer available

1шт.

26

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow

2шт.

27

3056885R3

PINION

GEAR - injection pump, 66 teeth

1шт.

28

3055675R1

LINE

- overflow

1шт.

E135042

SEALING RING

RING - packing (Replaces ring 713845R1)

2шт.

29

712616R1

PLUG,Hex, M14 x 1.5

- Filler, Breather locking Hex, M14 x 1.5

1шт.

30

933610R1

SEALING RING,M14 x 18 x 1.8

Packing (35/64 x 23/32 x 1/16") M14 x 18 x 1.8

4шт.

31

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW - hollow

1шт.

32

E135042

SEALING RING

RING - packing (Replaces ring 713845R1)

3шт.

33

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing (Replaces ring 3055390R1) M12 x 18 x 1.5

1шт.

34

3059289R1

PLATE

- thrust, fuel filter

1шт.

Выбрано товаров: 67
