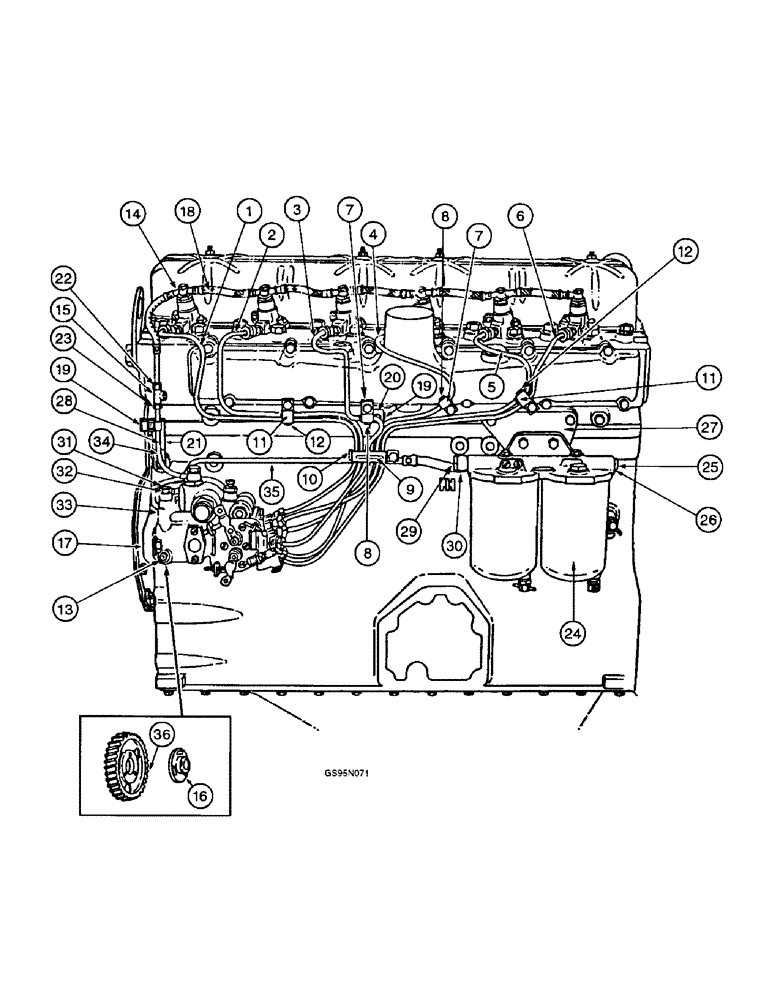

Запчасти Case IH D-310 (5-074) - FUEL INJECTION PUMP AND CONNECTIONS, 616 AND 622 COTTON PICKERS W/CARTRIDGE TYPE FILTERS

1

3055511R11

PIPE

- injection, cylinder no. 1

1шт.

2

3055512R11

PIPE

- injection, cylinder no. 2

1шт.

3

3055513R11

PIPE

- injection, cylinder no. 3

1шт.

4

3055514R11

PIPE

- injection, cylinder no. 4

1шт.

5

3055515R11

PIPE

- injection, cylinder no. 5

1шт.

6

3055516R11

PIPE

- injection, cylinder no. 6

1шт.

7

787772R1

CLAMP

- pipe, upper part, no longer available

2шт.

8

787773R1

CLAMP - pipe, lower part, no longer available

2шт.

396-31028

WASHER,.281" x 5/8" x .098", HDN

- flat, 9/32 x 5/8 x 12 gauge (Replaces washer 3055521R1)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

1шт.

9

3132838R1

BRACKET

CLAMP - tube, pipe upper part

1шт.

10

3132839R1

CLAMP

- tube, pipe lower part

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces screw 179791)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 109084)

1шт.

11

3132767R1

CLAMP

- pipe, no longer available

2шт.

396-31028

WASHER,.281" x 5/8" x .098", HDN

- flat, 9/32 x 5/8 x 12 gauge (Replaces washer 3055521R1)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

1шт.

12

3132770R1

COLLAR

CLAMP - tube, pipe

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

1шт.

13

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list pages 5-43 - 5-59 or 5-61 - 5-69

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

14

REF

INSTRUCTION

HOLDER ASSEMBLY - injection nozzle, parts list page 5-95 or 5-97

6шт.

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

6шт.

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF (Replaces nut 103025).

12шт.

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing (Replaces ring 3055390R1) M12 x 18 x 1.5

6шт.

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

6шт.

15

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

- tee, special tee

1шт.

16

3055067R2

HUB

- injection pump gear

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

3шт.

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened (Replaces washer 30183R1)

3шт.

933981R1

NUT,M12 x 1.75, Cl 5

Hex M12 x 1.75, Cl 5

1шт.

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm (Replaces washer 933834R1)

1шт.

17

3055384R2

GASKET

- fuel injection pump

1шт.

18

3055741R91

LINE

- leak, used with 616 and 622 cotton pickers

1шт.

18

3056949R92

LINE

- leak, used with 95 cotton harvesters

1шт.

19

3055386R1

CLAMP

CLIP - fuel line

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

2шт.

20

3056979R1

LINK

- fuel line fixing

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

21

787713R11

BRACKET - leak line

1шт.

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

(Replaces screw 179835) Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

1шт.

22

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

- compression, cutting

2шт.

23

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT - coupling

2шт.

24

3059242R93

FILTER

ASSEMBLY - fuel step, parts list page 5-107

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

25

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow

1шт.

26

933610R1

SEALING RING,M14 x 18 x 1.8

Packing (9/16 x 23/32 x 1/16") M14 x 18 x 1.8

1шт.

27

3055828R1

HOLDER

BRACKET - fuel filter, used with 616 and 622 cotton pickers

1шт.

27

3144325R1

PLATE

BRACKET - fuel filter, used with 95 cotton harvesters

1шт.

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 179836) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

28

3055675R1

LINE

- overflow, used with 616 and 622 cotton pickers

1шт.

E135042

SEALING RING

RING - packing (Replaces ring 713845R1)

2шт.

29

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow

1шт.

30

933610R1

SEALING RING,M14 x 18 x 1.8

Packing (9/16 x 23/32 x 1/16") M14 x 18 x 1.8

2шт.

31

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW - hollow

1шт.

32

E135042

SEALING RING

RING - packing (Replaces ring 713845R1)

1шт.

33

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing, Used with 616 and 622 cotton pickers (Replaces ring 3055390R1) M12 x 18 x 1.5

1шт.

33

634005R1

RING - sealing, used with 95 cotton harvesters

1шт.

34

3055678R1

PLATE

LINK - fuel line fixing

1шт.

35

3055971R92

LINE

- filter injection pump fuel, used with 616 and 622 cotton pickers

1шт.

35

3139228R1

PIPE

LINE - filter injection pump fuel, used with 95 cotton harvesters

1шт.

36

3056885R3

PINION

GEAR - injection pump, 66 teeth

1шт.
