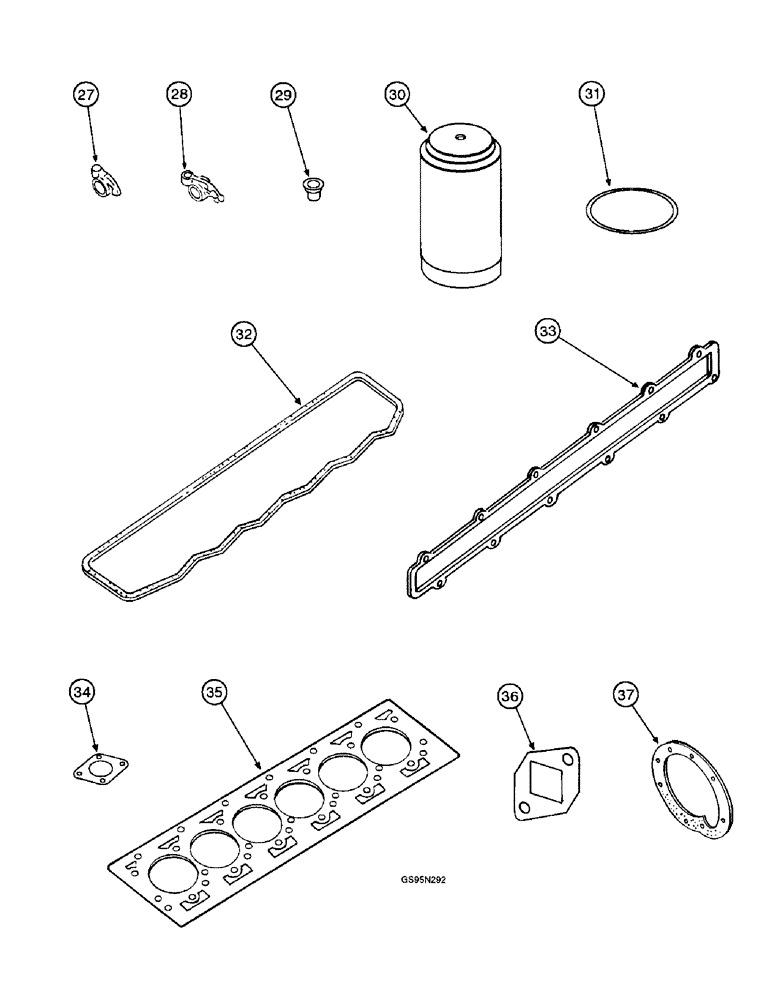

Запчасти Case IH D-310 (5-040) - SERVICE KITS

3132293R92

ROCKER

KIT - exhaust rocker arm, Includes: Ref. 27 & Hardware Below

1шт.

27

NSS

NOT SOLD SEPARAT

ARM - exhaust rocker, order kit 3132293R92

1шт.

3132137R1

ADJUSTMENT SCREW

Rocker arm

1шт.

3132292R92

ROCKER

KIT - intake rocker arm, Includes: Ref. 28 & Hardware Below

1шт.

28

NSS

NOT SOLD SEPARAT

ARM - intake rocker, order kit 3132292R92

1шт.

3132132R1

NUT - screw, no longer available

1шт.

3132137R1

ADJUSTMENT SCREW

Rocker arm

1шт.

29

3218399R91

GASKET KIT

KIT - valve seal, Includes: Seal & Sleeve Listed Below

2шт.

NSS

NOT SOLD SEPARAT

SEAL - valve, order kit 3218399R91

6шт.

3132420R1

SLEEVE

- valve, no longer available

1шт.

1967094C1

FUEL FILTER

KIT - fuel filter box and seal ring (Replaces kit 3136187R91), Includes: Ref. 30 - 31

1шт.

30

NSS

NOT SOLD SEPARAT

FILTER - fuel, order kit 1967094C1

1шт.

31

3132191R1

RING

- packing

1шт.

3136801R99

GASKET KIT,Cylinder Head

KIT - gasket, cylinder head, Includes: O-Ring, Ring, & Ref. 32 - 36

1шт.

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

6шт.

3053133R1

SEALING RING,M8 x 11.5 x 1

RING - vent screw, packing

12шт.

32

3138688R2

GASKET

- valve housing cover

1шт.

33

3055399R2

MANIFOLD GASKET,1.5mm Thk

- intake manifold

1шт.

3055306R3

GASKET,1.5mm Thk

- manifold, water collecting pipe

6шт.

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

- valve housing cover bolt

4шт.

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING - packing, nozzle fuel inlet

6шт.

34

3059672R2

GASKET

- thermostat water outlet

1шт.

3132143R2

GASKET,1mm Thk

- thermostat water outlet

1шт.

35

3228019R2

CYLINDER HEAD GASKET

GASKET - cylinder head

1шт.

3218399R91

GASKET KIT

KIT - valve stem seal

2шт.

36

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

6шт.

3136002R91

SET

KIT - fuel feed pump repair, used with pump 3132697R91, Includes: Parts Listed Below

1шт.

3132330R1

SCREW

- machine, slotted fillister head, no longer available

6шт.

3132335R1

RING

- packing

1шт.

3132798R1

DIAPHRAGM

- pump

1шт.

3132797R1

FILTER

- fuel

1шт.

897784H1

GASKET

RING - packing (Replaces ring 933850R1)

1шт.

3055285R94

GASKET KIT

KIT - water pump reconditioning, Includes: Ref. 37 & Parts Listed Below

1шт.

37

3055177R3

GASKET

- water pump

1шт.

NSS

NOT SOLD SEPARAT

RING - water pump, order kit 3055285R94

1шт.

NSS

NOT SOLD SEPARAT

PACKING - water pump, order kit 3055285R94

1шт.

NSS

NOT SOLD SEPARAT

RETAINER - water pump, order kit 3055285R94

1шт.

NSS

NOT SOLD SEPARAT

RING - water pump, order kit 3055285R94

1шт.

NSS

NOT SOLD SEPARAT

SEAL - water pump, order kit 3055285R94

1шт.

3144657R91

PACKAGE

KIT - fuel feed line, used with 616 and 622 cotton pickers and 686 and hydro 86 tractors, Includes: Parts Listed Below

1шт.

NSS

NOT SOLD SEPARAT

TUBE - fuel feed line, order kit 3144657R91

1шт.

NSS

NOT SOLD SEPARAT

HOSE - fuel feed line, order kit 3144657R91

1шт.

NSS

NOT SOLD SEPARAT

CLAMP - fuel feed line, order kit 3144657R91

1шт.

NSS

NOT SOLD SEPARAT

CLIP - fuel feed line, order kit 3144657R91

1шт.

NSS

NOT SOLD SEPARAT

PLATE - fuel feed line, order kit 3144657R91

1шт.

NSS

NOT SOLD SEPARAT

BOLT - fuel feed line, order kit 3144657R91

1шт.

NSS

NOT SOLD SEPARAT

RING - fuel feed line, order kit 3144657R91

2шт.

NSS

NOT SOLD SEPARAT

RING - fuel feed line, order kit 3144657R91

1шт.

NSS

NOT SOLD SEPARAT

RING - fuel feed line, order kit 3144657R91

1шт.

829-1410

NUT,M10 x 1.5, Cl 10.9

Adjusting, Screw (Replaces nut 3132138R1) M10, Cl 10

1шт.
