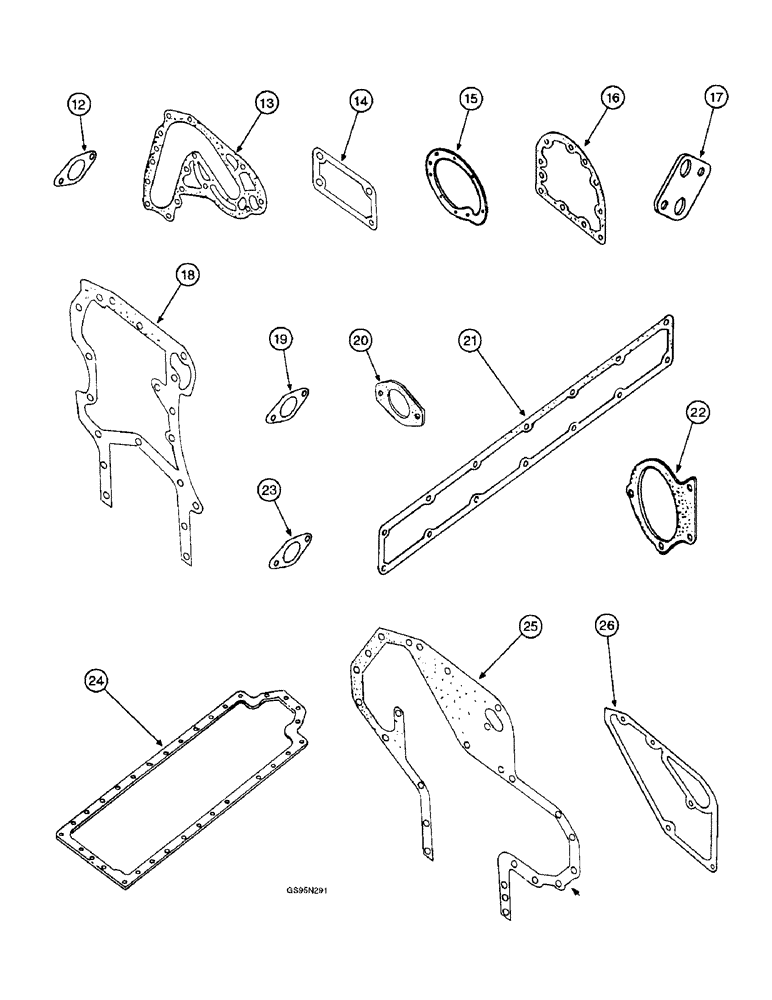

Запчасти Case IH D-310 (5-038) - SERVICE KITS

3228432R92

GASKET

KIT - crankcase gasket, continued

1шт.

Excludes the 686 and 86 Hydro Tractors

1шт.

11

3055240R2

GASKET

- crankcase front cover, shown on Figure 5-36

1шт.

11

3144072R4

GASKET

- crankcase front cover, shown on Figure 5-36

1шт.

3055246R2

GASKET

- water channel

1шт.

12

3055318R2

GASKET

- tube oil filler

1шт.

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

- sealing

1шт.

3132869R1

O-RING

- sealing

1шт.

13

3136766R3

GASKET

- water channel

1шт.

NSS

NOT SOLD SEPARAT

GASKET - cover

1шт.

3218792R3

GASKET

- oil filler pipe

1шт.

3146575R1

NUT

- hex, seal

2шт.

1967012C1

GASKET KIT

KIT - gasket, crankcase, used with all machines except 616 and 622 cotton pickers and 686 and hydro 86 tractors (Replaces kit 3136815R99), Includes: 41-3044, 3058431R1, 238-5210, 710097R2, E135042, 713778R1, 714868R1 & 933087R2 Listed Below

1шт.

41-3044

PLUG,Exp, 2 3/4"

1шт.

3058431R1

COPPER WASHER

RING - relief valve plug packing

1шт.

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing M14 x 18 x 1.5

1шт.

E135042

SEALING RING

RING - packing (Replaces ring 713845R1)

3шт.

713778R1

O-RING,3mm Thk x 55mm ID

- crankcase cover

1шт.

714868R1

SEALING STRIP

- sealing

2шт.

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

- Packing M10 x 13.5 x 1

2шт.

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

2шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

4шт.

3138687R1

RING

- packing

2шт.

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL - radial

1шт.

3228348R1

RING,4.75mm Thk x 109.16mm ID

- cylinder sleeve

6шт.

REF 13 - FOR PART #'S 3228344R1 AND 322834R1 PRIOR TO 1979. WAS INCLUDED IN KIT 3136815R99 BUT NOT THE NEWER 1967012C1.3228344R1 AND 3228348R1 WERE REMOVED FROM ALL CRANKCASE GASKET KITS IN 1980. JC CAM 02/26/01

1шт.

3228344R1

SEALING RING,5mm Thk x 110mm ID

RING - cylinder sleeve

6шт.

REF 13 - FOR PART #'S 3228344R1 AND 322834R1 PRIOR TO 1979. WAS INCLUDED IN KIT 3136815R99 BUT NOT THE NEWER 1967012C1.3228344R1 AND 3228348R1 WERE REMOVED FROM ALL CRANKCASE GASKET KITS IN 1980. JC CAM 02/26/01

1шт.

14

3138640R1

GASKET

- injection pump cover

1шт.

15

3055177R3

GASKET

- water pump

1шт.

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- oil pump sealing

9шт.

16

3055215R3

GASKET

- crankshaft seal retainer

1шт.

17

3055237R2

GASKET

- oil filter socket

1шт.

18

3055239R4

GASKET

- crankshaft front cover plate

1шт.

19

3138639R1

GASKET

- breather

1шт.

20

3055384R2

GASKET

- fuel injection pump

1шт.

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing M12 x 18 x 1.5

1шт.

21

3055392R3

GASKET,1.5mm Thk

- side cover

1шт.

3055952R2

O-RING

RING - oil pump sealing, loop

2шт.

22

3055961R2

GASKET

- oil pump

1шт.

23

3218792R3

GASKET

- socket oil filling

1шт.

24

3055987R3

OIL PAN GASKET SET,1.5mm Thk

- oil pan

1шт.

24

3055162R2

GASKET

- oil pan

1шт.

25

3055994R3

GASKET

- front cover

1шт.

26

3055999R3

GASKET

- water pump carrier

1шт.

3228133R93

SEAL KIT

KIT - service, crankshaft oil seal (Replaces kits 3144751R92 and 3136724R94), Includes: Parts Listed Below

1шт.

932224R1

DOWEL,M4 x 32, Oval

PIN - dowel, 4 x 32 mm

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

932652R1

DOWEL,4mm OD x 28mm L

PIN - dowel, 4 x 28 mm

1шт.

NSS

NOT SOLD SEPARAT

RING - order kit 3228133R93

1шт.

NSS

NOT SOLD SEPARAT

SEAL - order kit 3228133R93

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

- crankshaft pinion gear

1шт.
