Запчасти Case IH D-310 (5-036) - SHORT BLOCK ENGINE, CLIPS, SERVICE KITS

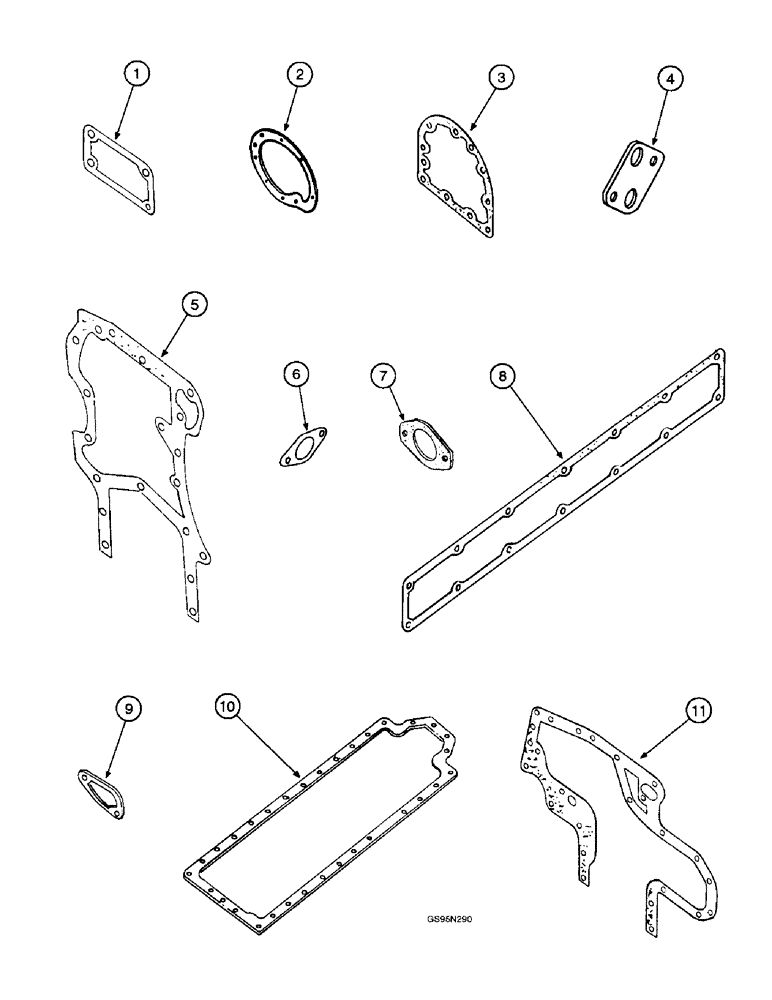

Схема запчастей Case IH D-310 - (5-036) - SHORT BLOCK ENGINE, CLIPS, SERVICE KITS
1
6
7
2
5
3
11
10
9
8
4

Артикул

Название

Примечание

Количество

3144505R92

SKELETON ENGINE

ENGINE - block, short, consists of: camshaft, connecting rods and bearing, sleeves, pistons, pins, rings and valve tappets, no longer available (See Note)

1шт.

363812R1

CLIP - cable, used with 706 and 756 tractors

1шт.

365584R1

CLIP

- cable, used with 706 and 756 tractors

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179815)

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

1шт.

3136366R1

SPACER

- used with clip 365584R1 above

1шт.

366460R1

CABLE CLIP

CLIP - harness, cable, used with 715 combines

2шт.

370740R1

CLAMP

CLIP - cable, used with 95 cotton harvesters

1шт.

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

Retaining, cable, used with 686 and hydro 86 tractors (Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

1шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

1шт.

3228432R92

GASKET

KIT - crankcase gasket, used with 616 and 622 cotton pickers and 686 and hydro 86 tractors (Replaces kits 313686R99 and 3228432R91), Includes: Parts Listed Below & Ref. 1 - 10 plus Ref. 11 - 13 on Figure 5-038

1шт.

41-3044

PLUG,Exp, 2 3/4"

1шт.

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

1шт.

E135042

SEALING RING

RING - sealing (Replaces ring 713845R1)

3шт.

713778R1

O-RING,3mm Thk x 55mm ID

- crankcase cover

1шт.

714868R1

SEALING STRIP

- sealing

2шт.

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

2шт.

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

9шт.

933610R1

SEALING RING,M14 x 18 x 1.8

10шт.

3138687R1

RING

- packing

2шт.

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL - radial

1шт.

3228348R1

RING,4.75mm Thk x 109.16mm ID

- cylinder sleeve seal (Replaces ring 3218603R1)

6шт.

3228344R1

SEALING RING,5mm Thk x 110mm ID

RING - cylinder sleeve

6шт.

1

3138640R1

GASKET

- injection pump cover

1шт.

2

3055177R3

GASKET

- water pump

1шт.

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- oil pump sealing

3шт.

3

3055215R3

GASKET

- crankshaft seal retainer

1шт.

4

3055237R2

GASKET

- oil filter socket

1шт.

5

3055239R4

GASKET

- crankshaft front cover plate

1шт.

6

3138639R1

GASKET

- breather

1шт.

7

3055384R2

GASKET

- fuel injection pump

1шт.

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

8

3055392R3

GASKET,1.5mm Thk

- side cover

1шт.

3138687R1

RING

- packing (Replaces ring 3136506R1)

1шт.

9

3055143R2

GASKET

- hydraulic pump cover

1шт.

3144042R2

GASKET

- hydraulic pump cover

1шт.

10

3055162R2

GASKET

- oil pan

1шт.

Выбрано товаров: 39
