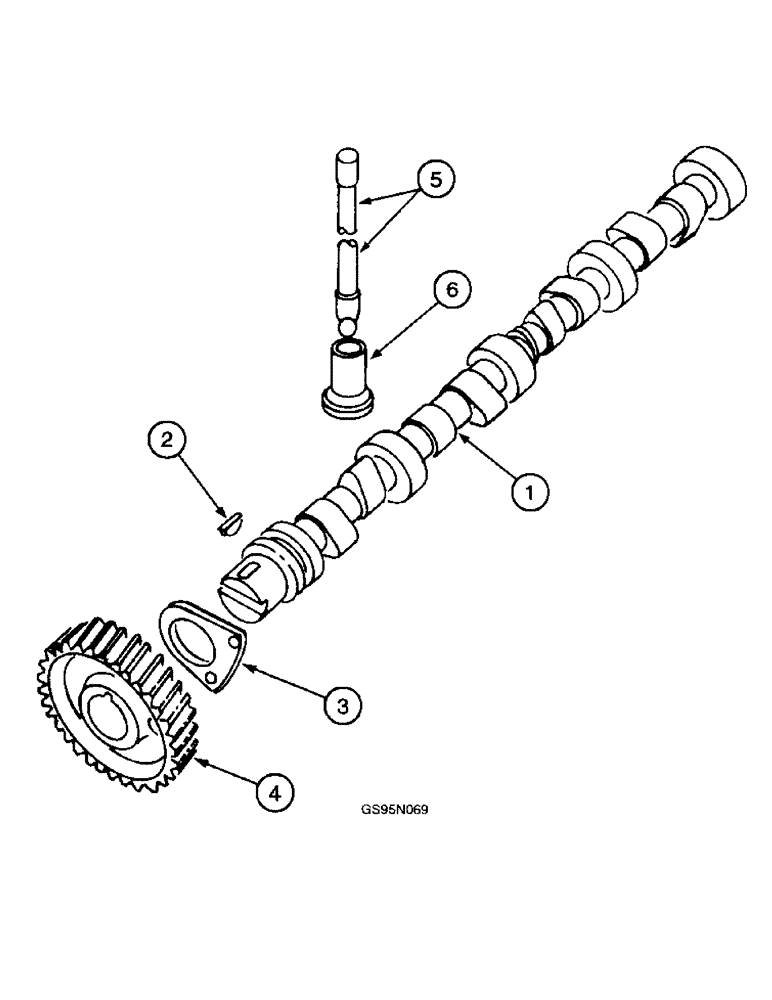

Запчасти Case IH D-310 (5-030) - CAMSHAFT AND RELATED PARTS

1

3228253R1

CAMSHAFT

- engine (Replaces camshaft 3055047R2)

1шт.

2

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

(No. 807) (Replaces keys 112139 and 124551) #A, 1/4" x 7/8", HT

1шт.

3

3218896R1

PLATE

- camshaft thrust, no longer available, order plate 3055051R2

1шт.

3

3055051R2

PLATE

- camshaft thrust

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

4

3055176R1

PINION

GEAR - camshaft, 66 teeth

1шт.

5

3144342R1

PUSH ROD

ROD - valve push (Replaces rod 3055053R91)

12шт.

5

3132394R91

SEAT, VALVE

ROD - valve push, no longer available, order rod 3144342R1

12шт.

6

3055052R1

TAPPET

- valve

12шт.
