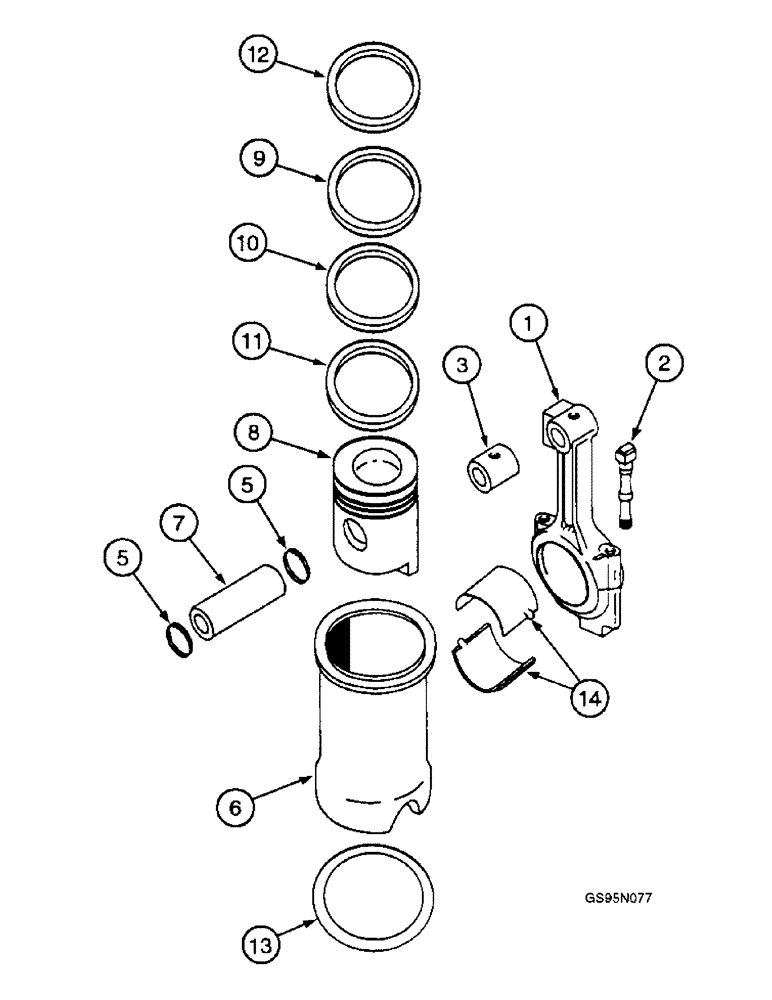

Запчасти Case IH D-310 (5-028) - CONNECTING RODS, PISTONS AND SLEEVES

1

1967029C1

CONNECTING ROD

ROD ASSEMBLY - connecting (Replaces rod assembly 3055029R24), Includes: Ref. 2 - 3

6шт.

2

3055033R11

BOLT

- Special, includes nut, No longer available, Order bolt 3055033R1 and nut 3055034R1

2шт.

3

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

- piston pin

1шт.

Engines must also be equipped with cylinder head gasket 3144182R2.

1шт.

3218758R95

SLEEVE ASSY

PISTON ASSEMBLY - piston with rectangular shaped top ring groove, used with 706 and 756 tractors and 715 combines (Replaces piston assemblies 3144260R93 and 3218758R93)

6шт.

3139586R95

PISTON & RINGS KIT

PISTON ASSEMBLY - piston with top ring groove insert or piston with keystone shaped top ring groove, 15:1 ratio, marked with number 3139588R1 used with 95 cotton harvesters, 616, 622 and 782 cotton pickers, 686 and hydro 86 tractors

6шт.

When servicing an engine that has a four ring piston with sleeves, all pistons must be replaced with piston 3139586R95.

1шт.

3228771R91

PACKAGE

PISTON ASSEMBLY - 16:1 ratio, marked with number 3228559R1, Includes: Ref. 5 - 12

1шт.

5

800-2136

SNAP RING,M36, Ext

RING - retaining (Replaces ring 933327R1)

2шт.

6

3139587R3

SLEEVE CYLINDER

SLEEVE - cylinder

1шт.

7

3055217R2

PISTON PIN

PIN - piston

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - order piston assembly

1шт.

3139594R91

PISTON RING

KIT - piston ring, chrome, for pistons with top ring groove insert or pistons with keystone-shaped top ring groove, used with 95 cotton harvesters, 616, 622 and 782 cotton pickers, 686 and hydro 86 tractors, Includes: Ref. 9 - 12

1шт.

3218416R92

PISTON RING SET

KIT - piston ring, chrome, for pistons with rectangular-shaped top ring groove, used with 715 combines, 706 and 756 tractors, Includes: Ref. 9 - 12

1шт.

3138670R92

PISTON RING SET

KIT - piston ring, chrome, for four ring piston, heavy duty and industrial, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

RING - piston compression, first

6шт.

10

NSS

NOT SOLD SEPARAT

RING - piston compression, second

6шт.

11

NSS

NOT SOLD SEPARAT

RING - piston oil

6шт.

12

NSS

NOT SOLD SEPARAT

RING - piston compression, third, for four ring pistons only

1шт.

13

3228348R1

RING,4.75mm Thk x 109.16mm ID

- cylinder sleeve, packing

6шт.

Used with all models, including 95 cotton harvester 66095 and after, 715 combines 74603 and after, 782 cotton pickers 76782 and after, 686 tractors 82107 and after, hydro 86 tractors 95616 and after (Replaces rings 3055021R2 and 3218603R1).

1шт.

13

3228344R1

SEALING RING,5mm Thk x 110mm ID

RING - cylinder sleeve, used with 95 cotton harvesters prior to 66085, 715 combines prior to 84603, 782 cotton pickers prior to 76782, 686 tractors prior to 82107, hydro 86 tractors, Serial Range: prior-95616

6шт.

14

3055351R91

BEARING ASSY

BEARING - connecting rod, standard

6шт.

14

3056834R11

BEARING ASSY

BEARING - connecting rod, 0.25 mm undersize

6шт.

14

3056879R11

BEARING ASSY

BEARING - connecting rod, 0.50 mm undersize

6шт.

14

3055781R11

BEARING ASSY

- connecting rod, 0.75 mm undersize

6шт.

3218538R1

SHIM

- cylinder sleeve, 0.05 mm thick

1шт.

3218539R1

SHIM

- cylinder sleeve, 0.1 mm thick

1шт.

3218540R1

SHIM,112.06mm ID x 118.6mm OD x 0.25mm Thk

- cylinder sleeve, 0.25 mm thick

1шт.

3218541R1

SHIM

- cylinder sleeve, 0.50 mm thick

1шт.

3218542R1

SHIM

- cylinder sleeve, 0.8 mm thick

1шт.
