Запчасти Case IH D-310 (5-022) - CRANKCASE OIL PAN, 715 COMBINES

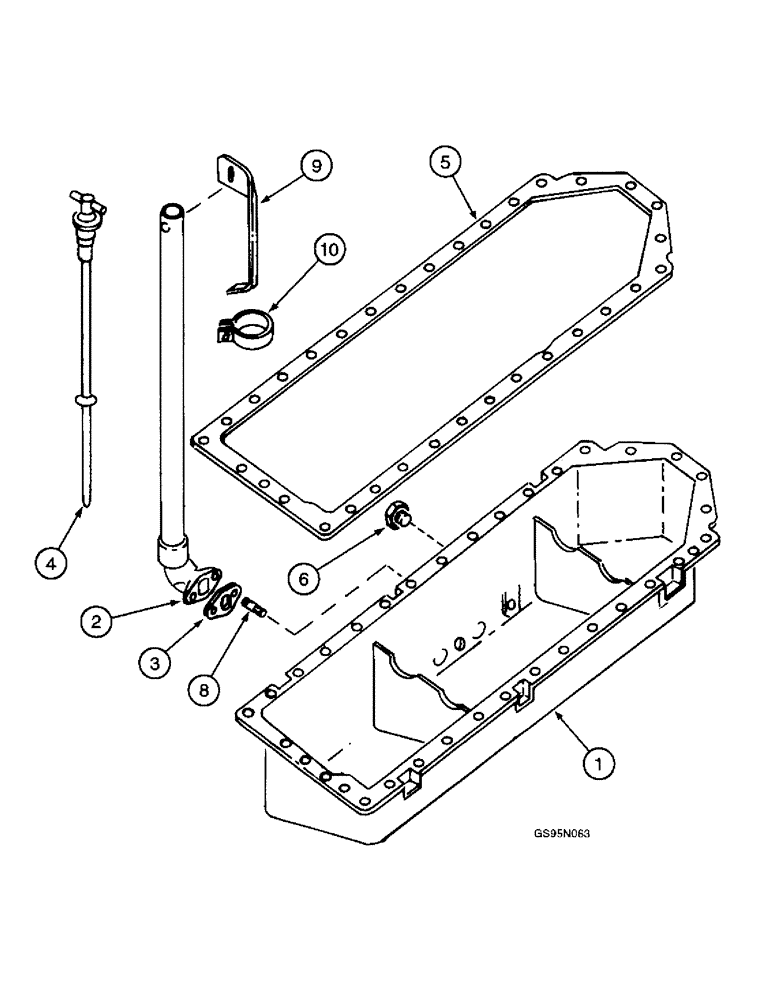

Схема запчастей Case IH D-310 - (5-022) - CRANKCASE OIL PAN, 715 COMBINES
4
8
9
10
1
3
6
5
2

Артикул

Название

Примечание

Количество

1

3218786R91

PAN, ENGINE OIL

PAN - crankcase oil (Replaces oil pan 3136008R11)

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

31шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

33шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces screw 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

2

3136009R11

TUBE,813 mm Length

- oil filling

1шт.

3146575R1

NUT

- hex seal

2шт.

3

3218792R3

GASKET

- oil filler socket tube, used with oil pans 31365008R11 and 3218786R91 (Replaces gaskets 3055984R1 and 3218792R2)

1шт.

4

3218612R1

ELECTRICAL GAUGE

GAUGE - oil level, no longer available (Replaces gauge 3136011R1)

1шт.

5

3055987R3

OIL PAN GASKET SET,1.5mm Thk

- oil pan, used with oil pan 3136008R11

1шт.

5

3055162R2

GASKET

- oil pan, used with oil pan 3218786R91

1шт.

6

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

Filler and drain (Replaces plug 3131883R2 and ring 933609R1, also replaces plug 444630) Hex Hd, 1/2"-14

1шт.

8

934771R1

STUD,M8 x 30, 8.8

- oil pan (Replaces studs 711129R1 and 933691R1)

2шт.

9

3136010R2

BRACKET

- oil filler tube

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

10

3132818R1

CLAMP

- oil filler tube, no longer available

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 109084)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

Выбрано товаров: 19
