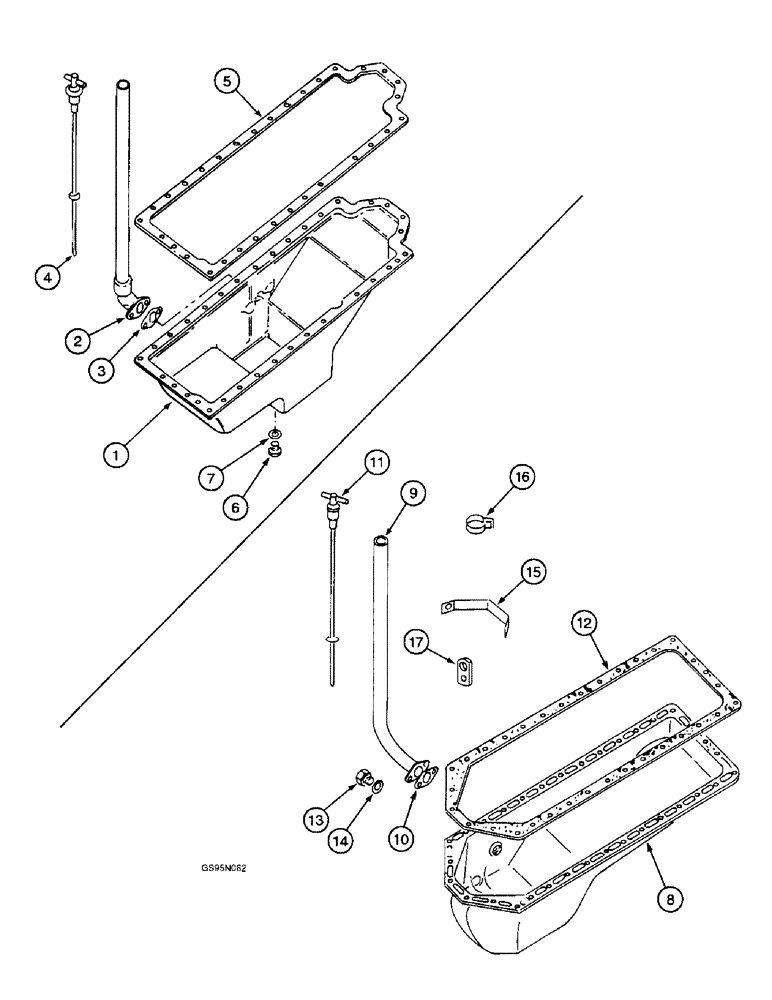

Запчасти Case IH D-310 (5-020) - CRANKCASE OIL PAN

1

3056598R1

PAN, ENGINE OIL

PAN - crankcase oil, 706, 756, 686 & HYDRO 86 Tractors, 95 Cotton Harvesters, 782 Cotton Pickers

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 179818)

25шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

32шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces screw 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch (Replaces screw 179819)

4шт.

2

3055986R11

NECK FILLER

BASE - oil filling, used with 706, 756, 686 and hydro 86 tractors, no longer available

1шт.

2

3144748R91

GAUGE ASSY.

BASE - oil filling, used with 95 cotton harvesters, 782 cotton pickers

1шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces screw 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

3

3218792R3

GASKET

- oil filler socket tube

1шт.

4

3055981R91

ELECTRICAL GAUGE

GAUGE - oil level, used with 706, 756, 686 and hydro 86 tractors

1шт.

4

3132816R1

DIPSTICK

GAUGE - oil level, used with 95 cotton harvesters, 782 cotton pickers

1шт.

5

3055987R3

OIL PAN GASKET SET,1.5mm Thk

- oil pan

1шт.

6

3059999R3

PLUG

- filler and drain (Replaces plugs 3021174R1 and 3131883R2)

1шт.

7

1964123C1

SEALING RING,M23 x 31 x 2

RING - sealing (Replaces ring 933609R1)

1шт.

8

3055136R31

PAN

- crankcase oil, 616 & 622 Cotton Pickers

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

33шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces screw 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179817)

31шт.

9

3144918R91

TUBE - oil filler, will work for 3055720R11 by also ordering strut 3144919R1, item 8, and clamp 787963R1, item 9

1шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

(Replaces nut 114503) Jam, 3/8"-16, G5

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch (Replaces bolt 179795)

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

1шт.

10

3055318R2

GASKET

- oil filler tube (Replaces gasket 3055318R1)

1шт.

11

3055719R91

INDICATOR STRIP

GAUGE - oil level

1шт.

12

3055162R2

GASKET

- oil pan

1шт.

13

3059999R3

PLUG

- drain (Replaces plugs 3021174R1 and 3131883R2)

1шт.

14

1964123C1

SEALING RING,M23 x 31 x 2

RING - sealing (Replaces ring 933609R1)

1шт.

15

3144919R1

SUPPORT

STRUT - oil filler tube

1шт.

16

3132818R1

CLAMP

- oil pan, no longer available (Replaces clamp 787963R1)

1шт.

17

3144153R1

BAR

- oil pan

1шт.
