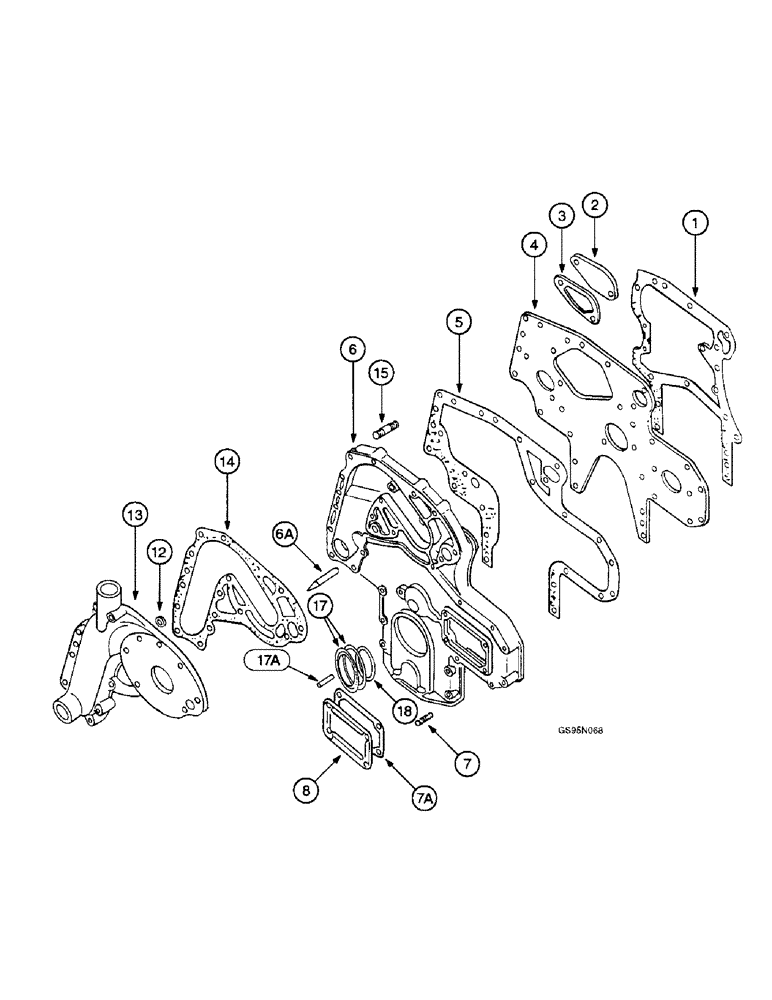

Запчасти Case IH D-310 (5-018) - CRANKCASE FRONT COVER, 616 AND 622 COTTON PICKERS

1

3055239R4

GASKET

- crankcase front cover plate

1шт.

2

3055142R1

COVER

- hydraulic pump

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

1шт.

446641

BOLT,Hex, 3/8" - 16 x 3 5/8", Gr 2

SCREW - hex, 3/8 NC x 5/8 inch, no longer available

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

3

3055143R2

GASKET

- hydraulic pump cover

1шт.

4

3055064R11

PLATE

- crankcase front

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

7шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

7шт.

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

- hex, 3/8 inch PT (Replaces plug 20990R1)

1шт.

5

3055240R2

GASKET

- crankcase front cover, used with cover 3056854R43

1шт.

5

3144072R4

GASKET

- crankcase front cover, used with cover 3056854R51 and 3138768R91, Includes: Ref. 6A - 7

1шт.

6

3138768R92

COVER

ASSEMBLY - crankcase front (Replaces cover assemblies 3056854R43 and 3138768R91)

1шт.

6a

3056856R1

DOWEL

POINTER - timing

1шт.

7

3055242R1

STUD

- crankcase front cover

4шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

7шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

3шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces nut 102635) 3/8"-16, G5

3шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch (Replaces screw 179827)

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Replaces screw 179826) Hex, 5/16"-18 x 2", G5

4шт.

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

(Replaces screw 179825) Hex, 5/16"-18 x 2", G8

2шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces bolt 179847) Hex, 3/8"-16 x 2", G5

3шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces screw 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

3шт.

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

(Replaces plug 444630) Hex Hd, 1/2"-14

1шт.

7a

3138640R1

GASKET

- injection pump cover (Replaces gasket 3055141R1)

1шт.

8

3055140R1

COVER

- injection pump

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

95-81067

WASHER,0.34" ID x 0.56" OD x 0.06" Thk

- flat, 11/32 x 9/16 x 1/16 inch (Replaces washer 131402H)

4шт.

12

3055246R2

GASKET

- water channel

1шт.

13

3136765R1

CHANNEL

- water

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 179818)

3шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Replaces screw 179826) Hex, 5/16"-18 x 2", G5

1шт.

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch (Replaces screw 426444)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

3шт.

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch (Replaces bolt 186270)

1шт.

14

3136766R3

GASKET

- water channel

1шт.

15

3055243R1

STUD

- crankcase front cover

4шт.

3228133R93

SEAL KIT

SEAL ASSEMBLY - crankshaft front oil (Replaces seal 3136724R94), Includes: Ref. 17, 17A, 18

1шт.

17

NSS

NOT SOLD SEPARAT

RING ASSEMBLY - distance, order seal assembly 3228133R93, Includes: Ref. 17A

1шт.

17a

932681R1

DOWEL,4mm OD x 24mm L

Pin (5/32 x 15/16"), if used M4 x 24, Oval

1шт.

17a

932224R1

DOWEL,M4 x 32, Oval

PIN - dowel, 5/32 x 1-1/4 inch, if used

1шт.

17a

932652R1

DOWEL,4mm OD x 28mm L

PIN - dowel, 5/32 x 1-7/64 inch, if used

1шт.

18

713778R1

O-RING,3mm Thk x 55mm ID

- crankcase front cover

1шт.
