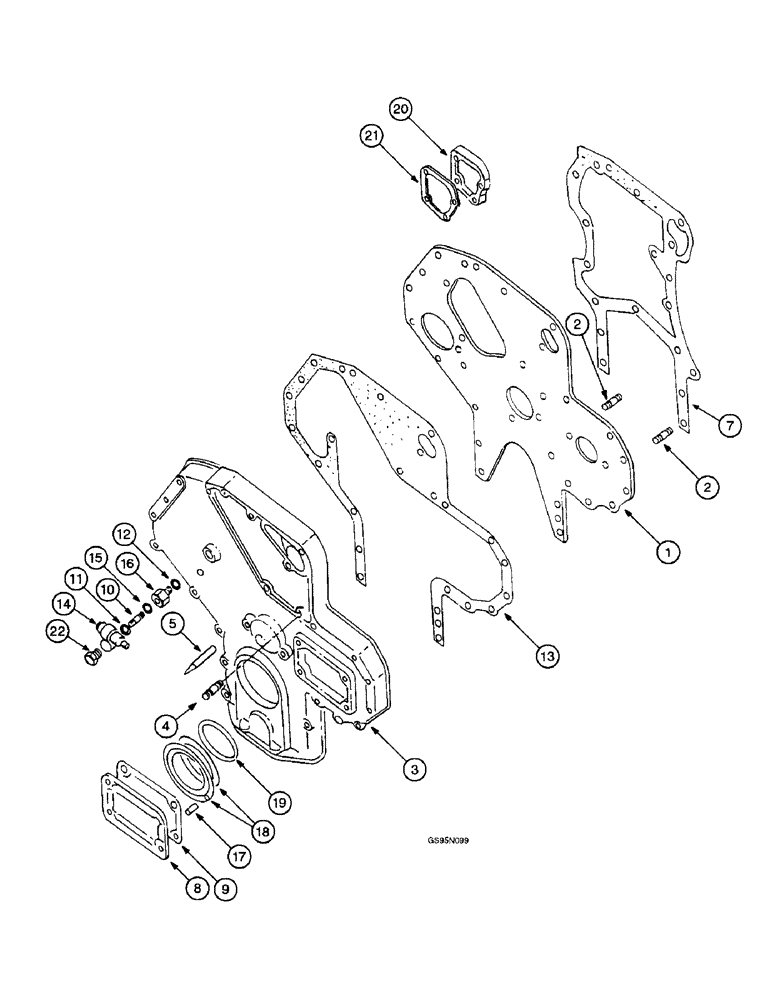

Запчасти Case IH D-310 (5-014) - CRANKCASE FRONT COVER & RELATED PARTS, 706/756/686/HYDRO 86/95 COTTON HARVESTERS/715 COMBINES/782

1

3132012R11

PLATE

ASSEMBLY - crankcase front, used with all machines except 715 combines, no longer available, Includes: Ref. 2

1шт.

1

3055996R11

PLATE ASSY.

PLATE ASSEMBLY - crankcase front, used with 715 combines, Includes: Ref. 2

1шт.

2

3055065R1

STUD

- front plate, used with all machines except 95 cotton harvesters

2шт.

2

3055242R1

STUD

- front plate, used with 95 cotton harvesters

2шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

7шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

7шт.

3132013R1

SHIM

- crankcase plate assembly, no longer available

2шт.

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

- hex, 3/8 inch PT (Replaces plug 20990R1)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

3

3055995R16

COVER

ASSEMBLY - crankcase front, used with 706 tractors, 756 tractors and 715 combines (Replaces cover assembly 787591R91), Includes: Ref. 4 - 5

1шт.

3

3144746R91

COVER

ASSEMBLY - crankcase front, used with 95 cotton harvesters, Includes: Ref. 4 - 5

1шт.

3

3139160R91

COVER

ASSEMBLY - crankcase front, used with 782 cotton pickers, Includes: Ref. 4 - 5

1шт.

3

3218960R91

COVER

ASSEMBLY - crankcase front, used with 686 and hydro 86 tractors, Includes: Ref. 4 - 5

1шт.

4

3055242R1

STUD

- crankcase cover

4шт.

5

3056856R1

DOWEL

POINTER - timing, used with all machines except 686 and hydro 86 tractors

1шт.

5

3136912R1

INDICATOR STRIP

POINTER - timing, used with 686 and hydro 86 tractors, no longer available

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Replaces screw 179826) Hex, 5/16"-18 x 2", G5

9шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch (Replaces screw 179817)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

5шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Cone (Replaces washer 933570R1) M8.2 ID x 16 OD x .9 Thk

7шт.

7

3055239R4

GASKET

- crankshaft front cover plate

1шт.

8

3055140R1

COVER

- injection pump

1шт.

95-81067

WASHER,0.34" ID x 0.56" OD x 0.06" Thk

- flat, 11/32 x 9/16 x 1/16 inch (Replaces washer 131402H)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

9

3138640R1

GASKET

- injection pump cover

1шт.

10

3056986R1

SUPPORT

COUPLING - drive, tachometer drive, used with 706, 686 and hydro 86 tractors

1шт.

11

3132116R1

NUT

- hex, 18 mm, used with 706, 756, 686 and hydro 86 tractors

1шт.

12

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Packing, used with 706, 756, 686 and hydro 86 tractors M18 x 24 x 1.5

1шт.

13

3055994R3

GASKET

- crankcase front cover

1шт.

14

3055982R93

DRIVE, ANGLE

ELBOW - drive angle, tachometer, used with 706, 756, 686 and hydro 86 tractors

1шт.

15

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL - radial, used with 706, 756, 686 and hydro 86 tractors

1шт.

16

3055983R1

REDUCER FITTING

SPACER - drive angle, used with 706, 756, 686 and hydro 86 tractors

1шт.

3228133R93

SEAL KIT

KIT - crankcase front oil seal (Replaces kits 3144751R92 and 3136724R94), Includes: Ref. 17 - 19

1шт.

17

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

17

932652R1

DOWEL,4mm OD x 28mm L

PIN - dowel, 4 x 28 mm

1шт.

17

932224R1

DOWEL,M4 x 32, Oval

PIN - dowel, 4 x 32 mm

1шт.

18

NSS

NOT SOLD SEPARAT

RING - distance, order kit 3228133R93

1шт.

19

713778R1

O-RING,3mm Thk x 55mm ID

- crankcase front oil seal

1шт.

20

3136049R1

COVER ASSY

COVER - plate, used with 715 combines (Replaces cover 3132540R1)

1шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch (Replaces screw 179828)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

21

3132541R2

GASKET

- cover plate, used with 715 combines

1шт.

22

933223R1

PLUG,Hex, M18 x 1.5

- for use without tachometer drive

1шт.
