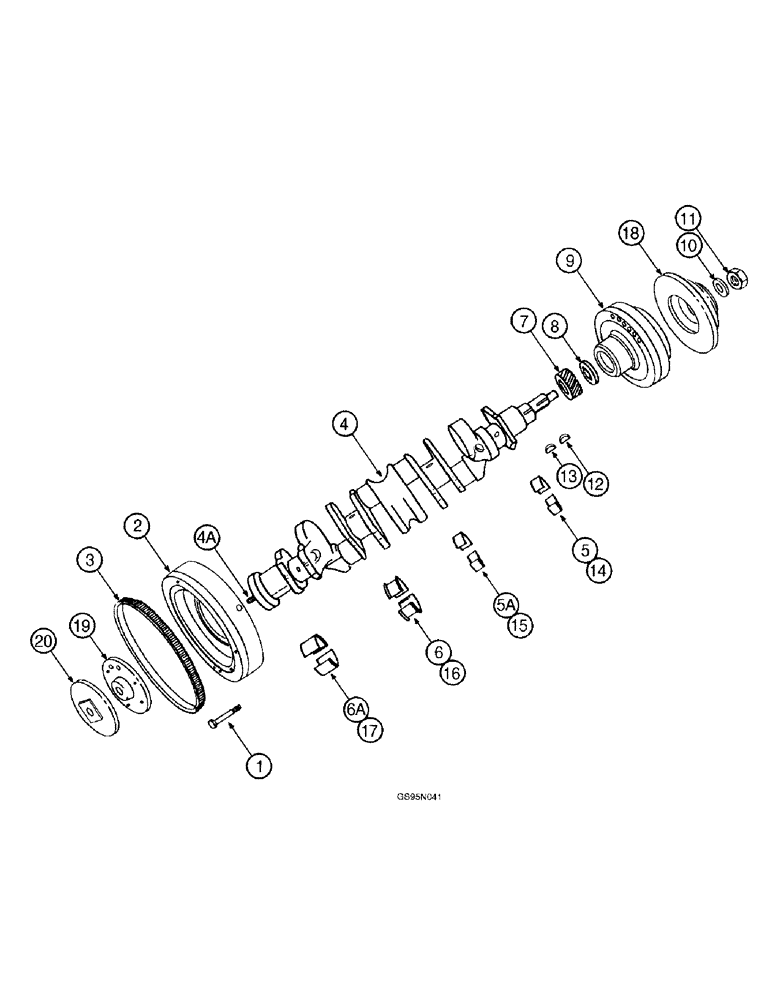

Запчасти Case IH D-301 (3-06) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

332136R1

BOLT (SPREADER),7/16" - 20 x 2 1/4"

BOLT - flywheel mounting

6шт.

2

323751R11

FLYWHEEL ASSEMBLY - engine, Includes: Ref. 3

1шт.

3

1818739C1

GEAR

- flywheel ring (Replaces gear 304439R1)

1шт.

735209C91

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - standard, remanufactured (North America only), component parts do not apply to the remanufactured assembly, no longer available

1шт.

1928163C1

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly

1шт.

320188R93

CRANKSHAFT

ASSEMBLY - standard, new, Includes: Ref. 4 - 6A, no longer available

1шт.

4

NSS

NOT SOLD SEPARAT

CRANKSHAFT - engine, standard

1шт.

4a

82970R1

STUD

PIN - flywheel to crankshaft dowel

1шт.

367275R91

KIT

BEARING SET - crankshaft, standard, engine serial numbers prior to 3563, Includes: Ref. 5 - 6A, no longer available, order components

1шт.

382357R91

CRANKSHAFT BEARING

BEARING SET - crankshaft, standard, engine serial number 3563 and after, Includes: Ref. 5 - 6A, no longer available, order components

1шт.

5

367276R91

BEARING LINER

BEARING - crankshaft front, standard, two halves

1шт.

5a

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

- crankshaft intermediate, standard, two halves

1шт.

6

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

- crankshaft intermediate, standard, two halves, used with bearing set 367275R91

1шт.

6

332267R91

BEARING SET

BEARING - crankshaft intermediate, standard, two halves, used with bearing set 382357R91

1шт.

6a

367285R91

BEARING

- crankshaft rear, standard, two halves

1шт.

7

367272R1

PINION

GEAR - crankshaft

1шт.

8

71763R2

DEFLECTOR

SLINGER - crankshaft oil

1шт.

372203R2

PULLEY

DAMPER ASSEMBLY - vibration, engine serial numbers prior to 5680, Includes: Ref. 9, no longer available, order damper 338952R91

1шт.

9

338952R91

PULLEY

DAMPER - vibration

1шт.

317549R91

OIL SEAL,58.22mm ID x 85.27mm OD x 12.27mm Thk

- oil

1шт.

9

338949R91

DAMPER

- vibration, engine serial number 5680 and after, no longer available

1шт.

10

70109R1

WASHER

- starting crank nut, no longer available

1шт.

11

425-1516

JAM NUT,Jam, 1"-14, G5

- starting crank, hex jam, 1 inch NF (Replaces nut 219755)

1шт.

12

126-136

WOODRUFF KEY,#23, 5/16" x 1 3/8", HT

KEY - Woodruff, 5/16 x 1-3/8 inch, No. 23, fan drive pulley (Replaces key 117994)

1шт.

13

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

Crankshaft gear (Replaces key 124552) #13, 3/16" x 1", HT

1шт.

14

367300R91

CRANKSHAFT BEARING

BEARING - crankshaft front, 0.002 undersize, two halves

1шт.

14

376670R91

BEARING ASSY

BEARING - crankshaft front, 0.010 undersize, two halves

1шт.

14

376683R91

BEARING ASSY

BEARING - crankshaft front, 0.020 undersize, two halves

1шт.

14

367288R91

BEARING ASSY

- crankshaft front, 0.030 undersize, two halves

1шт.

15

367303R91

BEARING ASSY

BEARING - crankshaft intermediate, 0.002 undersize, two halves

1шт.

15

376673R91

BEARING ASSY

BEARING - crankshaft intermediate, 0.010 undersize, two halves

1шт.

15

376686R91

BEARING ASSY

BEARING - crankshaft intermediate, 0.020 undersize, two halves

1шт.

15

367291R91

BEARING

- crankshaft intermediate, 0.030 undersize, two halves

1шт.

16

367306R91

BEARING ASSY

BEARING - crankshaft intermediate rear, 0.002 undersize, two halves, with engine serial numbers, Serial Range: prior-3563

1шт.

16

332273R91

BEARING SET

- crankshaft intermediate rear, 0.002 undersize, two halves, with engine serial number 3563 and after

1шт.

16

376676R91

JOURNAL

BEARING - crankshaft intermediate rear, 0.010 undersize, two halves, machines with engine serial numbers, Serial Range: prior-3563

1шт.

16

332276R91

BEARING SET

- crankshaft intermediate rear, 0.010 undersize, two halves, with engine serial number 3563 and after

1шт.

16

376689R91

BEARING ASSY

BEARING - crankshaft intermediate rear, 0.020 undersize, two halves, with engine serial numbers, Serial Range: prior-3563

1шт.

16

332279R91

BEARING SET

- crankshaft intermediate rear, 0.020 undersize, two halves, with engine serial number 3563 and after

1шт.

16

367294R91

BEARING ASSY

- crankshaft intermediate rear, 0.030 undersize, two halves, with engine serial numbers, Serial Range: prior-3563

1шт.

16

332270R91

BEARING SET

- crankshaft intermediate rear, undersize, two halves, engine serial number 3563 and after

1шт.

17

367309R91

BEARING ASSY

- crankshaft rear, 0.002 undersize, two halves

1шт.

17

376679R91

BEARING ASSY

BEARING - crankshaft rear, 0.010 undersize, two halves

1шт.

17

376692R91

BEARING ASSY

BEARING - crankshaft rear, 0.020 undersize, two halves

1шт.

17

367297R91

BEARING ASSY

- crankshaft rear, 0.030 undersize, two halves

1шт.

18

601753C1

PULLEY - fan drive, all machines with engine serial number 5680 and after except 453 and 715 combines, no longer available

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- hex, 3/8 NC x 1-7/8 inch (Replaces screw 179846)

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

18

533839R1

PULLEY - fan drive, used with 453 and 715 combines, no longer available

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces bolt 180130) Hex, 3/8"-16 x 2", G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

18

57224C1

PULLEY - fan drive, used with 453 combines, no longer available

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces bolt 180130) Hex, 3/8"-16 x 2", G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

19

377944R1

FLANGE

- drive shaft, used with all machines with engine serial number 5680 and after and 715 combines with belt drive

1шт.

20

389667R11

HUB

- pump drive shaft, used with 403, 453, 503 and 715 combines with hydrostatic transmission

1шт.
